Vibratory Compactor Set
STANDARDS : EN 12697-32, 12697-9, 12697-10
Vibratory Compactor is used to prepare test specimens of bituminous mixtures by using the vibratory compaction technique.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-ASFVCTS | Vibratory Compactor Set, 220-240 V 50 Hz |
| PRS-ASFSMO | Split Mould and Base Plate |
Vibratory Compactor Set
STANDARDS : EN 12697-32, 12697-9, 12697-10
Vibratory Compactor Set is used to prepare test specimens of bituminous mixtures by using the vibratory compaction technique.

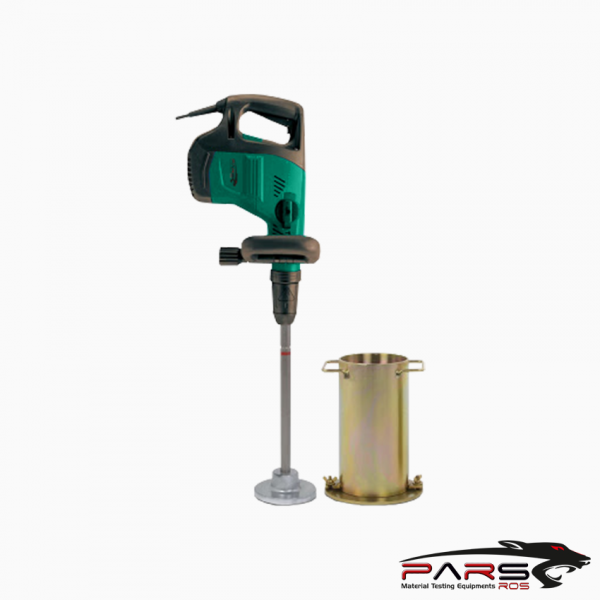

Set consists of a Vibrating Hammer (220-240 V 50 Hz), Supporting Frame, 102 mm dia. Small and 145 mm. dia.
Large Tamping Foots and 300 mm Shank.
Split Mould is split verticially on one side, attached to the base plate with clamp. Plated against corrosion.
*** Split mould and base plate should be ordered separately.
The set is also used for compaction of proctor and CBR soil specimens.
*** Vibratory Compactor Set is supplied complete with;
Vibrating Hammer
Supporting Frame
Small Tamping Foot, 102 mm dia.
Large Tamping Foot, 145 mm dia.
Shank, 300 mm, long
| Boyutlar | 300x200x750 mm |
| Ağırlık (yaklaşık) | 85 kg |
| Güç | 1150 W |
