- TECHNICAL SPECIFICATIONS
|PRS–ASF0105||Core Drilling Machine on Trailer|
|PRS–ASFCB30||Coring Bit for Asphalt 50 mm dia. x 400 mm length|
|PRS–ASFCB32||Coring Bit for Asphalt 75 mm dia. x 400 mm length|
|PRS–ASFCB34||Coring Bit for Asphalt 100 mm dia. x 400 mm length|
|PRS–ASFCB36||Coring Bit for Asphalt 150 mm dia. x 400 mm length|

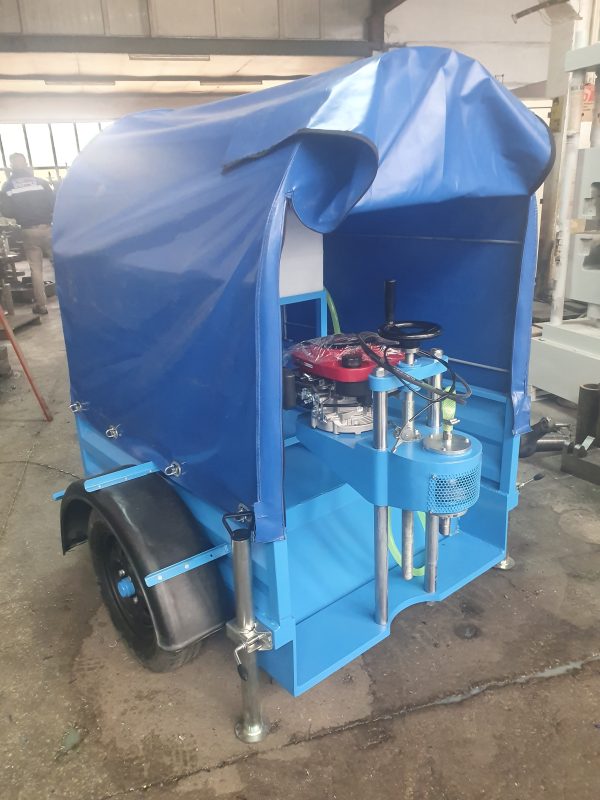

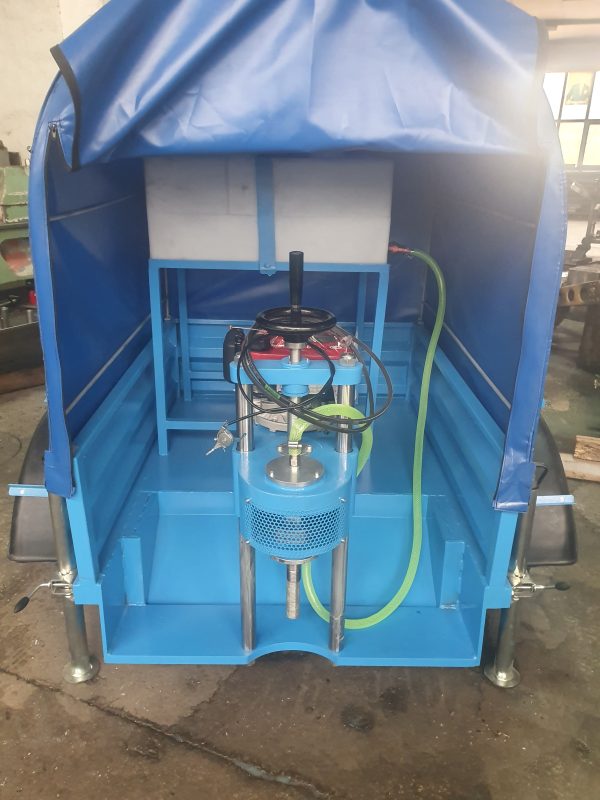

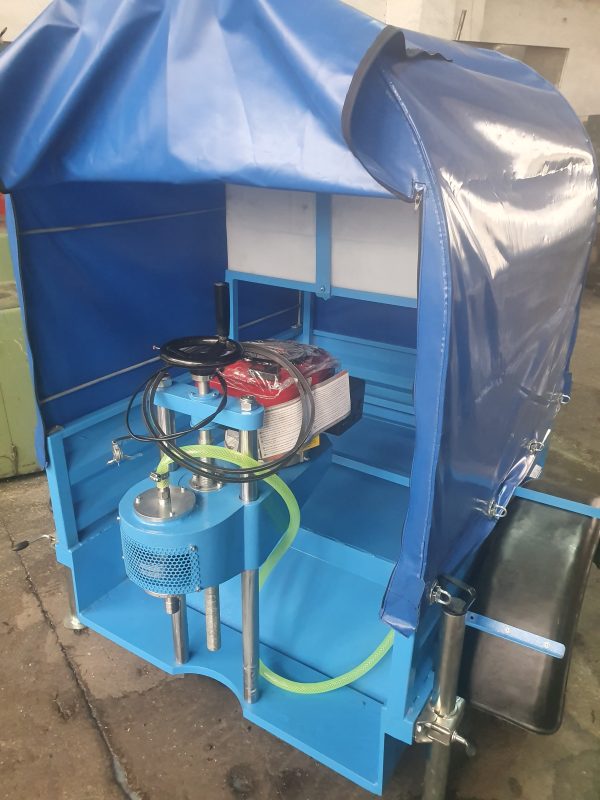

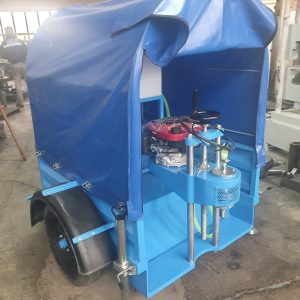

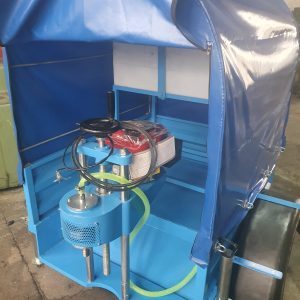

Core Drilling Machine on Trailer
STANDARDS : EN 12697-27
Portable Core Drilling Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials.
The machine comprises a vertical support column which carries the drill head/ motor assembly. The motor assembly comprises a 6.5 hp petrol engine.
A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on
The drilling machine is installed in a trailer for fast and precise sampling on-site. 100 litre water tank provides continuous lubrication during drilling to save time.
The two-wheeler taut liner trailer is fully equipped with brake lamps/hazard lashers/retro reflectors conforming to road traffic regulations.
The trailer is designed with a space to be used for storing the core samples. The two fixing legs are robustly designed for improved stabilization.
*** Coring Bits should be ordered separately.
|Weight (approx.)||300 kg|
