Centrifuge Extractor
STANDARDS : EN 12697-1 Clause B.1.5; AASHTO T164 A; ASTM D2172 A
Extractors are used for the determination of the bitumen percentage in bituminous mixtures.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
Product Code |
Product Description |
PRS-ASFRE60 | Centrifuge Extractor 1500 g, 220-240 V 50-60 Hz |
PRS-ASFRE60/110 | Centrifuge Extractor 1500 g, 110 V 60 Hz |

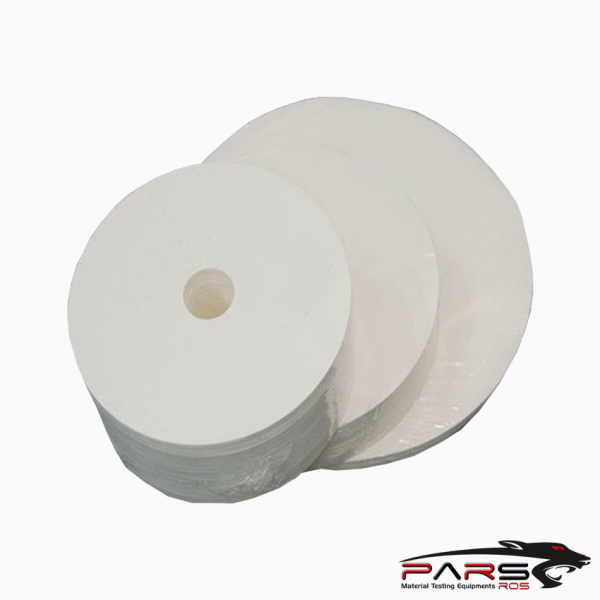

PRS-ASFRE61 | Filter Paper 250 mm Outer dia. 45 mm Inner dia. (100 pcs / Pack) |
PRS-ASFRE62 | Rotating Bowl and Cover |
PRS-ASFRE65 | Centrifuge Extractor 3000 g capacity, 220-240 V 50-60 Hz |
PRS-ASFRE65/110 | Centrifuge Extractor 3000 g capacity, 110 V 60 Hz |
PRS-ASFRE66 | Filter Paper 295 mm Outer dia. 45 mm Inner dia. (100 pcs / Pack) |
PRS-ASFRE67 | Rotating Bowl and Cover |

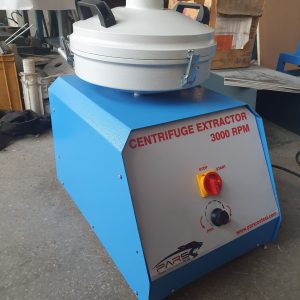

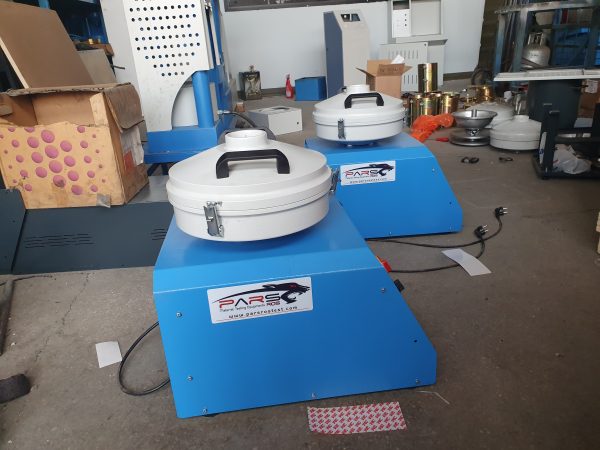

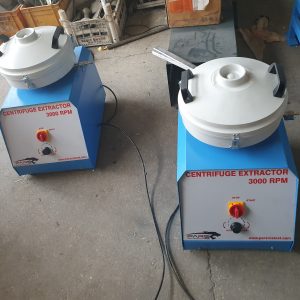

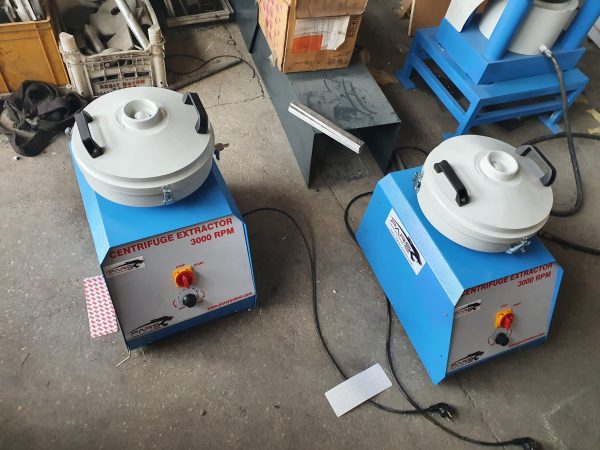

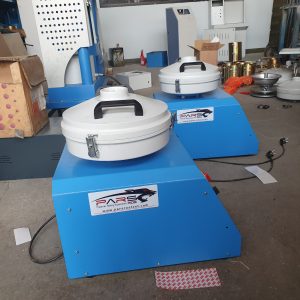

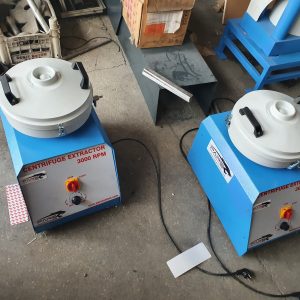

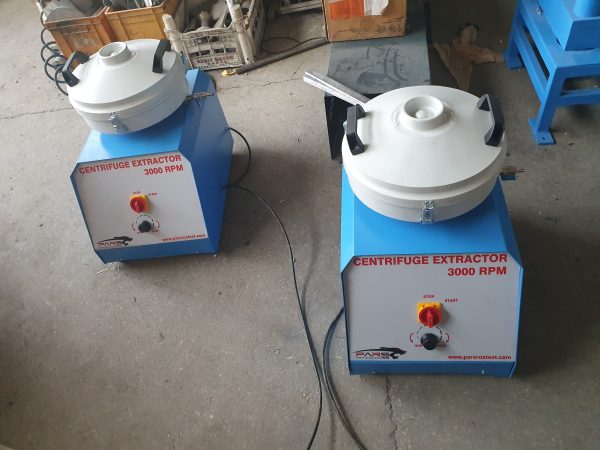

Centrifuge Extractor
STANDARDS : EN 12697-1 Clause B.1.5; AASHTO T164 A; ASTM D2172 A
Centrifuge Extractors are used for the determination of the bitumen percentage in bituminous mixtures.
All models comprise a removable precision-machined rotor bowl housed in a cylindrical aluminum box.
The bowl is driven by an electric motor fitted with an AC drive (inverter) with the double function of speed control up to 3600 rpm regardless of the frequency
(50 or 60 Hz) and electrical breaking.
The centrifuge can be set for the automatic speed ramp up to 3600 rpm and will stop in 10-15 seconds.
The cover is precisely machined and fitted with a solvent resistant gasket to avoid leakages.

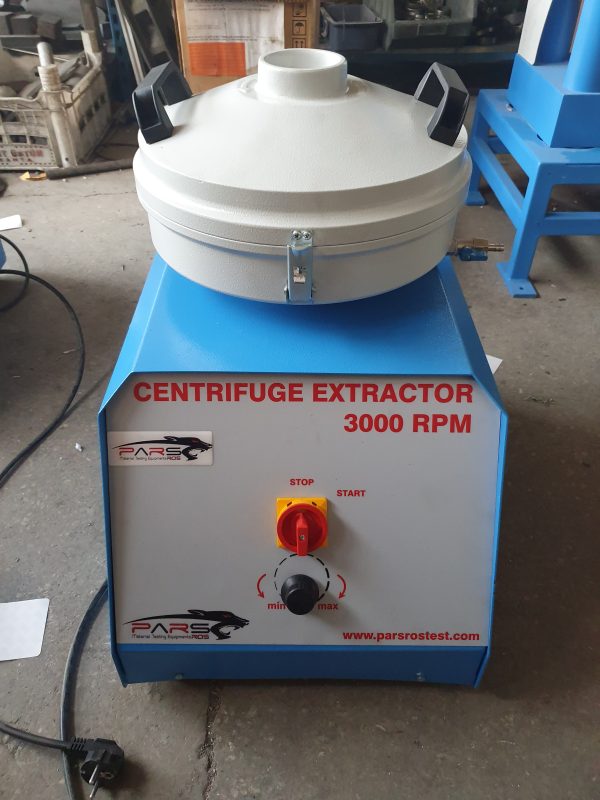

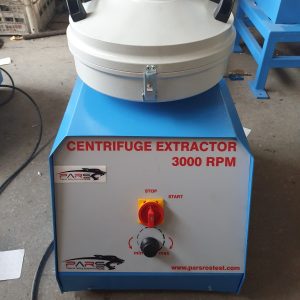

The control panel includes: Start/Stop button and speed control knob.
*** Extractor is supplied complete with;
Bowl and Cover,
Filter Paper – 100 pcs.
Dimensions | 450x650x550 mm |
Weight (approx.) | 50 kg (for both models) |
Power | 370W (for both models) |
