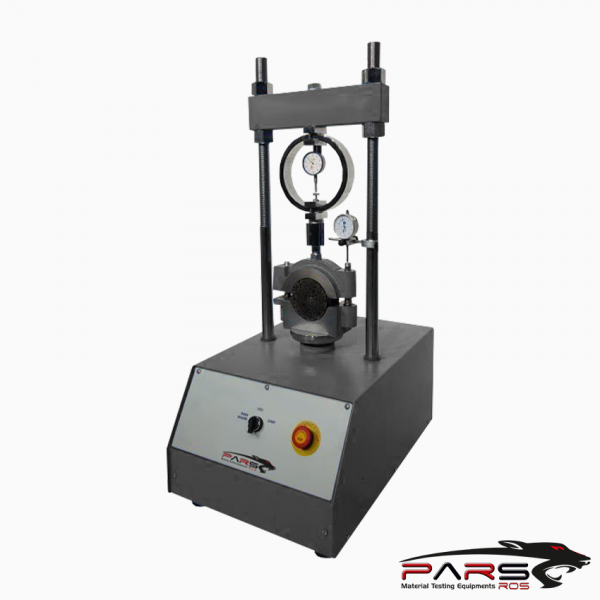

Marshall Stability Test Machine with Proving Ring

Description

Product Code	Product Description
PRS-ASFMST12	Marshall Stability Test Machine with Proving Ring, 50 kN, 220-240 V 50-60 Hz
PRS-ASFMST12/110	Marshall Stability Test Machine with Proving Ring, 50 kN, 110 V 60 Hz
PRS-AAMSTM41	Breaking Head (Stability Mould) 4”
PRS-AAMSTM42	Breaking Head (Stability Mould) 6”
PRS-ASFDDG25	Digital Dial Gauge with Bracket,25×0.01 mm
PRS-ASFITSD13	Indirect Tensile Splitting Device for Compacted Bituminous Samples 100 mm (4”) dia.



Marshall Stability Test Machine with Proving Ring

STANDARDS : EN 12697-34, 12697-23, 12697-12 (Method A); ASTM D1559, D5581, D 6927; AASHTO T245

50 kN capacity Marshall Stability Test Machine with Proving Ring is used to determine the maximum load and flow values of bituminous mixtures.

The PRS-ASFMST12 comprises a robust and compact two column frame with adjustable upper cross beam.

The unit is a bench mounted compression frame with motor and worm gear housed within the base unit.

The mechanical jack raises the lower platen at a constant speed of 50.8 mm/min as required in the relevant standard.

For safety, the up and down travel of the lower platen movement is limited by limit switches. Rapid adjustment of the platen is also provided using the control buttons

on the front panel of the machine.

The measuring system consists of a 50 kN capacity load ring, digital flow meter (dial gauge) fitted to the breaking head.

The PRS-ASFMST12 Marshall Stability Machine is also suitable for testing 6” dia. specimens (152.4 mm) conforming to ASTM D5581.

The machine can be hand operated by a lateral hand wheel for calibration  purposes; the hand wheel is supplied complete with the machine.

---

*** PRS-ASFMST12 Marshall Stability Test Machine is supplied complete with;

Load Ring, 50 kN

Digital Dial Gauge with Bracket, 25×0.01 mm

Hand Wheel for Manual Control

Breaking Head, 4”

Dimensions	550x700x1200 mm
Weight (approx.)	103 kg
Power	1100 W
