- TECHNICAL SPECIFICATIONS
|Product Code||Product Description|
|PRS-ASFVP078||Vialit Plate (Adhesion Test) Apparatus|
|PRS-ASFVP078/01||Steel Ball, 512gr,|
|PRS-ASFVP078/03||Mechanic Aggregate Deployment , 100 chippings|

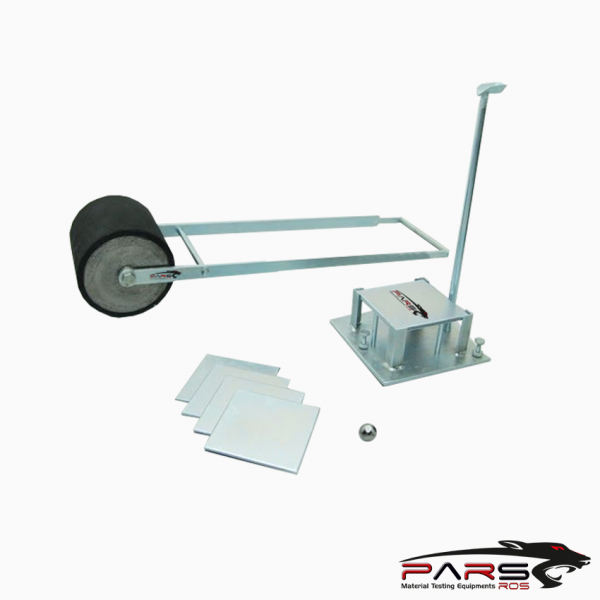

Vialit Plate (Adhesion Test) Apparatus
STANDARDS : EN 12272-3; NF P98-274-1
Vialit Plate Apparatus is used to assess the adhesion property of aggregates to bitumen.
Supplied complete with a metal basement with three vertical pointed rods to hold the flat steel plate, 50 cm. high vertical rod with a slot at the upper end for the steel
ball to drop, a 512 g steel ball, 6 metal test plates and a hand operated rubber wheel roller.
*** The mechanic aggregate deployment should be ordered seperately
The test plate, coated by bitumen on one face and spread with the aggregate chippings in a standard way is rolled using the roller and thenplaced on the
three-point support base.
The steel ball drops three times from the slot, and the chippings that become loose after the three impacts are counted and checked.
*** The Vialit Plate (Adhesion Test) Apparatus is supplied complete with;
Flat Steel Plates, 6 pcs.
Steel Ball, 512 g
Rubber Wheel Roller, hand operated
|Weight (approx.)||45 kg|
