Core Drilling Machine
STANDARDS : EN 12697-27
It is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS–ASF0101 | Core Drilling Machine |

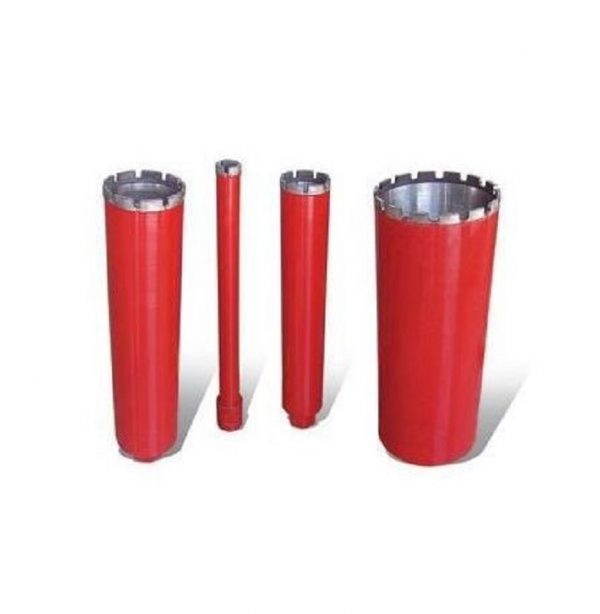

| PRS–ASFCB30 | Coring Bit for Asphalt 50 mm dia. x 400 mm length |
| PRS–ASFCB32 | Coring Bit for Asphalt 75 mm dia. x 400 mm length |
| PRS–ASFCB34 | Coring Bit for Asphalt 100 mm dia. x 400 mm length |
| PRS–ASFCB36 | Coring Bit for Asphalt 150 mm dia. x 400 mm length |
Core Drilling Machine
STANDARDS : EN 12697-27
Core Drilling Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials.
The machine comprises a vertical support column which carries the drill head/motor assembly.
The motor assembly comprises a 6,5 Hp petrol engine.
A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed.
A water spraying assembly is mounted on the machine.
The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.
*** Coring Bits should be ordered separately.
| Dimensions | 500x900x1100 mm |
| Weight (approx.) | 95 kg |
| Power | 6 ,5 Hp |
