Bitumen Penetrometer

Semi-Automatic Digital Bitumen Penetrometer

STANDARDS : EN 1426; ASTM D5; AASHTO T49

Semi-Automatic Digital Penetrometer is used to determine the penetration of bituminous samples under constant load, time and temperature.

Please Contact With Us For More Information





Description

Product Code

Product Description

PRS-ASFSADBP40 Semi-Automatic Digital Bitumen Penetrometer 220-240 V 50-60 Hz
PRS-ASFSADBP40/110 Semi-Automatic Digital Bitumen Penetrometer 110 V 60 Hz
PRS-ASFSADBP41 Transfer Dish
PRS-ASFSADBP42 Sample Cup, Ø 55×35 mm, stainless steel
PRS-ASFSADBP43 Sample Cup, Ø 70×45 mm, stainless steel
PRS-ASFSADBP44 Penetration Needle, 2,5 g
PRS-ASFSADBP60 One-Quarter Scale Cone and Shaft, ASTM D 1403 and D 1831,
PRS-ASFSADBP61 One-Half Scale Cone and Shaft, ASTM D 1403 and D 1831,
PRS-ASFSADBP62 Penetrometer Cone ASTM D 217 (Optional Type) and ASTM D 937, Brass
PRS-ASFSADBP63 Resilience Ball Penetration Tool. ASTM D5329,



Semi-Automatic Digital Bitumen Penetrometer

STANDARDS : EN 1426; ASTM D5; AASHTO T49

Semi-Automatic Digital Bitumen Penetrometer is used to determine the penetration of bituminous samples under constant load, time and temperature.

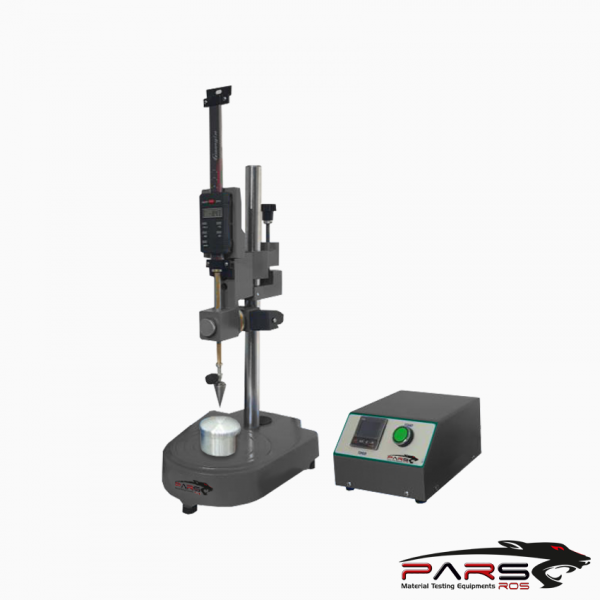

The Penetrometer consists of a cast iron base with coarse and fine levelling screws, a digital penetration measurement gauge 0.01 mm readability and a penetration

timer unit.

Start button of the penetration timer unit is used to release the plunger fitted with the needle to start the 5 seconds test.

*** A water bath (25±0,1 C) and a thermometer ( IP38, ASTM 17C or 63C ) required for the test should be ordered separately.


*** Semi-Automatic Digital Bitumen Penetrometer is supplied complete with;

Penetration Needle, 2,5g, 1 pieces

Transfer Dish

Sample Cup Ø 55×35 mm, 3 pieces, stainless steel
