Marshall Water Bath

Description

Product Code	Product Description
PRS-ASMWB00128	Marshall Water Bath, 15 L, 220-240V 50/60 Hz
PRS-ASMWB00130	Marshall Water Bath, 30 L, 220-240V 50/60 Hz
PRS-ASMWB00132	Marshall Water Bath, 48 L, 220-240V 50/60 Hz
PRS-ASMWB00128-1	Marshall Water Bath with Cooler Unit, 15 L, 220-240V 50/60 Hz
PRS-ASMWB00130-2	Marshall Water Bath with Cooler Unit, 30 L, 220-240V 50/60 Hz
PRS-ASMWB00132-3	Marshall Water Bath with Cooler Unit, 48 L, 220-240V 50/60 Hz

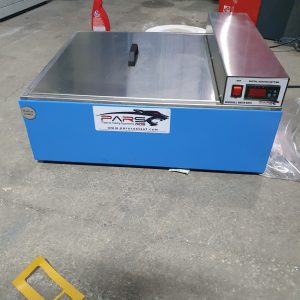

Marshall Water Bath

STANDARDS : ASTM D1559 , EN 12697-34 , AASHTO T245

ParsRos  Water Baths are used in various material testing analyses. 15, 30 and 48 lt. tank capacity models are available and can be ordered with

or without cooler units.

Temperature is from ambient to 95°C.

Internal surfaces are polished stainless steel with a sheet steel insulated outercase.

The EN 12697-23 covering the determination of the strength of bituminous mixtures, prescribe a water conditioning temperature of 5°C or from 5 to 25°C which are

obtainable with a cooling system.

Water bath are used for asphalt (marshall, bitumen testing), cement (curing on conditioning) applications.

The cooler unit is located under the water bath.

*** Complete with re-circulating unit for temperature uniformity.

Product Code	Capacity	Int. Dimensions	Ext. Dimensions	Temperature Range	Weight (approx.)
PRS-ASMWB00128	15 Liters	160x330x300 mm	300x500x360 mm	for ambient to +90°C ± 1°C	15 kg
PRS-ASMWB00130	30 Liters	160x520x250 mm	300x700x380 mm	for ambient to +90°C ± 1°C	18 kg
PRS-ASMWB00132	48 Liters	160x620x500 mm	300x820x600 mm	for ambient to +90°C ± 1°C	25 kg
PRS-ASMWB00128-1	15 Liters	160x330x300 mm	625x400x600 mm	+5°C to +70°C± 0,5°C	26 kg
PRS-ASMWB00130-2	30 Liters	160x510x300 mm	625x400x760 mm	+5°C to +70°C± 0,5°C	36 kg
PRS-ASMWB00132-3	48 Liters	160x620x510 mm	650x620x900 mm	+5°C to +70°C± 0,5°C	48 kg
