Continuous Flow Filterless Centrifuge
STANDARDS : EN 12697-1,EN13108,DIN 1996,ASTM D1856
It is designed for quick filter less separation of filler from binder solution or other mixtures
containing sediments (cement, soil, clay), in suspension.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-ASFCFFC | Continuous Flow Filterless Centrifuge |

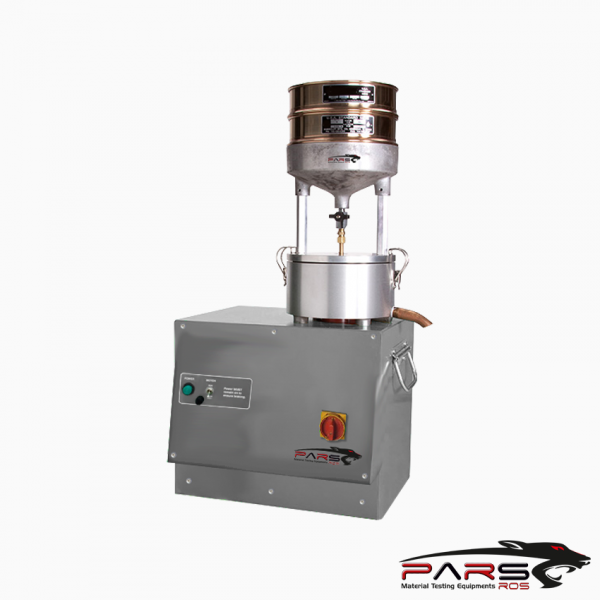

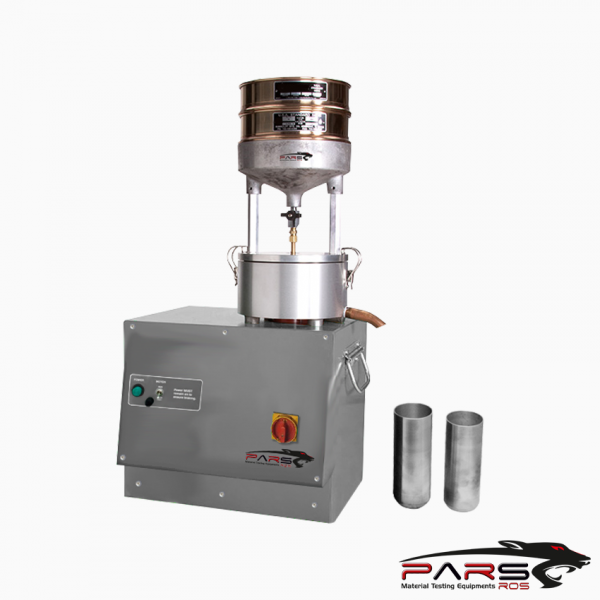

Continuous Flow Filterless Centrifuge
STANDARDS : EN 12697-1,EN13108,DIN 1996,ASTM D1856
Continuous Flow Filterless Centrifuge is designed for quick filter less separation of filler from binder solution or other mixtures containing sediments
(cement, soil, clay), in suspension.

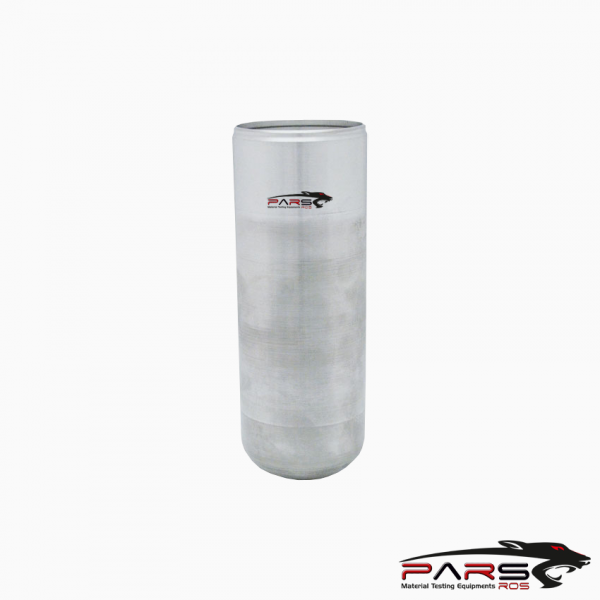

The solution is poured into the top funnel and falls into the rotating test container dia. 70×200 mm.
The rotation speed is 11500 rpm, with automatic ramp and preset speed control.
Extraction capacity is up to 100 gr. of filler per test.
| Dimensions | 350x600x720 mm. |
| Power supply | 220-240 V 1ph 50 Hz 600 W |
| Weight | 60 Kg |
