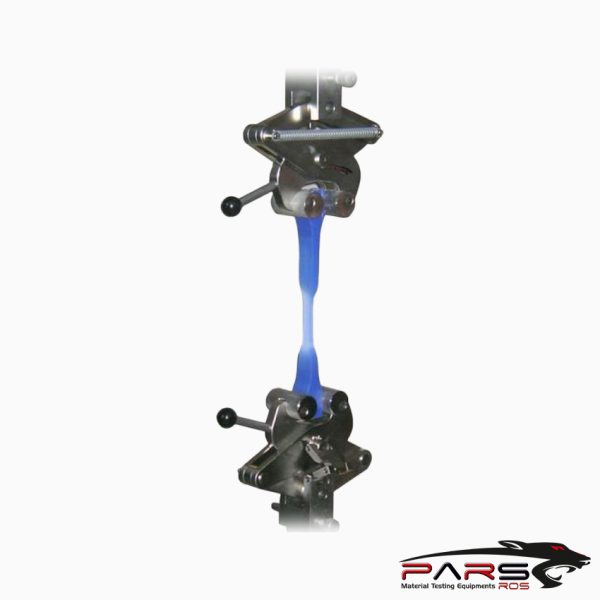

EN 1465 Test Fixture 5
EN 1465 Test Fixture
EN 1465 Test Fixture 4
EN 1465 Test Fixture 3
EN 1465 Test Fixture 2

EN 1465 Test Fikstürü

EN 1465  specifies a method for determining the tensile lap-shear strength of bonded assemblies when tested on a standard specimen and under specified conditions

of preparation and testing.

Bilgi Almak İçin Lütfen Bizimle İletişime Geçiniz

Açıklama

EN 1465 – Adhesives – Determination of Tensile Lap-Shear Strength of Bonded Assemblies



EN 1465  specifies a method for determining the tensile lap-shear strength of bonded assemblies when tested on a standard specimen and under specified

conditions of preparation and testing.

NOTE 1 This test procedure is not applicable for calculations needed for bond design in structural joints.

NOTE 2 This test Test methods for the determination of tensile lap-shear strength of bonded assemblies with wood adhesives are also specified in EN 205 and

EN 302-1


Principle

Adhesive lap-shear bond strength is determined by stressing in shear of a single overlap joint  between rigid adherends by applying to the adherends a tensile force

which is parallel to the bond area and to the major axis of the specimen.

The reported result is the observed force or stress at rupture.


Apparatus

Testing Machine

It shall comply with a test machine, class 1 and the response time of the machine shall be short enough not to affect the accuracy with which the force applied at

the time of rupture can be measured.

NOTE

The recorded force shall not differ from the true applied force by more than 1%.

The machine shall be capable of applying a tensile force that increases at a steady rate.

Where equipment does not allow for constant rate of load application, a rate of jaw separation shall be used which approximates the rate of loading .

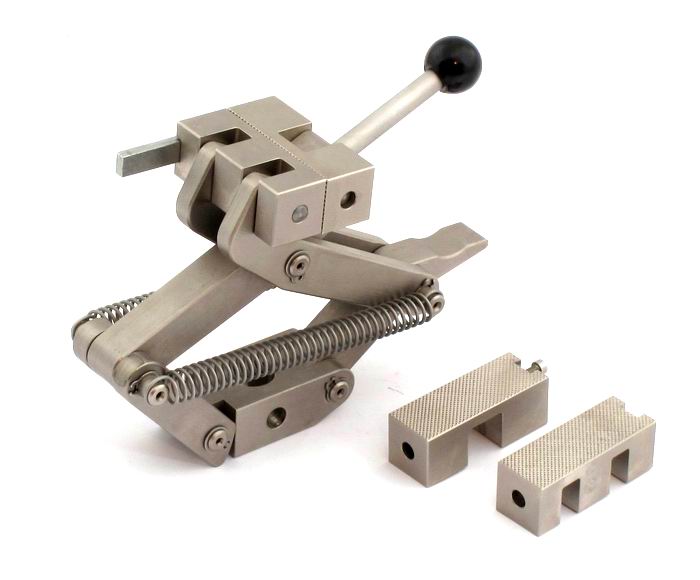

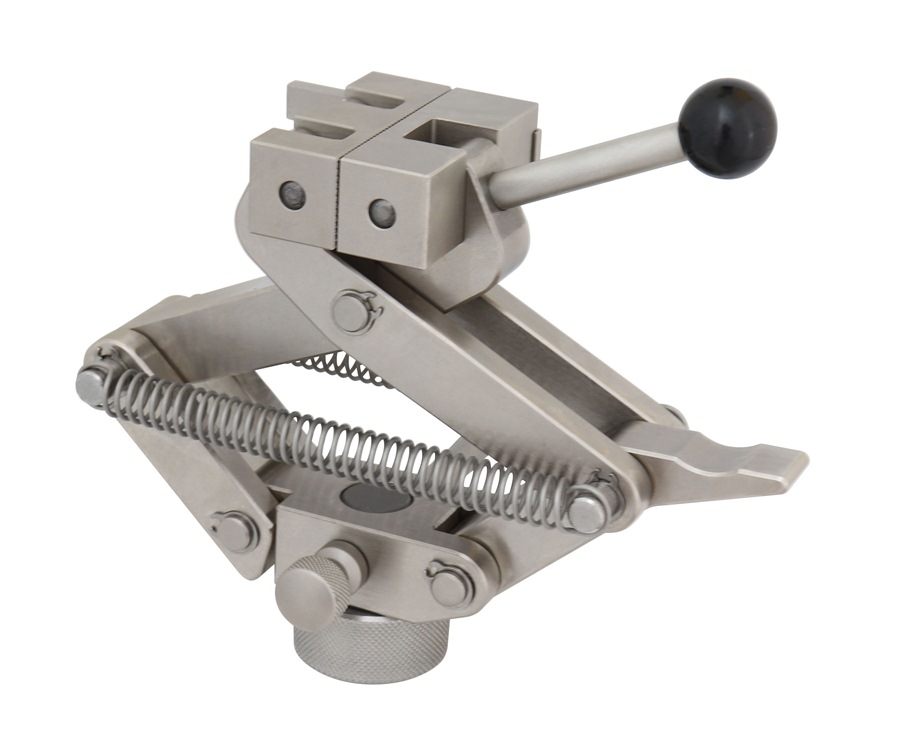

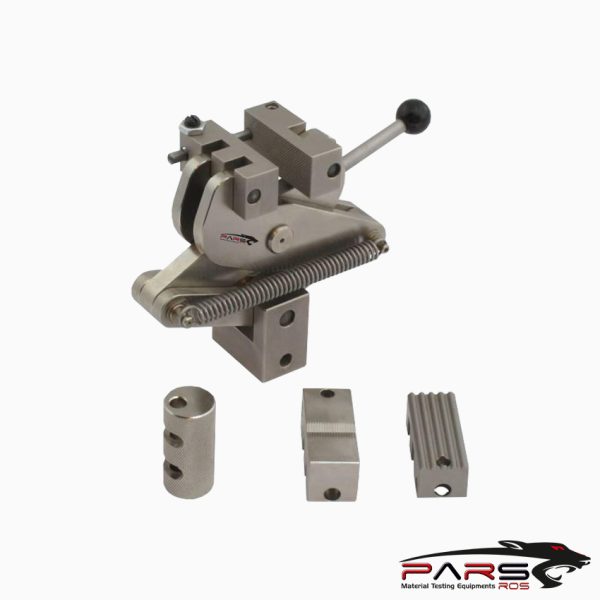

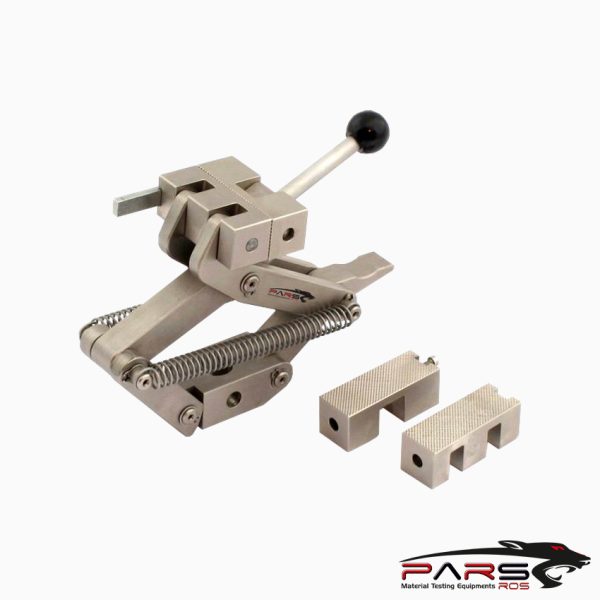

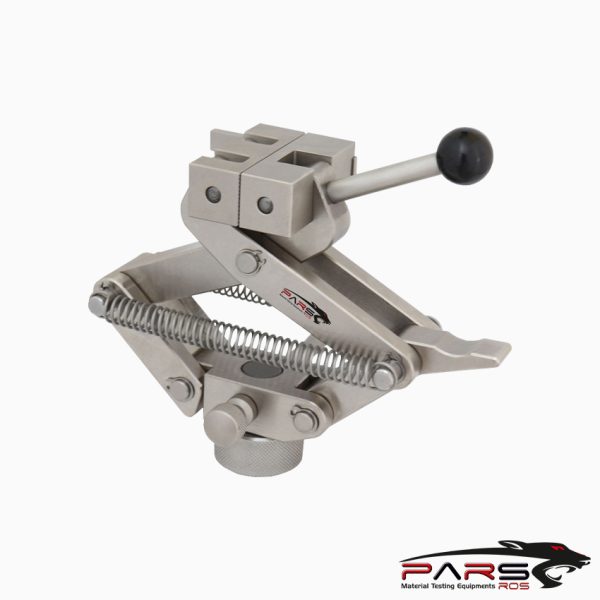

It shall be provided with a suitable pair of self-aligning grips to hold the specimen.

The grips and attachments shall be so constructed that they will move into alignment with the test specimen as soon as the load is applied, so that the long

axis of the test specimen will coincide with the direction of the applied force through the centre line of the grip assembly to avoid bending moment.

Grips that operate by bolting through the adherends shall be avoided since such grips give rise to undesirable stress concentration.


Jig

For accurately locating adherends during bonding.


Test Procedure

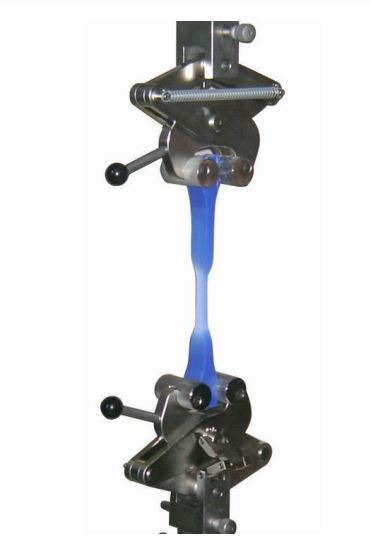

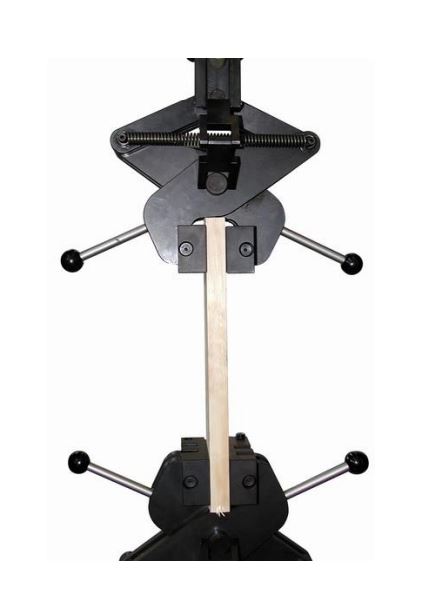

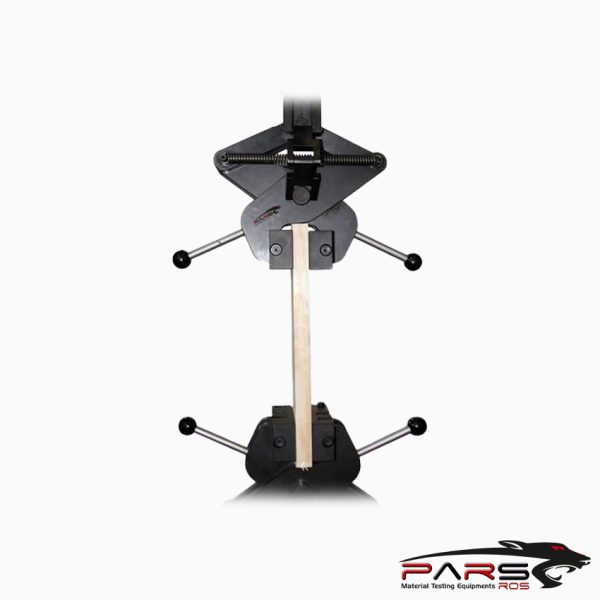

Locate the test specimen symmetrically in the grips, with each grip (50 ± 1) mm from the nearest edge of the overlap.

A shim may be used in the grips so that the applied force will be in the plane of the adhesive bond.

Operate the machine so that the stress or strain on the test joint increases at a constant (i.e. steady) rate.

This rate shall be such that the average joint will be broken in a period of (65 ± 20) s.

Record the highest force during rupture as the breaking force of that specimen.

Results from test specimens that rupture in the adherend shall be discarded except for routine testing and noted in the test report.

*** Before conducting EN 1465 , it is important to read the entire specification. Standards can be obtained from appropriate standard authorities.



***PARSROS  offers several types of grips and fixtures which will enable you to perform a variety of tests

  that are accurate and repeatable.
