BS EN 1719 Test Fixture
BS EN 1719 Test Fixture 1
BS EN 1719 Test Fixture 2

BS EN 1719 Test Fikstürü

BS EN 1719 determines the “loop tack” measurement for coated pressure-sensitive adhesives.

Bilgi Almak İçin Lütfen Bizimle İletişime Geçiniz

Açıklama

BS EN 1719 – Adhesives for Paper and Board, Packaging and Disposable Sanitary Products.

Tack Measurement for Pressure-Sensitive Adhesives. Determination of Loop Tack



BS EN 1719 determines the “loop tack” measurement for coated pressure-sensitive adhesives.

This standard is primarily used by manufacturers of paper and board, packaging, and disposable sanitary products to measure the strength of things such as

envelope adhesives and diaper tab adhesives.

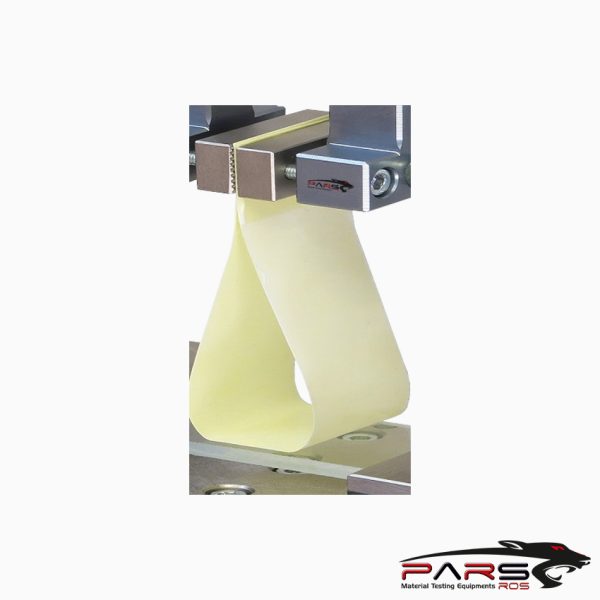

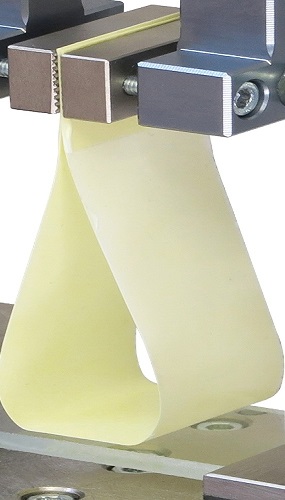

To create specimens for this test, adhesive strips are formed into a loop and gripped together.

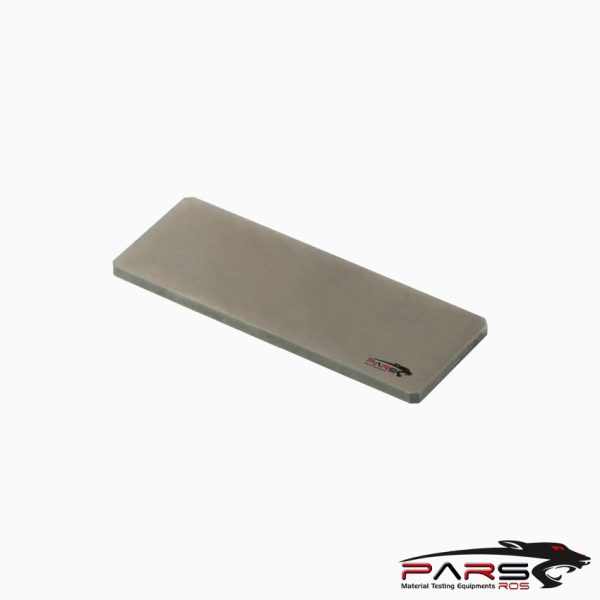

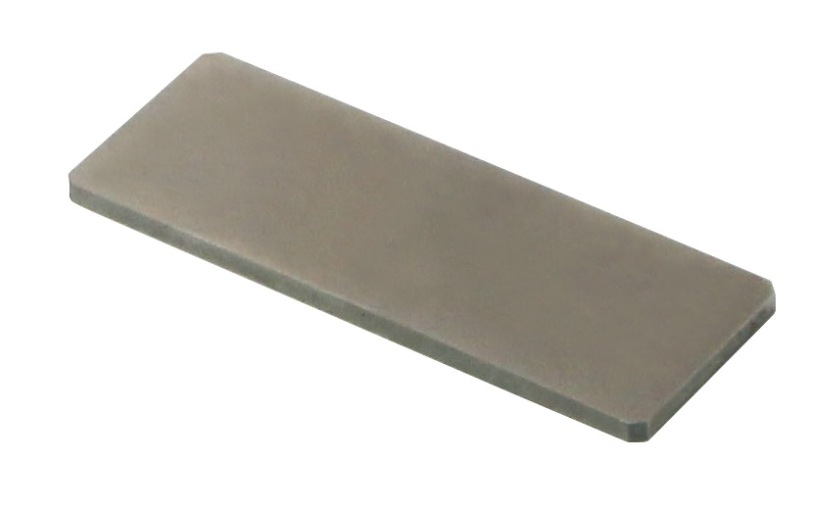

The adhesive loop is brought down into contact with a flat rigid plate at a rate of 5 mm/s.

When the loop contacts the plate over approximately 25 mm by 25 mm, the adhesive loop is pulled upwards at a rate of 5 mm/s and the maximum force to fully separate

the loop from the plate is recorded.

*** Before conducting BS EN 1719 , it is important to read the entire specification. Standards can be obtained from appropriate standard authorities.



***PARSROS  offers several types of grips and fixtures which will enable you to perform a variety of tests

  that are accurate and repeatable
