Electromechanical Tensile Test Machine

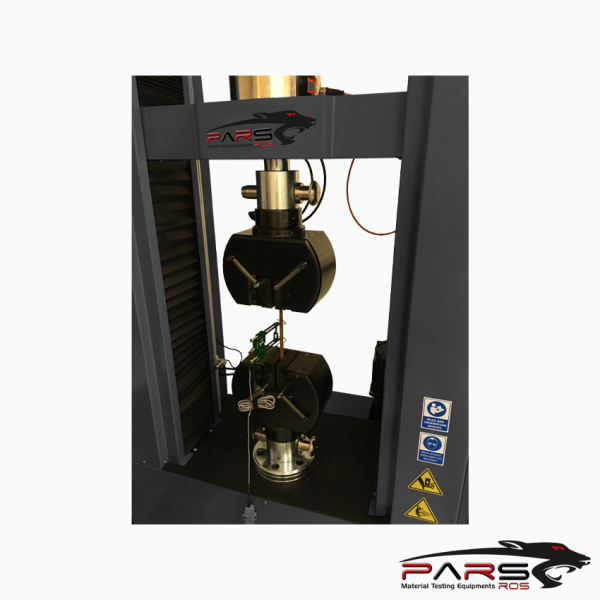

ParsRos Elektromekanik Universal Test Cihazı , 300 kN 2

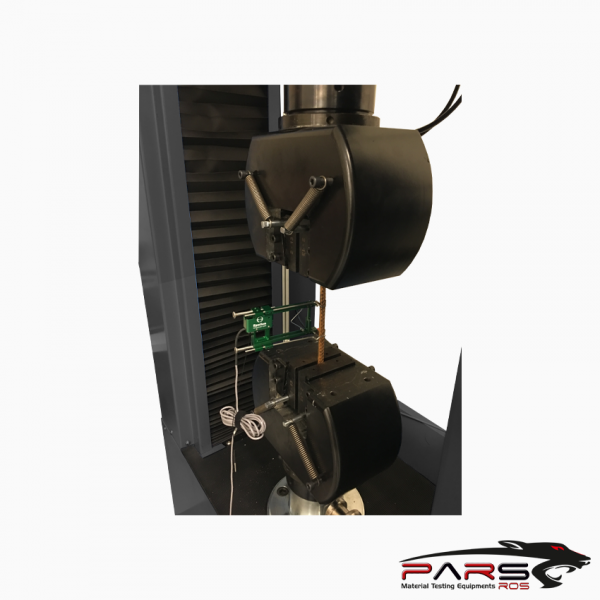

ParsRos Elektromekanik Universal Test Cihazı , 300 kN 3

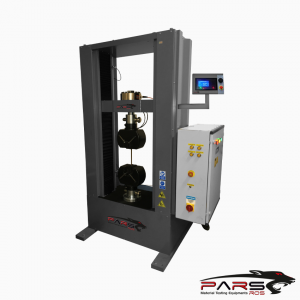

Electromechanical Tensile Test Machine, 300 kN

STANDARDS  : EN ISO 6892-1, EN ISO 15630-1 and 2, EN ISO 7500-1

PRS-UEM300300 kN capacity Fully Automatic  Electromechanical Tensile Test Machine is multi purpose versatile machines which satisfy

the requirement of R&D laboratories, university laboratories, institute laboratories and quality control laboratories for tensile, compression flexural tests under load

or displacement control for  a wide range of materials.

Please Contact With Us For More Information

Description

Product Code

Product Description

PRS-UEM300 Electromechanical Universal Tensile Test Machine, 300 kN



Electromechanical Tensile Test Machine, 300 kN

STANDARDS  : EN ISO 6892-1, EN ISO 15630-1 and 2, EN ISO 7500-1

PRS-UEM300300 kN capacity Fully Automatic  Electromechanical Tensile Test Machine is multi purpose versatile machines which satisfy

the requirement of R&D laboratories, university laboratories, institute laboratories and quality control laboratories for tensile, compression flexural tests under load

or displacement control for  a wide range of materials.

PRS-UEM300 model Electromechanical Tensile Test Machine can be used for tensile test on any material i.e (metal, plastic, textile, wood) by using

suitable accessories.

This machine can also be used for general compression, flexural, test on steel, soil, concrete, cement, asphalt and similar materials, by using suitable accessories.

This Testing Machines consists of base containing the transmission components and holds two robust columns connected by upper cross head and digital graphics

data acquisition and control system.

The upper cross head can be adjusted to set the vertical test space for different tests.

User can adjust the vertical test space by also lower crosshead moved by an electromechanical system with a single recirculating ball screw, powered by an

servomotor.

Advanced closed loop control system assures accurate load or displacement pace rate on sample.

The load is measured by a load cell that located on upper crosshead and displacement is measured by an encoder fit to the servo motor on both models.

The operator will have large flexibility during the test with advanced microprocessor control and material testing software installed on PC.

The machine is supplied complete with high precision load cell.

*** Gripping systems, extensometers and accessories are  not included and have to be ordered  separately.


Electromechanical Tensile Test Machine

Electromechanical Tensile Test Machines are suitable for difference tests on various materials as Uniaxial Tests, Triaxial Tests, Steel Re-bars, Cement and Concrete,

Soil (CBR), Asphalt (Marshall, Indirect Tensile, Duriez),

Tiles, Flat Blocks etc.


Electromechanical Tensile Test MachineGENERAL ACCESSORIES

Load Cell, 5 kN Capacity

Load Cell, 50 kN Capacity

Load Cell, 300 kN Capacity

Compression Platens, used to perform uniaxial and unconfined compression tests.

Extensometer for universal testing machine, 50 mm gauge length, 10 mm travel (to use with max Ø:22 mm specimens)

Extensometer for universal testing machine, 50 mm gauge length, 100% strain feature,  standard temperature range: -40°C to +100°C (-40°F to 212°F).

Reviews

There are no reviews yet.


Be the first to review “Electromechanical Tensile Test Machine, 300 kN”

Max. Vertical Test Space (without accessories) (Lower crosshead at middle stroke.

850 mm

Distance  Between Columns 630 mm
Crosshead Travel 200 mm
Test Speed Range 0-75 mm/min.
Load Rate 0,001-10 kN/s

(Depend on specimen stiffness)

Machine Class Class 1 starting from

1%of the capacity

Encoder Resolution 0,001 mm
Encoder Accuracy 0,01
Electrical Requirement 220-240V, 50-60Hz, 1 phase.
Overall Dimensions 1100x450x1860 mm
Weight Approx. 800 kg
