Frame For Load Test , 450 kN

PRS-LF450  Frame for Load Tests has been designed specifically for experiments in the fields of steelwork and civil engineering.

The frame is delivered in prefabricated parts that must be assembled on site.

Please Contact With Us For More Information

Description

Frame For Load Test , 450 kN

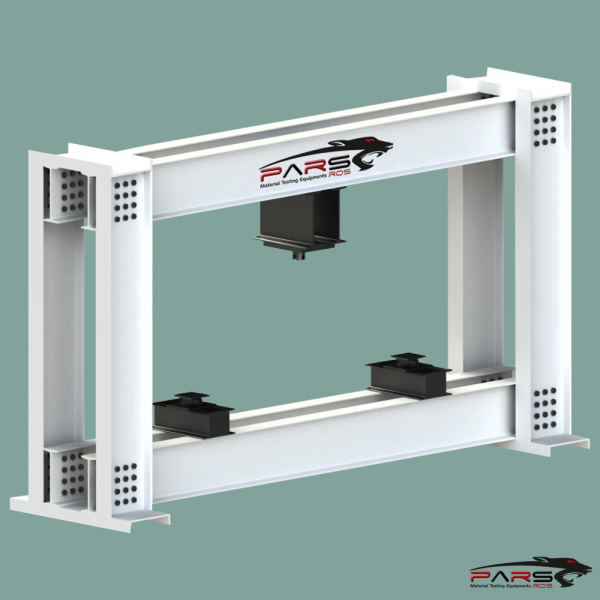

PRS-LF450  Frame for Load Tests has been designed specifically for experiments in the fields of steelwork and civil engineering.

The frame is delivered in prefabricated parts that must be assembled on site.

This makes it possible to transport the separate parts through normal doorways.

The frame is set up on four adjustable and vibration-damping feet. The generous operating area is designed as a double frame so that longer components can also

be studied.

The design of the frame means experiments can be conducted quickly and without complicated assembly.

The unit offers a very wide range of possibilities in conjunction with the accessories and the load application device.

The hydraulically operated load application device, available as accessory PRS-LF450 -1, includes a double-action hydraulic cylinder and

a hand-operated pump mounted on a table.

FRAME FOR LOAD TEST 2

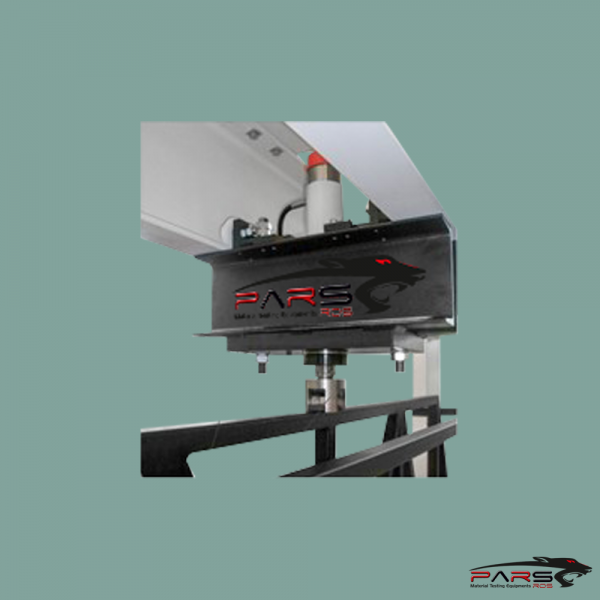

The load appliction device is mounted on rollers and can be positioned at any point on the upper cross-member of the frame.

Depending on the experimental setup

it is also possible to use two load application devices PRS-LF450-2( 2 X 250 Kn ) and therefore generate several forces.

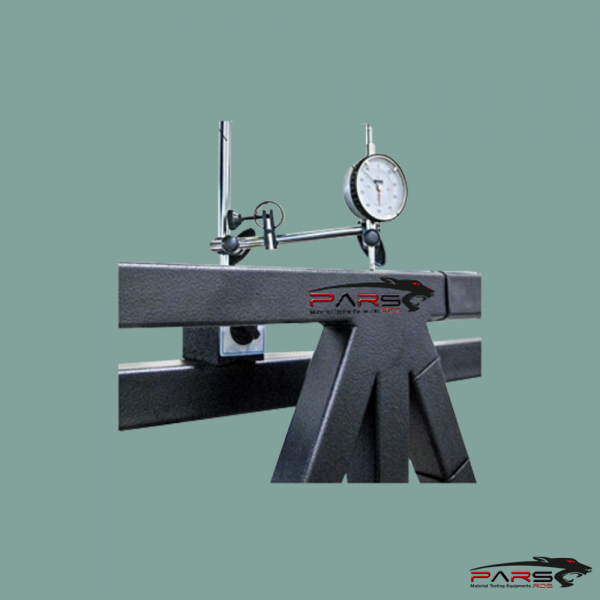

The bending is indicated by means of dial gauges, available as accessory PRS-LF450 -3 .( Dial Gauge )

FRAME FOR LOAD TEST 3









Large components such as reinforced concrete beams, girders or steel frames can be subjected to loads and investigated experimentally.

The PRS-LF450 -4 accessory is available for experiments on trusses.

The forces on typical bars of the truss are recorded by means of strain gauges









SPECIFICATIONS OF FRAME FOR LOAD TEST

Load application devices can be positioned at any point on the frame

Large operating area, designed as a double frame, also suitable for very long components mounted on 4 adjustable vibration-damping feet

Hydraulically operated load application device for generating compressive forces available as an accessory

Frame is delivered in parts, transport through normal doorways possible

Experiments with different components such as beams, girders or frames possible
