High Temperature Furnace 1000 °C ( For Universal Test Systems )
Furnaces are used in many laboratories around the world.
Our Furnaces are compatible with the Many Test System with many such as Fatigue Test, Endurance Test, Tensile Test or Compression Test.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS- HCTOV1000 | High Temperature Furnace 1000 °C ( For Universal Test Systems ) |

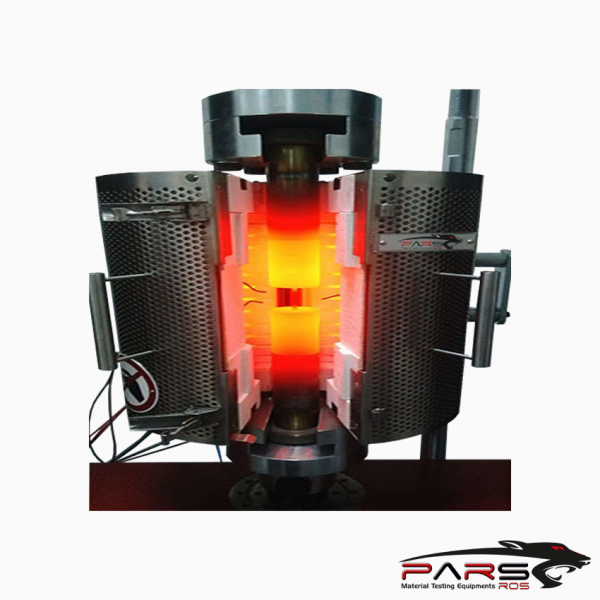

High Temperature Furnace 1000 °C ( For Universal Test Systems )
High Temperature Furnaces are used in many laboratories around the world.
Our Furnaces are compatible with the Many Test System with many such as Fatigue Test, Endurance Test, Tensile Test or Compression Test.

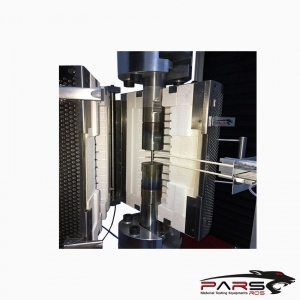

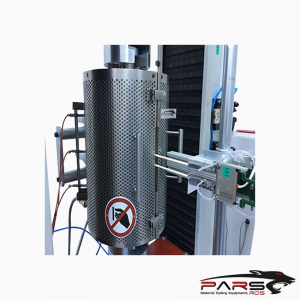

Furnace can be used horizontally and vertically together with material testers.
Mounting apparatus is provided by us as necessary to integrate the device into the system.
The PRS- HCTOV1000 Model Furnace is mainly suitable for use in the air in heating conditions up to 950 ° C for the determination of the hot
elastic behavior of materials and their high thermal strength
Good temperature homogeneity due to 3 heating zones, which can be controlled independently of each other with the appropriate temperature control system
Light weight, heat insulation material
Case made of stainless steel
Our High Temperature Furnace is prepared to put the Lateral High Temperature-Display
| Temperature Range | Ambient Temperature 1000 °C |
| Heating rate | Max. 20K per minute |
| Power | Approx. 0,5 kW, 0,6 kW, 0,6 kW per Zone / 3 x 34 V, 50 Hz |
