High Temperature Furnace 1100 °C ( For Universal Test Systems )

Furnaces are used in many laboratories around the world.

Our Furnaces are compatible with the Many Test System with many such as Fatigue Test, Endurance Test, Tensile Test or Compression Test.

Please Contact With Us For More Information

Description

Product Code

Product Description

PRS- HCTOV1100

 High Temperature Furnace  1100 °C (  For Universal Test Systems )

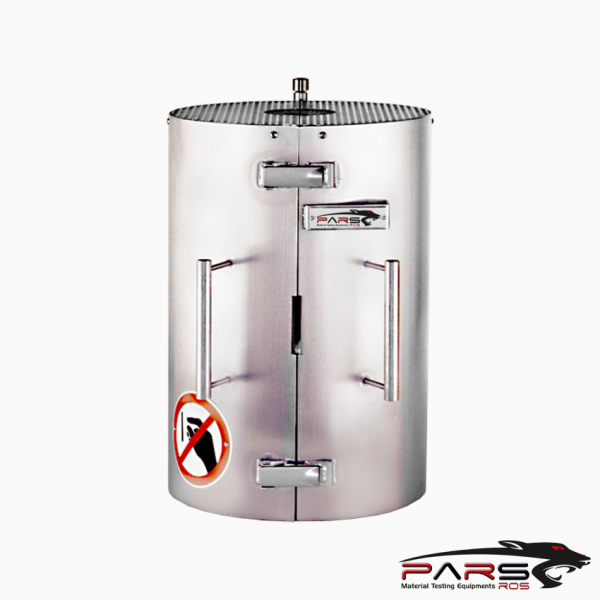

High Temperature Furnace 1100 °C ( For Universal Test Systems )

High Temperature Furnaces are used in many laboratories around the world.

Our Furnaces are compatible with the Many Test System with many such as Fatigue Test, Endurance Test, Tensile Test or Compression Test.

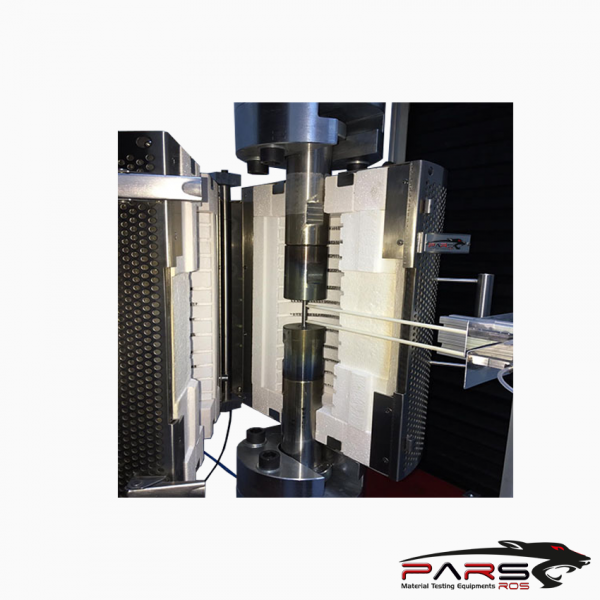

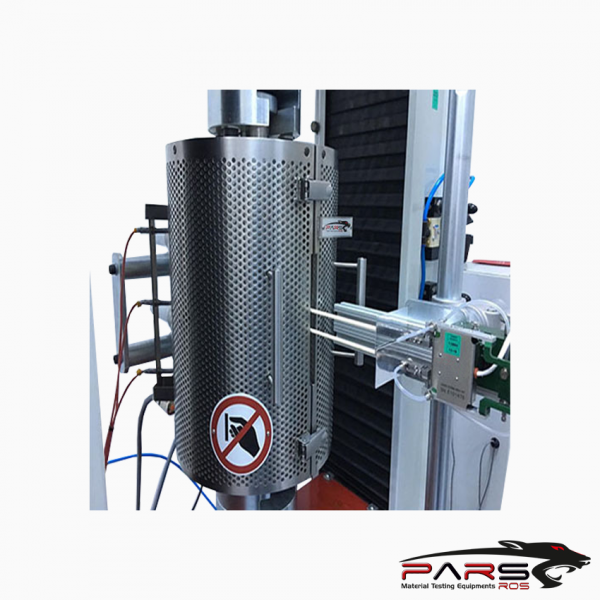

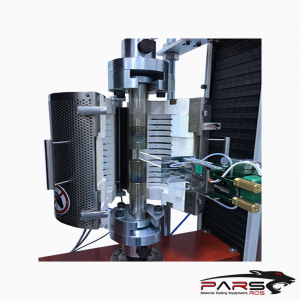

Furnace can be used horizontally and vertically together with material testers.

Mounting apparatus is provided by us as necessary to integrate the device into the system.

The PRS- HCTOV1100 Model Furnace is mainly suitable for use in the air in heating conditions up to 1050 ° C for the determination of the hot

elastic behavior of materials and their high thermal strength

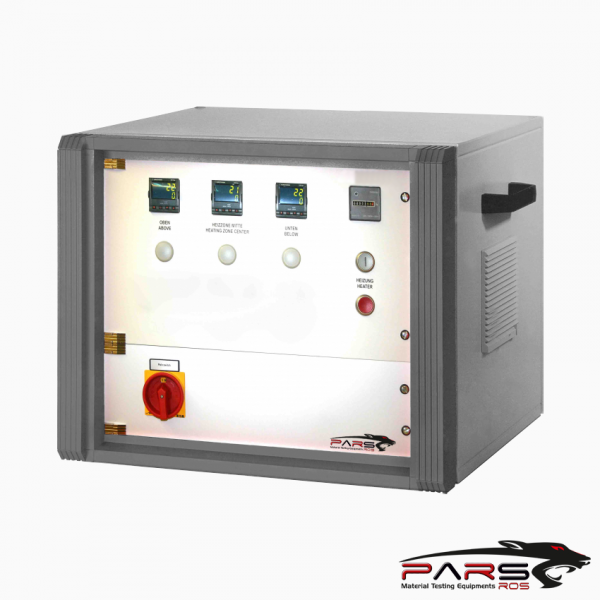

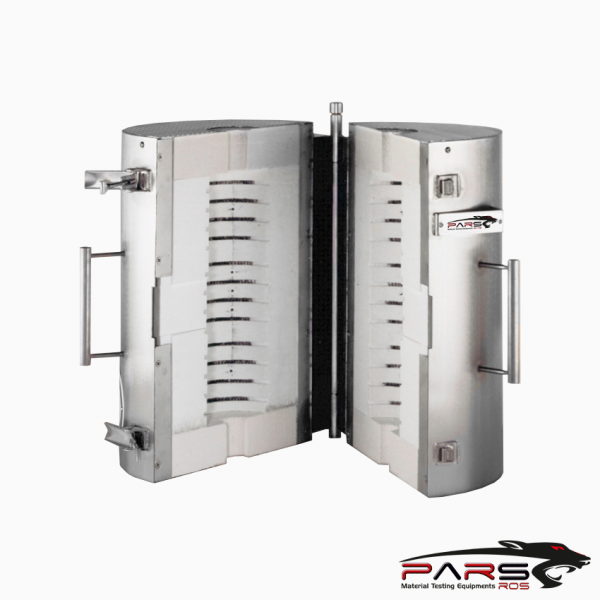

Good temperature homogeneity due to 3 heating zones, which can be controlled independently of each other with the appropriate temperature control system

Light weight, heat insulation material

Case made of stainless steel

Our High Temperature Furnace is prepared to put the Lateral High Temperature-Display



Temperature Range Ambient Temperature 1100 °C
Heating rate Max. 20K per minute
Power Approx. 0,5 kW, 0,6 kW, 0,6 kW per Zone / 3 x 34 V, 50 Hz
