ASTM D2861 – Flexible Composites of Copper Foil with Dielectric Film or Treated Fabrics

ASTM D2861-14 – This test method covers procedures for testing flexible materials consisting of copper foil combined with either dielectric film or with treated or

impregnated fabric to form flexible composites used in the manufacture of flexible or multilayer circuitry, or both.

Bilgi Almak İçin Lütfen Bizimle İletişime Geçiniz

Kategoriler: Etiketler:

Açıklama

ASTM D2861 – Standard Test Methods for Flexible Composites of Copper Foil with Dielectric Film or Treated Fabrics



ASTM D2861 – This test method covers procedures for testing flexible materials consisting of copper foil combined with either dielectric film or with treated or

impregnated fabric to form flexible composites used in the manufacture of flexible or multilayer circuitry, or both.

The procedures appear as follows:

Procedure

Section

ASTM Reference Method

Conditioning

5

Flex Life of the Composite

20 – 25

Peel Strength of the Composite

11 – 19

Specimen Preparation

6

D1825

Strain Relief Due to Etching

26 – 32

Testing of the Dielectric Portion of      the Composite

7 – 10

D1825D2305D902

Withdrawn Rationale:

These test methods cover procedures for testing flexible materials consisting of copper foil combined with either dielectric film or with treated or impregnated fabric

to form flexible composites used in the manufacture of flexible or multilayer circuitry, or both.

Formerly under the jurisdiction of Committee D09 on Electrical and Electronic Insulating Materials, these test methods were withdrawn in August 2020.

This standard is being withdrawn without replacement because it is no longer being maintained.

*** Before conducting ASTM D2861 , it is important to read the entire specification. Standards can be obtained from appropriate standard authorities.


Referenced Documents

ASTM Standards

ASTM D902 Test Methods for Flexible Resin-Coated Glass Fabrics and Glass Fabric Tapes Used for Electrical Insulation

ASTM D1711 Terminology Relating to Electrical Insulation

ASTM D1825 Practice for Etching and Cleaning Copper-Clad Electrical Insulating Materials and Thermosetting Laminates for Electrical Testing

ASTM D2305 Test Methods for Polymeric Films Used for Electrical Insulation

ASTM D6054 Practice for Conditioning Electrical Insulating Materials for Testing

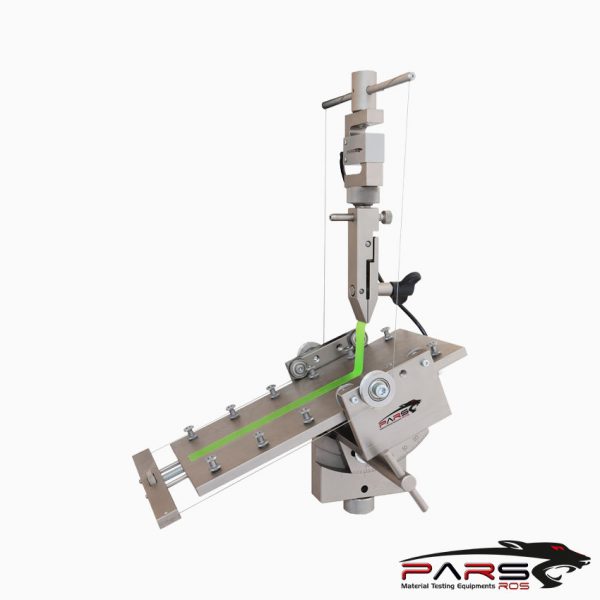

***PARSROS  offers several types of grips and fixtures which will enable you to perform a variety of tests  that are

accurate and repeatable.
