Concrete Sieve Test Set , Ø 300 mm
STANDARDS : EN 933-2; ISO 565, 3310-1, 3310-2; ASTM E11, 323 EN 12350-11
Sieve Test Set Ø 300 mm is used for determining the resistance to sieve segregation of Self Compacting Concrete.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
Product Code |
Product Description |
PRS-BELK300 |
Concrete Sieve Test Set , Ø 300 mm |

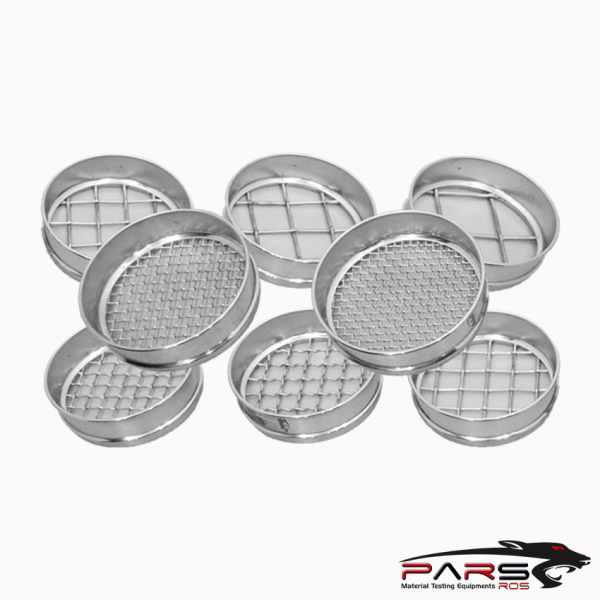

Concrete Sieve Test Set , Ø 300 mm
STANDARDS : EN 933-2; ISO 565, 3310-1, 3310-2; ASTM E11, 323 EN 12350-11
Concrete Sieve Test Set Ø 300 mm is used for determining the resistance to sieve segregation of Self Compacting Concrete.
The diameter of Sieve hoop ( Rim ) is 300 mm
Sieve hoop ( Rim ) is stainless steel .
*** Sieve Test Set consists of
Dimensions are as follow ;
31,5 mm-22,4 mm-16 mm-11,2 mm-8 mm-5,6 mm- 4 mm- 2 mm- 1 mm – 0,5 mm – 0,25 mm – 0,125 mm – 0,063 mm + pan + lid ( 13 Sieve and pan + lid )
Diameter : 300 mm
The Hoop ( Rim ) : Stainless Steel
