Neoprene Pads
ParsRos Basınç Yatağı 1

Neoprene Pads & Capping Retainers For Concrete Cylinders

STANDARDS : ASTM C1231, AASHTO T22,T851

Unbonded Capping is a safe, accurate, and economical alternative to the use of hot sulfur capping compound for compressive strength tests of concrete specimens.

Please Contact With Us For More Information

Description

Product Code

Product Description

PRS-CKABYT4 Capping Retainers for Ø4” (100 mm) Cylinders, Set of Two
PRS-CKABYT4-50 Neoprene Pads for Ø4″ Cylinders, 50 Shore, Set of Two
PRS-CKABYT4-60 Neoprene Pads for Ø4” (100 mm) Cylinders, 60 Shore, Set of Two
PRS-CKABYT4-70 Neoprene Pads for Ø4″ Cylinders, 70 Shore, Set of Two
PRS-CKABYT6 Capping Retainers for Ø6” (150 mm) Cylinders Set of Two
PRS-CKABYT6-50 Neoprene Pads for Ø6″ Cylinders, 50 Shore , Set of Two
PRS-CKABYT6-60 Neoprene Pads for Ø6” (150 mm) Cylinders, 60 Shore, Set of Two
PRS-CKABYT6-70 Neoprene Pads for Ø6″ Cylinders, 70 Shore, Set of Two
PRS-CKABYT160 Capping Retainers for Ø160 mm Cylinders Set of Two
PRS-CKABYT160-50 Neoprene Pads for Ø160 mm Cylinders, 50 Shore, Set of Two
PRS-CKABYT160-60 Neoprene Pads for Ø160 mm Cylinders, 60 Shore, Set of Two
PRS-CKABYT160-70 Neoprene Pads for Ø160 mm Cylinders, 70 Shore, Set of Two



Neoprene Pads & Capping Retainers For Concrete Cylinders

STANDARDS : ASTM C1231, AASHTO T22,T851

Unbonded Capping is a safe, accurate, and economical alternative to the use of hot sulfur capping compound for compressive strength tests of concrete specimens.

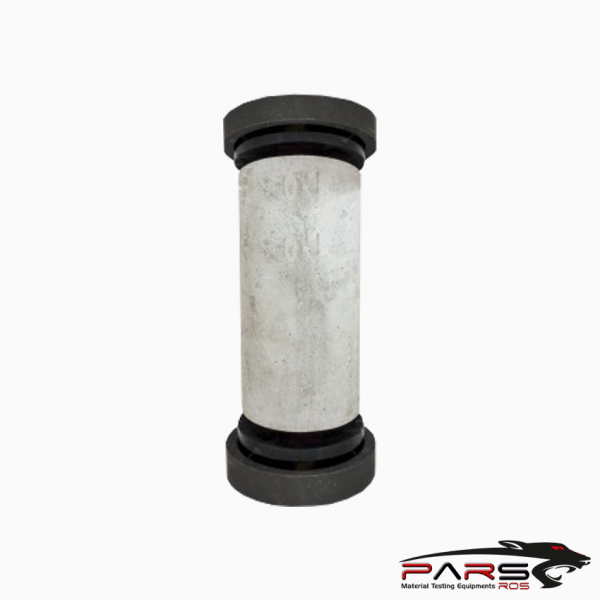

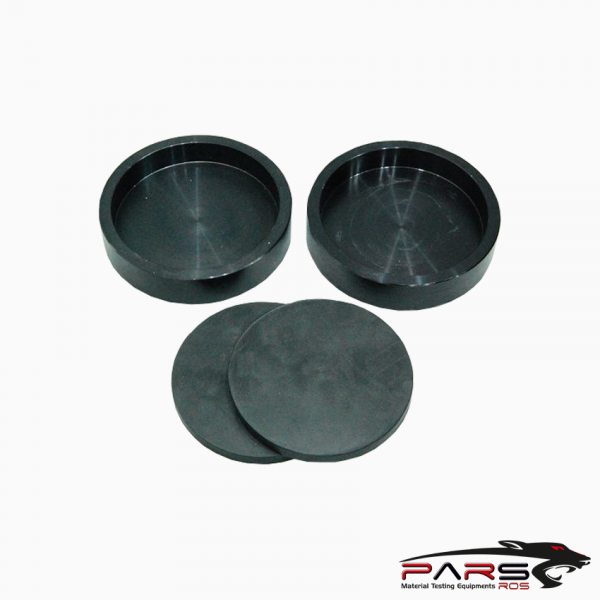

Steel Retainer Rings hold tough 0.5in (12.7mm) thick neoprene pads at each end of the concrete test cylinder to distribute compressive load forces evenly.

The Pads are available in 50, 60, or 70 durometer for compressive strength testing of concrete cylinders, and meet requirements of ASTM C1231

and AASHTO T 22.

These thick pads flow during compression to fill irregularities in cylinder ends and assure uniform load distribution.

**** Neoprene Pads and Steel Retainers are sold separately

**** Two pads are required for testing.
