Small Concrete Curing Tanks
STANDARDS : EN 12390–2; ASTM C31, C192, C511
Steel and Polyurethane Small Curing Tanks are designed for curing concrete cubes and cylinders.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-BSMCT | Small Metal Curing Tank |
| PRS-BLCT4524/N | Curing Tank Heater , 220-240 V 50-60 Hz (3 cm connecting channel and 50 cm resistance length) |
| PRS-BLCT4524/W | Curing Tank Heater , 220-240 V 50-60 Hz (6,5 cm connecting channel and 70 cm resistance length) |
| PRS-BLCT4525 | Circulating Pump |

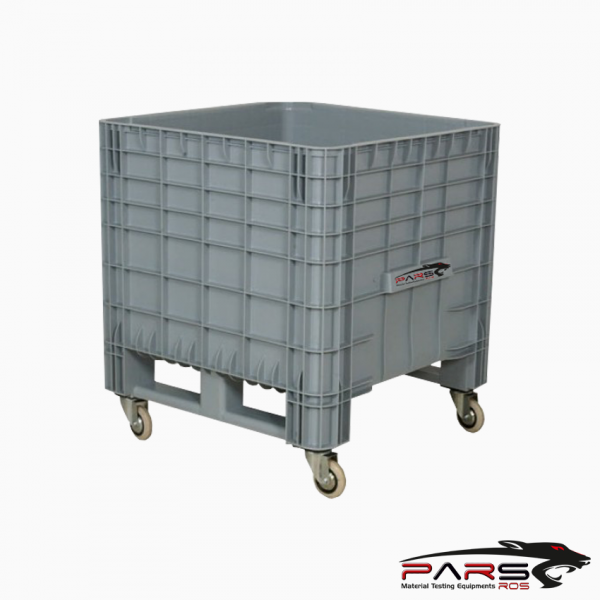

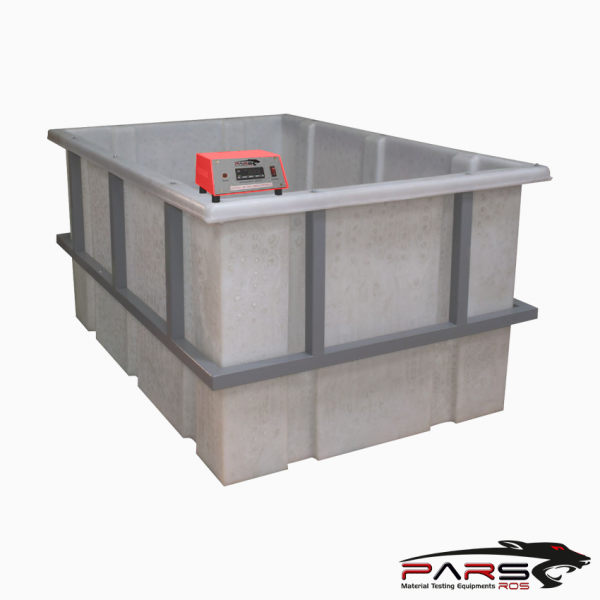

| PRS-BSPCT | Small Plastic Curing Tank |
|
(If 110V required please indicate on your order) |
|
Small Concrete Curing Tanks
STANDARDS : EN 12390–2; ASTM C31, C192, C511
Steel and Polyurethane Small Curing Tanks are designed for curing concrete cubes and cylinders.
The temperature can be adjusted to the required value and can be kept constant by an electric resistance incorporating a thermo regulator
which maintains the set temperature between ambient to 40 ºC with ± 2 ºC accuracy.
The PRS-BSMCT is manufactured from powder coated sheet steel.
*** All Curing Tanks are supplied complete with;
Heater
Base Metal Rack
The PRS-B0970 is also supplied complete with;
Submersible Circulation Pump
| Product Code | PRS-BSMCT | PRS-BSPCT | |
| Dimensions ( WxLxH ) |
External |
710x710x610 mm | 915x1250x660 mm |
|
Internal |
650x650x550 mm (Clear Depth 520mm) | 800x1100x550 mm (Clear Depth 520mm) | |
| Specimens Capacity |
Cube 150 mm |
Max. 48 pcs | Max. 110 pcs |
|
Cylindrical Ø150×300 mm |
Max. 24 pcs | Max. 52 pcs | |
| Weight (approx.) | 55 kg | 60 kg | |
