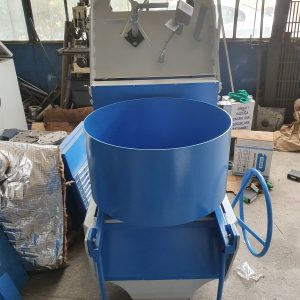

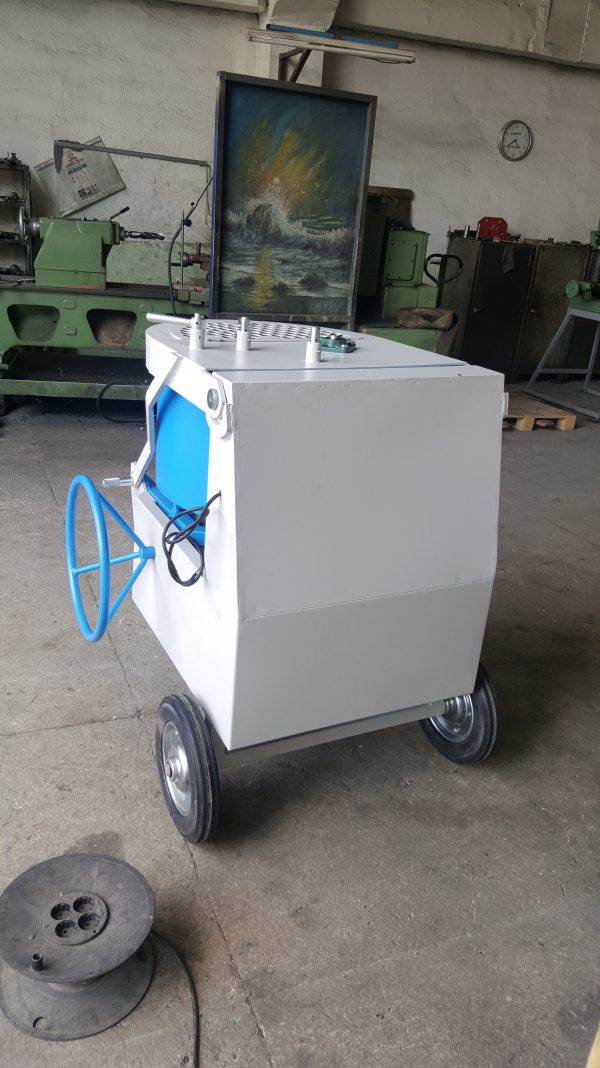

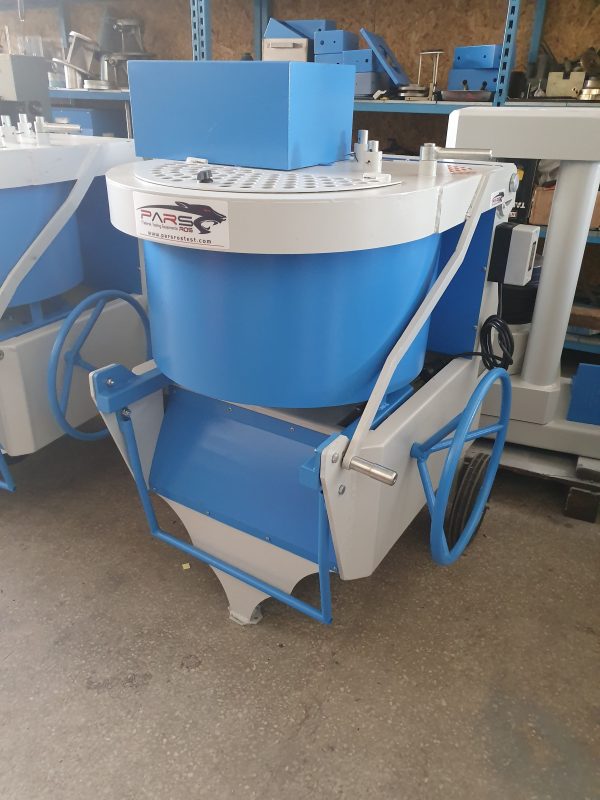

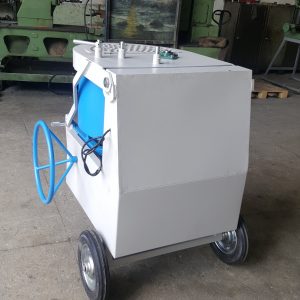

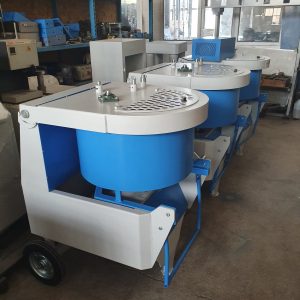

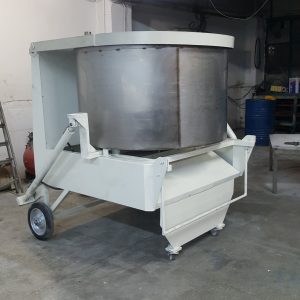

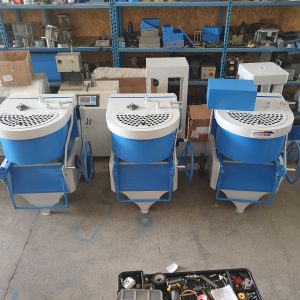

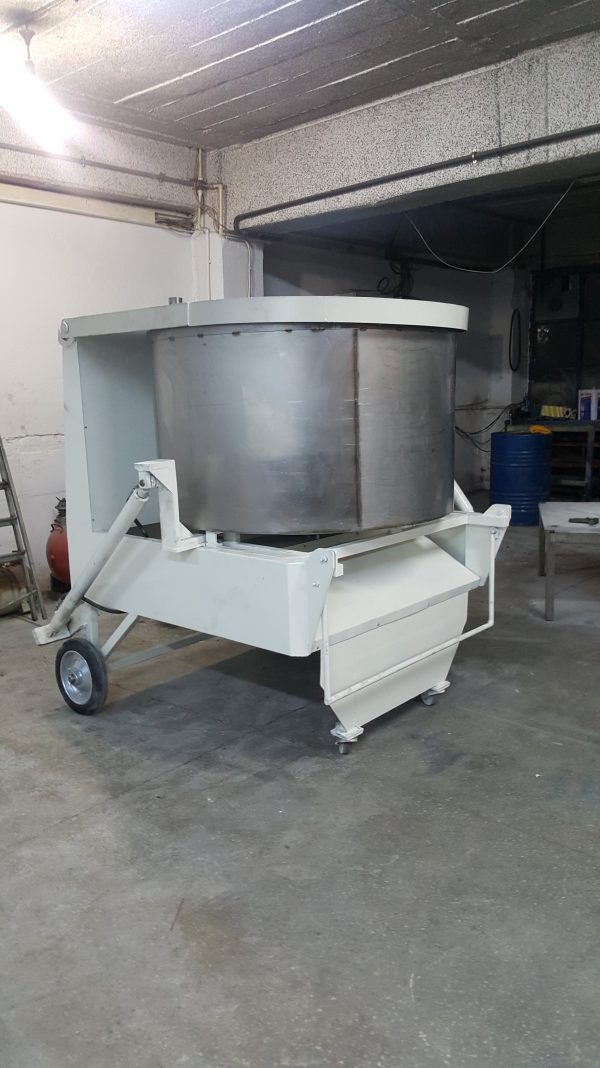

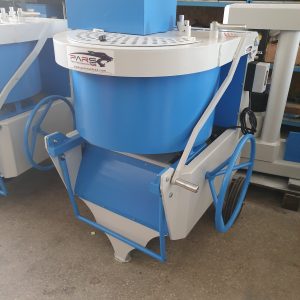

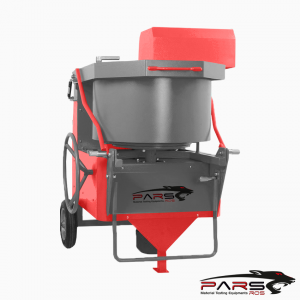

Pan Type Concrete Mixer
STANDARDS : EN 1766
Pan Type Concrete Mixer is designed for mixing fresh concrete in laboratory and is designed to obtain a homogeneous mixture.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-BCMXPT | Concrete Mixer Pan Type, 100 L, 220-240 V 50-60 Hz |

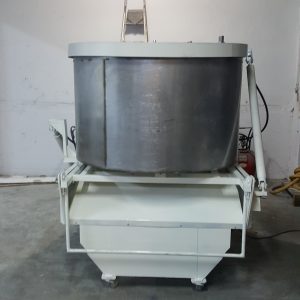

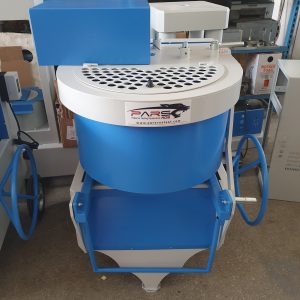

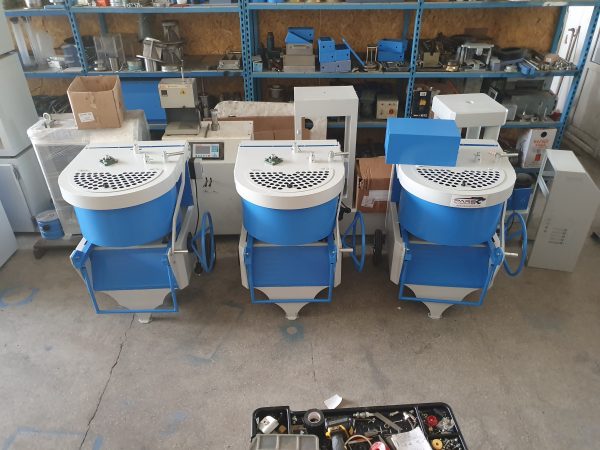

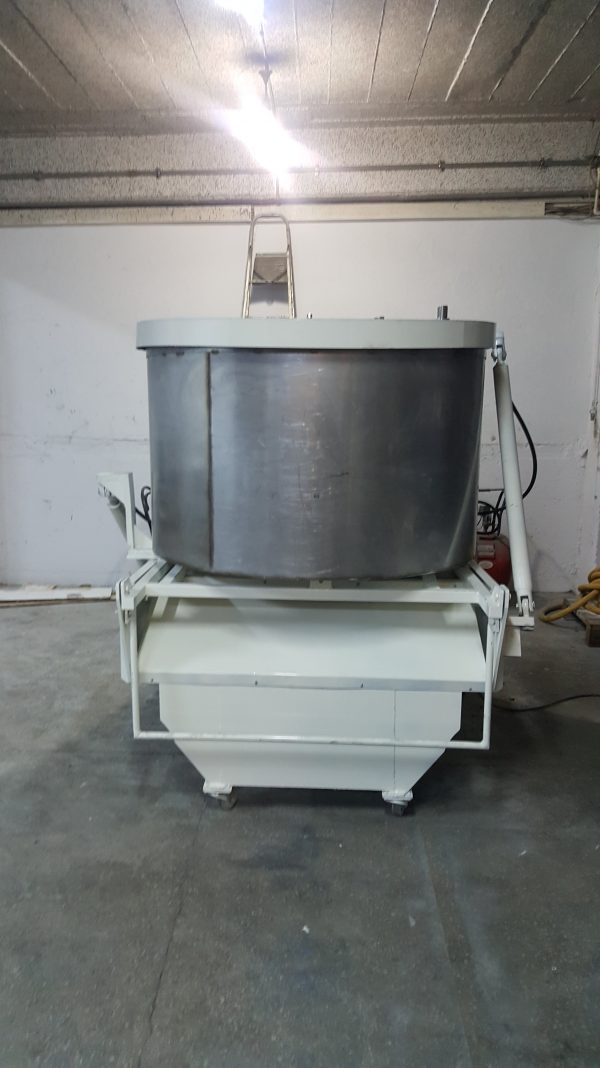

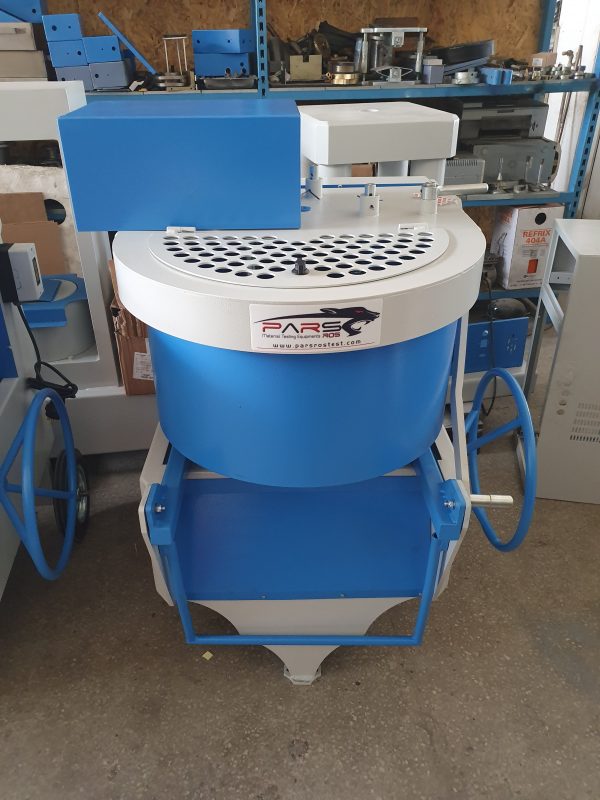

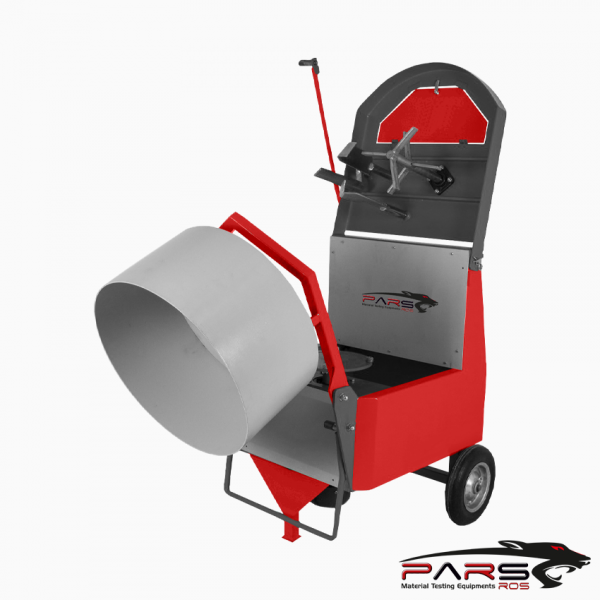

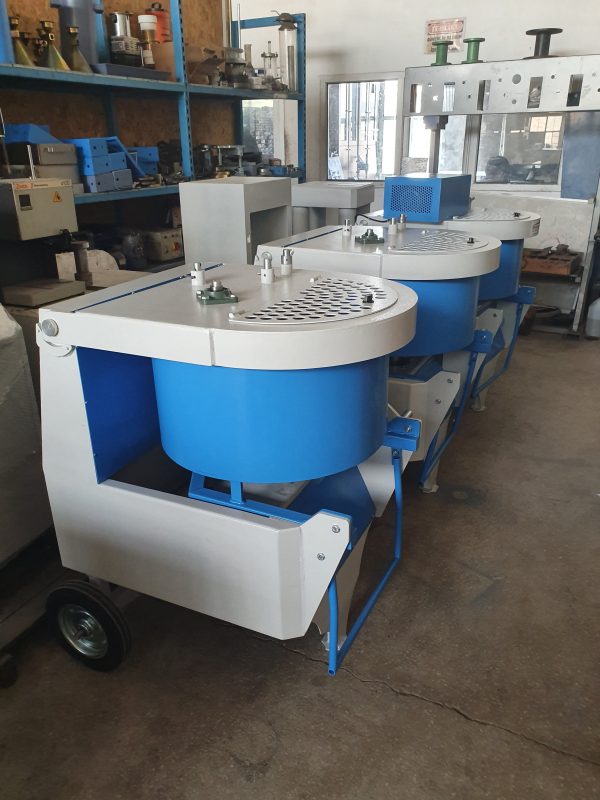

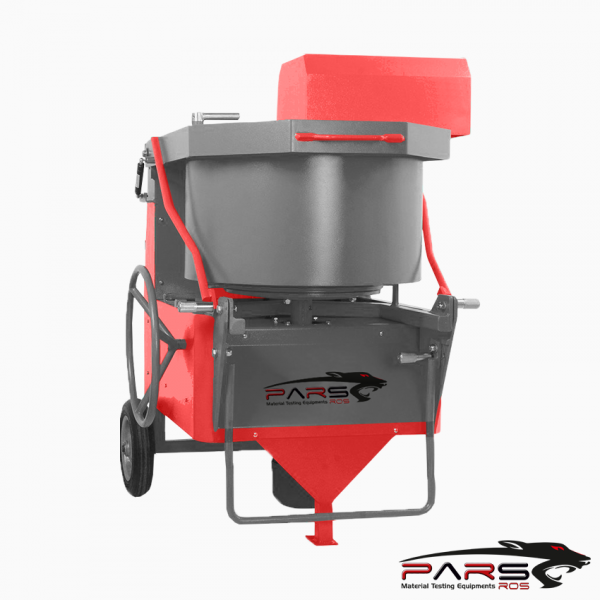

Pan Type Concrete Mixer
STANDARDS : EN 1766
Pan Type Concrete Mixer is designed for mixing fresh concrete in laboratory and is designed to obtain a homogeneous mixture.
Mixer has 3 blades .mixer is ability of of preparing more homogenous mixture in a short time through the second engine which rotates the stirring beater in the
opposite direction of the mixing drum’s rotation direction.

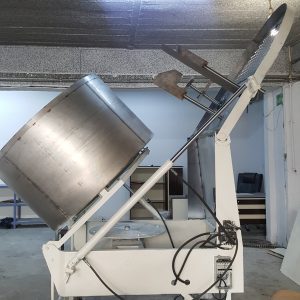

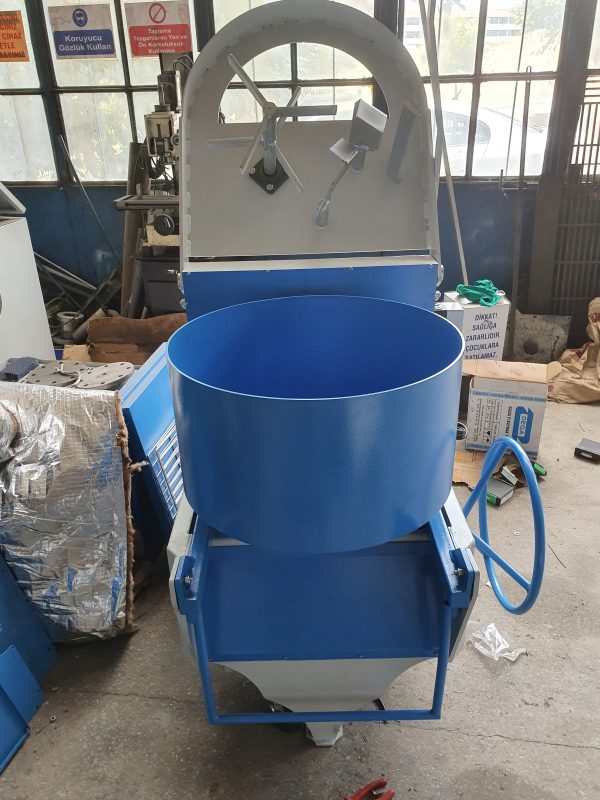

The mixer head lifts clear to provide maximum access to the pan and holds the mixing blades at a constant depth during the mixing operation.
The blades can be adjusted to suit the different types and volume of materials to be mixed.

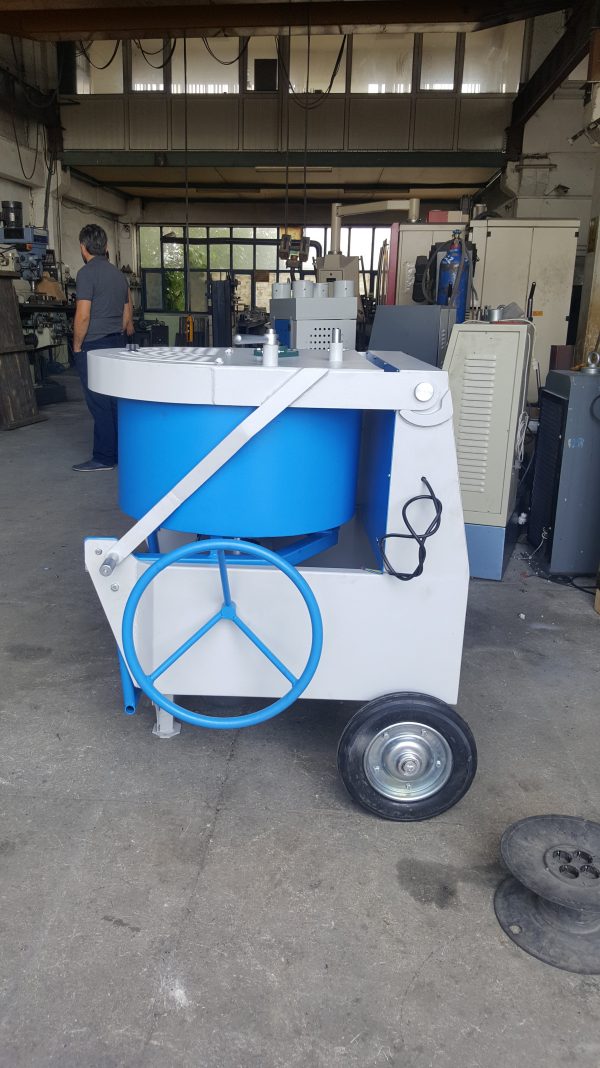

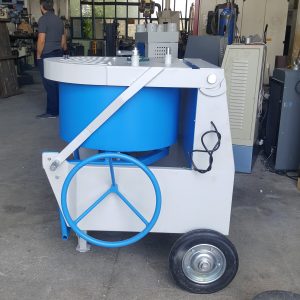

The pan type mixer is also equipped with rubber wheels which provide high portability.

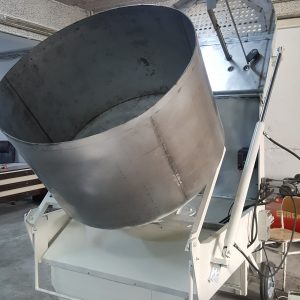

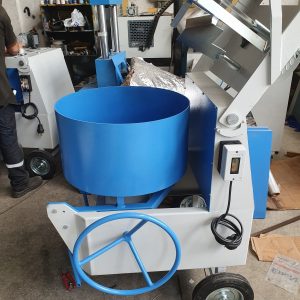

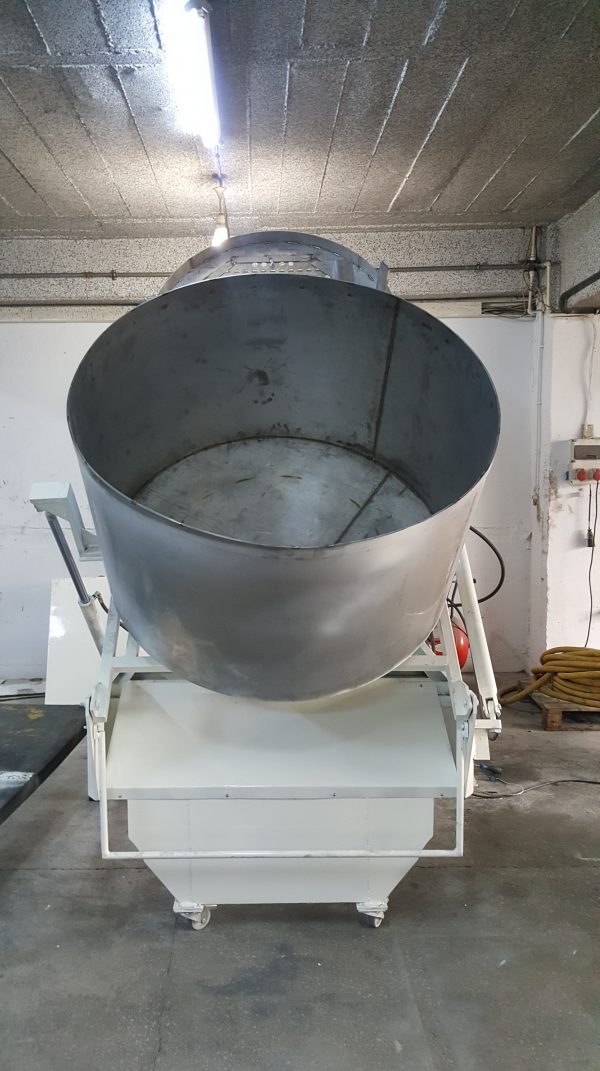

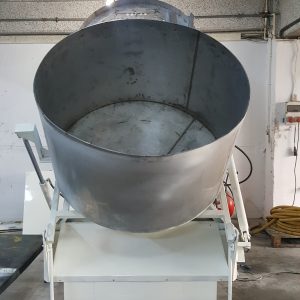

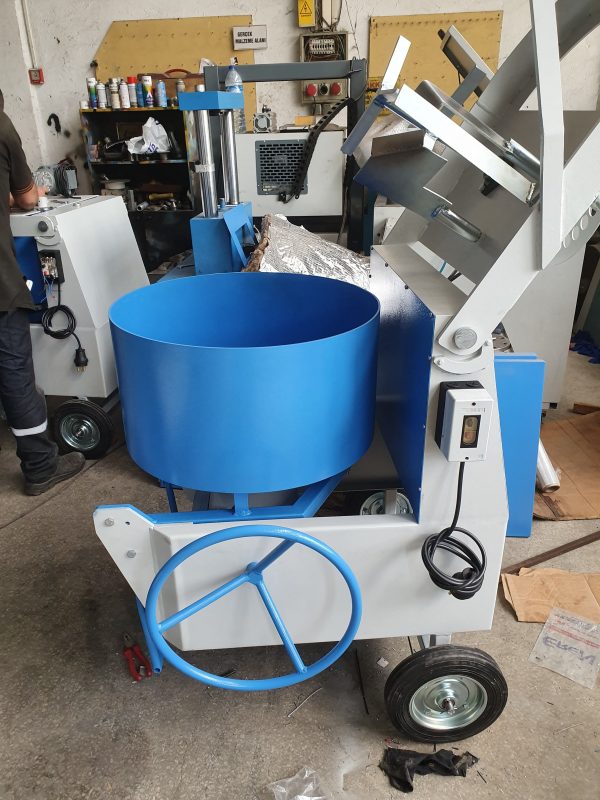

The mixing pan is removable and tilts for easy access to the pan and emptying on completion of the mixing operation.
The total volume of the pan is 100 liters but the effective capacity of the mixer is 56 liters.
The electronic parts of the mixer have IP 55 water and dust protection class.
All parts of the mixer are noncorrosive painted and galvanized

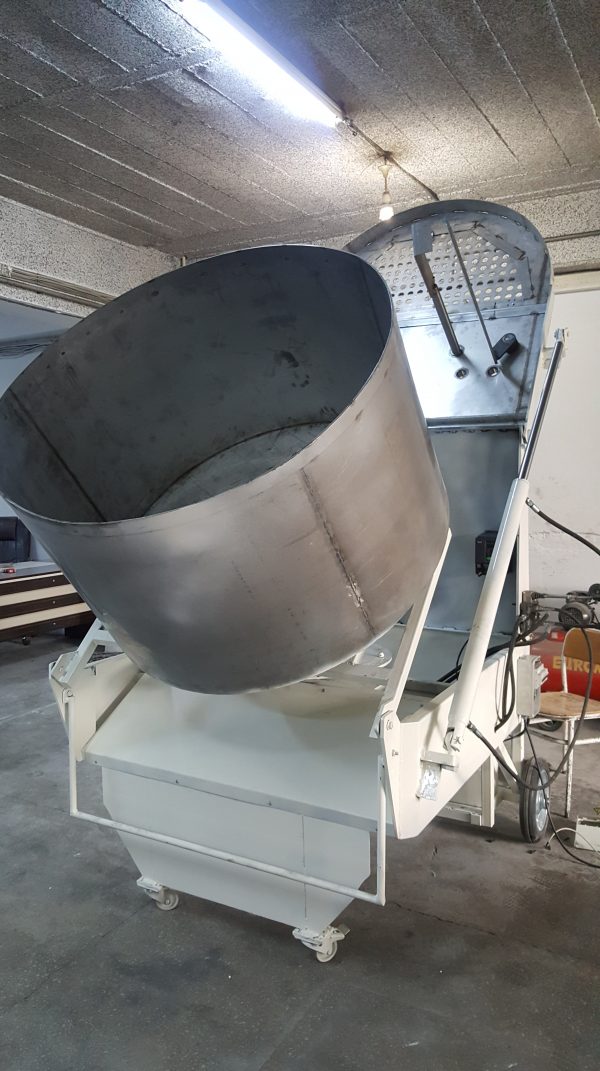

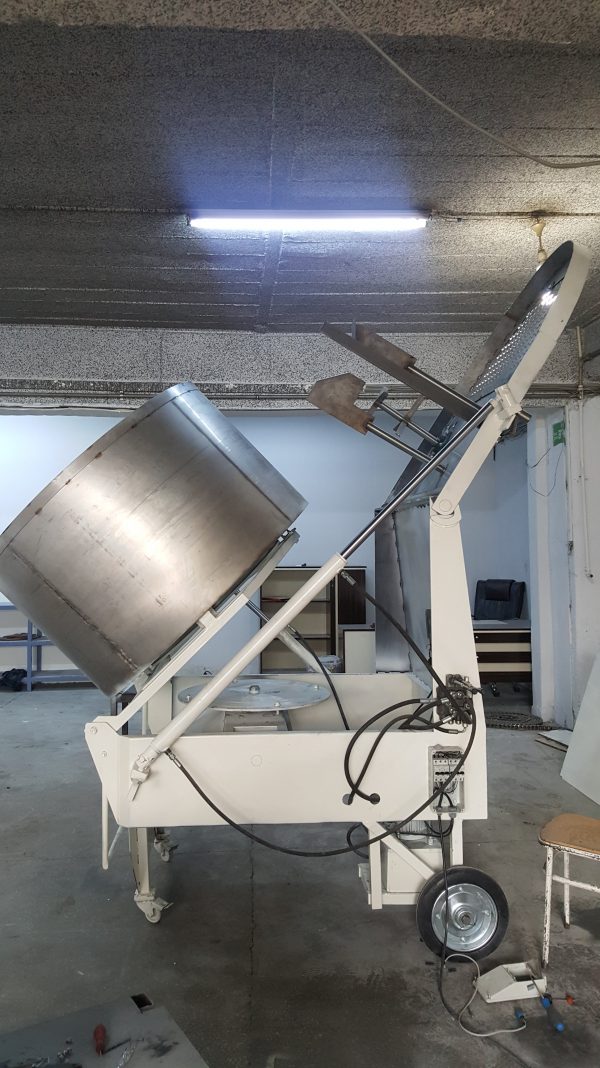

The mixing chamber can be opened to slope approximately 120 degrees by means of the threaded shaft.
The mixer is very easy to using and removing
| Product Code | PRS-BCMXPT |
| Capacity | 100 liters |
| Usable Volume capacity | 56 liters |
| Dimensions | 950x1000x1200 mm |
| Motor Power | 1500 Watt |
| Electrical Unit | 220V,50-60 Hz,1 ph |
| Weight | 245 kg |
