Original Schmidt Concrete Test Hammer , N Type (Proceq)
STANDARDS : EN 12504-2, 13791; ASTM C 805, C 5873; BS 1881:202; NFP18-417; DIN 1048 part 2; UNI 9189; ISO 8045; B 15-225; JGJ/T 23-2001 JJG 817-1993
Concrete Test Hammers are the most widely used portable NDT measuring instruments for a rapid assessment of the condition of a concrete structure.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-CORGSM1 | Original Schmidt Concrete Test Hammer N Type (Proceq) |
| PRS-CORGSM2 | Calibration Anvil |

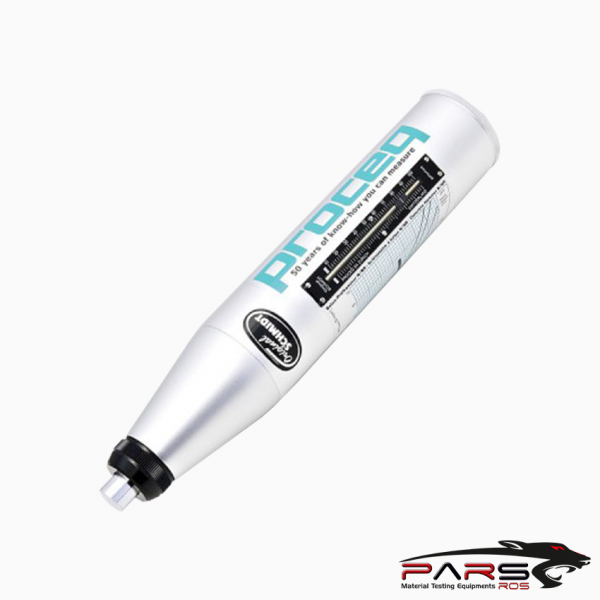

Original Schmidt Concrete Test Hammer , N Type (Proceq)
STANDARDS : EN 12504-2, 13791; ASTM C 805, C 5873; BS 1881:202; NFP18-417; DIN 1048 part 2; UNI 9189; ISO 8045; B 15-225; JGJ/T 23-2001 JJG 817-1993
Concrete Test Hammers are the most widely used portable NDT measuring instruments for a rapid assessment of the condition of a concrete structure.
The classic Original Schmidt Hammer that became the basis of every major rebound hammer testing standard worldwide.
Includes the NR and LR versions to record the rebound values directly on registration paper.
Type N/L: The benchmark against which all rebound hammers are compared and the basis of every international rebound hammer standard.
Available with different impact energies allowing customers to test a wide variety of materials and types of structure.
Type NR/LR: Ever popular version with impact values recorded as a bar chart on registration paper for ease of control.
Greatly simplifies the calculation of the rebound value and in checking the uniformity of the object under test. One roll of paper can record up to 4’000 impacts.

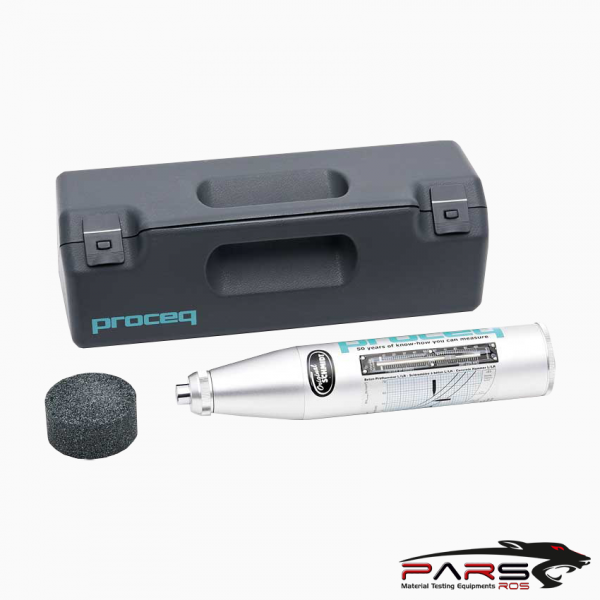

*** Original Schmidt Hammers are supplied with
Impact Device,
Carrying Case,
Grinding Stone,
Operating Instructions and Calibration Certificate.
Type NR and LR additionally with 3 rolls of registration paper.
| Measuring Range | 10-80 N/mm2 |
|---|---|
| Impact Energy | 2.207 Nm |
