Air Entrainment Meter

STANDARDS : EN 12350–7; ASTM C231; AASHTO T152

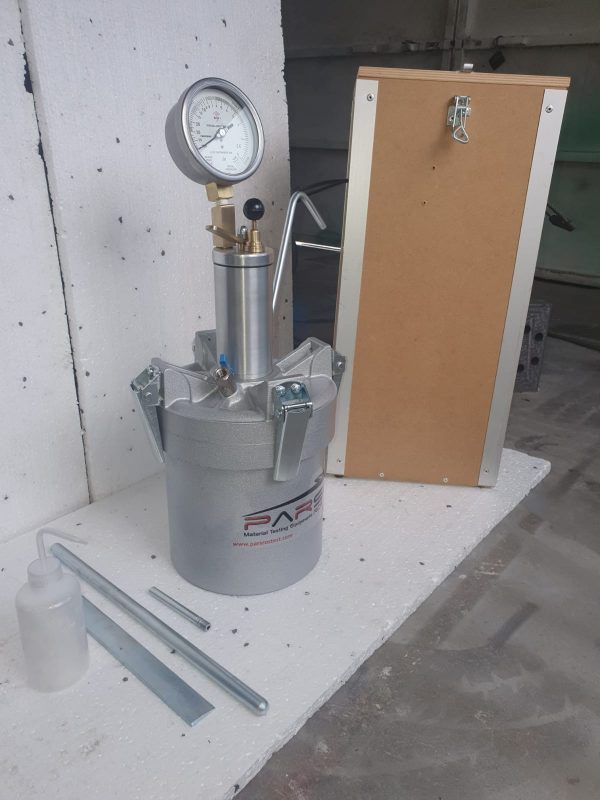

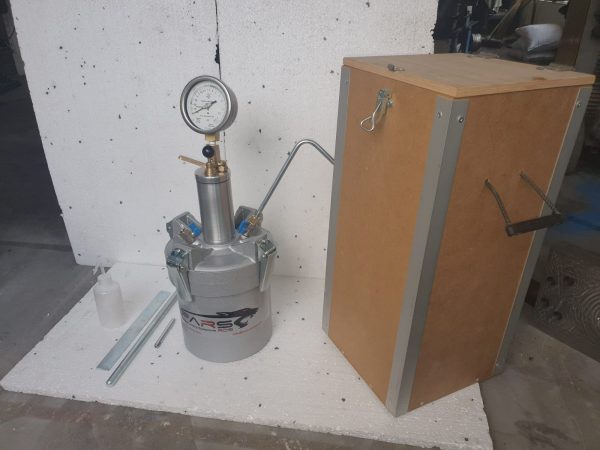

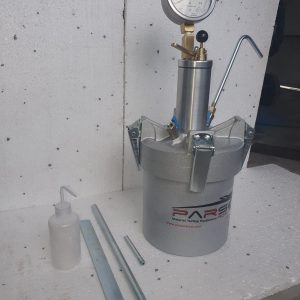

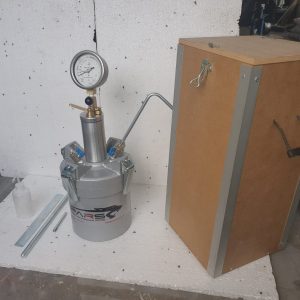

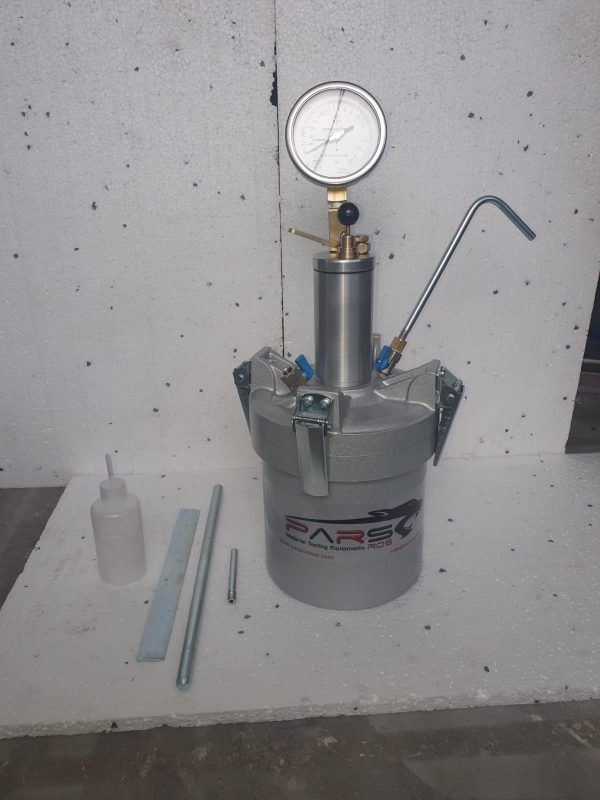

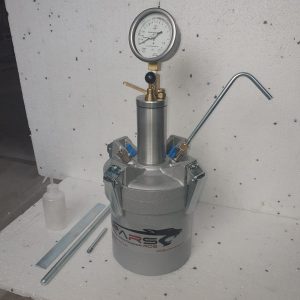

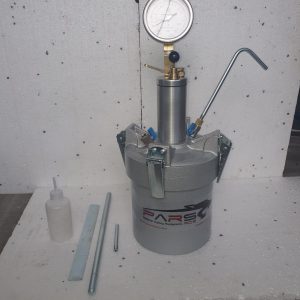

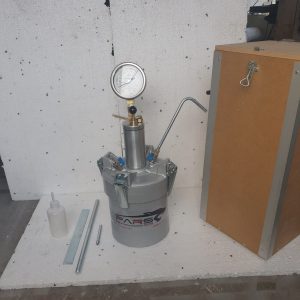

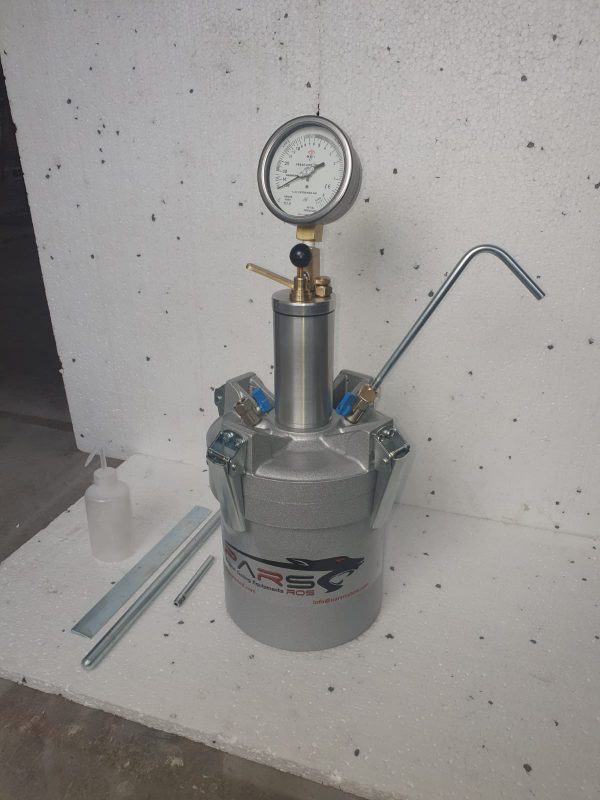

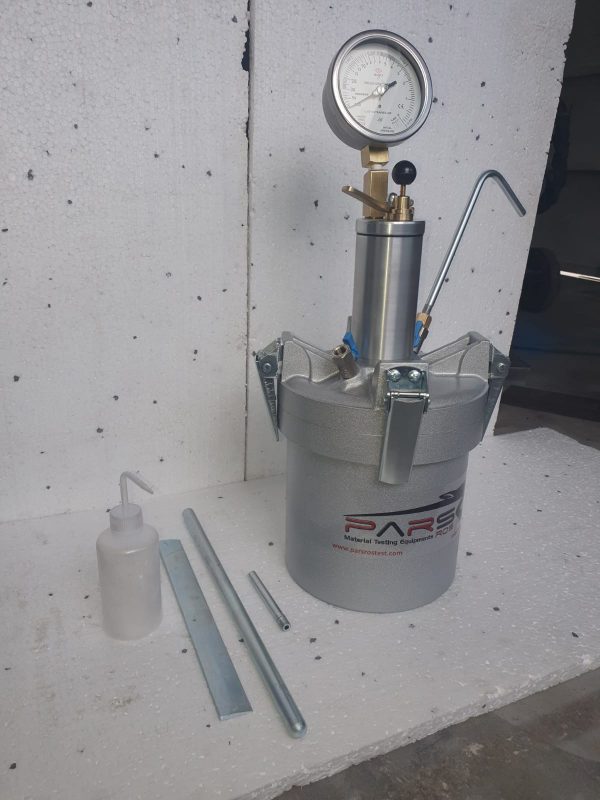

Apparatus is used to determine the air content of fresh concrete. It consists of a flanged 7 liter capacity cylindrical

vessel and cover assembly incorporating a large (90 mm dia.) pressure gauge, air pump and valves. It has a quick action clamping system.

Please Contact With Us For More Information

Description

Product Code Product Description
PRS-BAC0230 Air Entrainment Meter
PRS-BAC0232 Manometer
PRS-BTR16600 Tamping Rod Ø16×600 mm
PRS-BSE30030 Straight Edge 300x30x3 mm



Air Entrainment Meter

STANDARDS : EN 12350–7; ASTM C231; AASHTO T152

Air Entrainment Meter is used to determine the air content of fresh concrete. It consists of a flanged 7 liter capacity cylindrical vesseland cover assembly

incorporating a large (90 mm dia.) pressure gauge, air pump and valves. It has a quick action clamping system.

Direct pressure gauge reading to the nearest 0.1% up to 6% and 0.2% from 6 to 10%. It is not affected by changes in barometric pressure.

The meter measures up to 22% of entrained air. It is appropriate for aggregates size of maximum 63 mm.

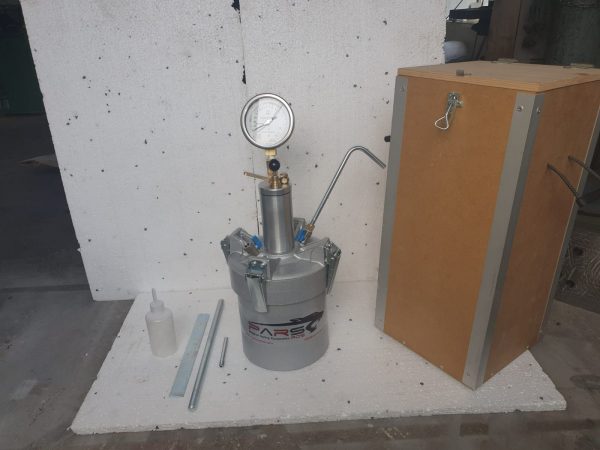

***  Apparatus  is supplied complete with;

Straight Edge

Tamping Rod

Wash Bottle. 250cc   J-Type pipe and an inner extension pipe for calibration

Reviews

There are no reviews yet.


Be the first to review “Air Entrainment Meter”

Capacity 7 litres
Air Content Range 0-10%
Graduations 0.1% up to 6&; 0.2% from 6 to %10
Dimensions 300x310x620 mm
Weight (approx.) 16 kg
