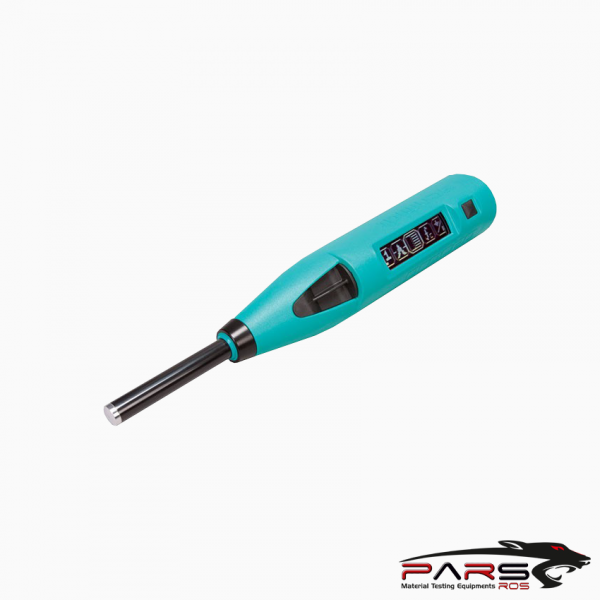

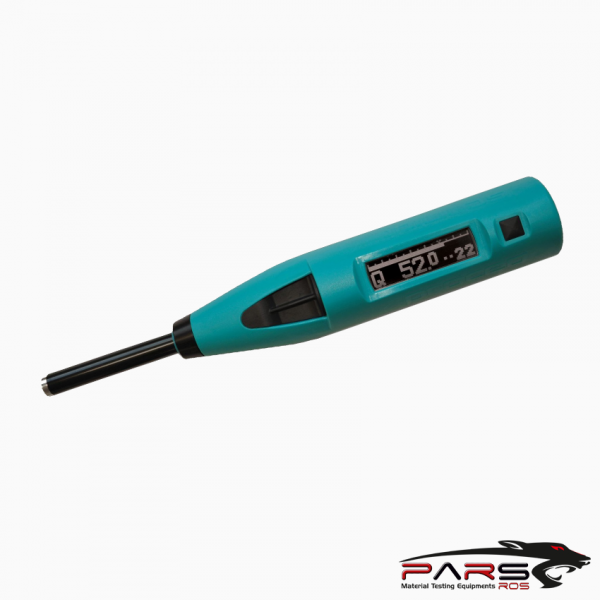

Proceq Silver Schmidt Concrete Test Hammer PC , N Type
Silver Schmidt Concrete Test Hammer is the world’s most advanced rebound hammer fully adapted specifically to the extremely varied concrete testing applications
(Testing on cores and blocks).
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-CPSILSCN | Silver Schmidt Concrete Test Hammer PC , N Type |
Proceq Silver Schmidt Concrete Test Hammer PC , N Type
Silver Schmidt Test Hammer (Proceq) is the world’s most advanced rebound hammer fully adapted specifically to the extremely varied concrete testing
applications (Testing on cores and blocks).
The Silver Schmidt incorporates statistical methods based on ASTM and ISRM recommendations and provides the user with the freedomto define his own statistical
process for determining a rebound number.
Features Impact Angle Independence: The rebound value is independent of the impact direction.
Optimized for Field Work: Tighter sealing against dirt and dust intrusion for longer life. Significantly lighter and more ergonomicthan the classic Schmidt hammer.
A large number of readings can be saved and downloaded later to a PC.
Preset Statistics: Statistics methods recommended by ISRM and ASTM are implemented into the hammer for automatic calculation ofthe rebound number.
The option is also there to define a user specific statistics method.
Unconfined Compressive Strength: ISRM recommends a correlation between UCS and the rebound value based on the formula UCS= aebR (where R is the rebound
value). A correlation in this format may be defined in the PC software and downloaded onto the Rock Schmidt.
E-Modulus: ISRM recommends a correlation between elastic modulus and the rebound value based on the formula Et = cedR (where Ris the rebound value).
A correlation in this format may be defined in the PC software and downloaded onto the Rock Schmidt.
Weathering Grade: Impacting on the same location twice can be used to correlate to weathering grade.
The ISRM recommended method has been included in the device.
*** Silver Schmidt Concrete Test Hammer is supplied complete with;
Battery Charger with USB Cable
Carrying Strap
DVD with PC software
Grinding Stone
Documentation
Carrying Bag
| Impact Energy | (N) 2.207 Nm, (L) 0.735 Nm |
| Spring Extension | 75 mm (2.95″) |
| Plunger Radius | 25 mm (0.98″ |
| Display | 17 x 71 pixels; graphic |
| Battery Lifetime | >5000 impacts between charges |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -10 to 70°C |
