Compression Test Device For Rock Specimens, ASTM

STANDARDS : ISRM | ASTM D7012

Compression Test Device For  Rock Core Specimen is strictly compliant to ASTM D7012 Rock core specimens Test Methods,

Please Contact With Us For More Information

Description

Product Code

Product Description

PRS-ROCOMJI-AS01 Compression Test Device For  Rock Core Specimens
PRS-ROCOMJI-AS02 Indirect Tensile (Brazil) Test Apparatus for NX (Ø54.7 mm) Rock Specimens, ISRM
PRS-ROCOMJI-AS03 Indirect Tensile (Brazil) Test Apparatus for HQ (Ø63,5 mm) Rock Specimens, ISRM
PRS-ROCOMJI-AS04 Indirect/Splitting Tensile Test Device for NX (Ø54.74 mm) Rock Specimens, ASTM



Compression Test Device For Rock Specimens, ASTM

STANDARDS : ISRM | ASTM D7012

Compression Test Device For  Rock Core Specimen is strictly compliant to ASTM D7012 Rock core specimens Test Methods,

In particular the spherical seat / compression plates / specimen diameters’ ratios fall within the prescriptions.

The Rock core should have a diameter from 54.7 mm (NX type) to 63.5 mm (HQ type).

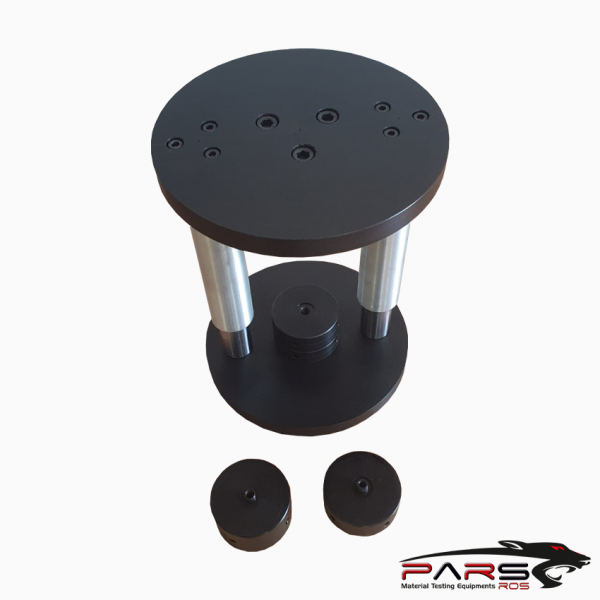

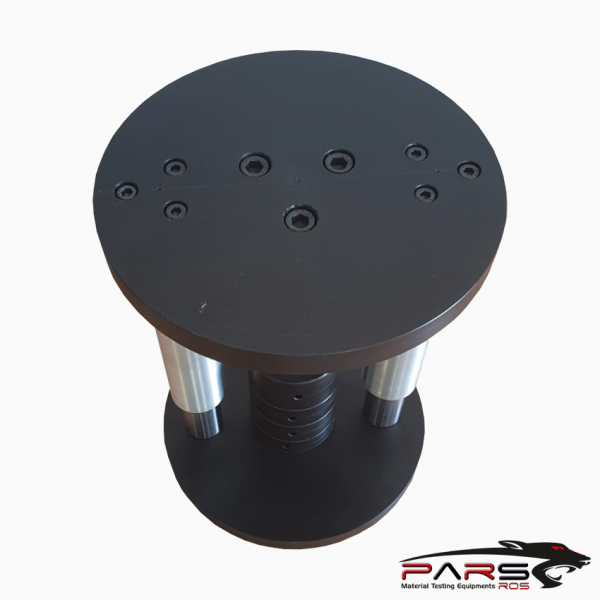

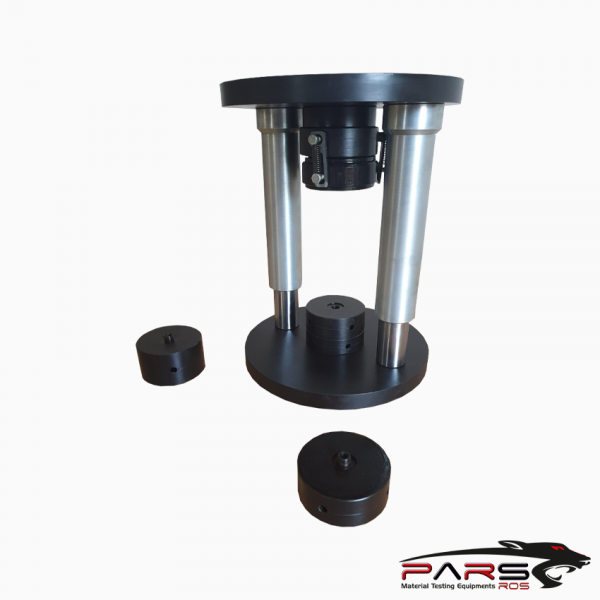

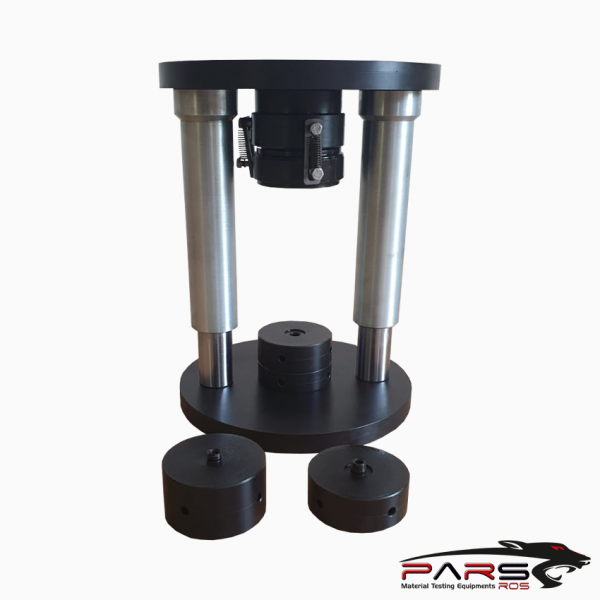

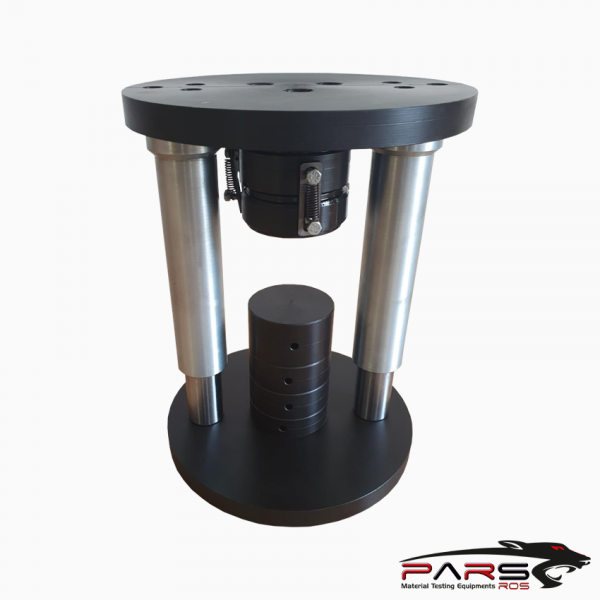

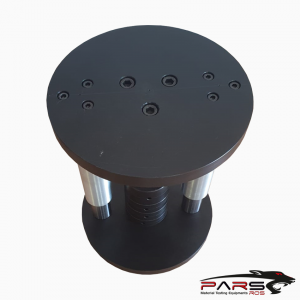

Compression Test Device For Rock Specimen consists of a heavy duty twin-column frame, a spherically seated upper platen hold by calibrated springs

and a lower platen centred on the frame base.

The high stiffness structure and the high performance steel of the spherical seat make this device particularly suitable for high strength rock specimen featuring

brittle properties and explosive failure.

Reviews

There are no reviews yet.


Be the first to review “Compression Test Device For Rock Specimens, ASTM”

Max. Loading Capacity 1200 kN
Platens Dia. 80 mm
Platens Hardness ≥ 58 HRC
Loading Head Stroke 66 mm
Vertical Clearance 167 mm
Overall Dimensions 249 mm dia x 333 mm height
Weight 30 kg



**** Supplied with distance pieces to reduce the vertical clearance: 2 pcs. h 30 mm and 1 pc. h 22 mm
