Ductility Testing Machine
ParsRos Düktilite Test Cihazı Aparatı

Ductility Testing Machine

STANDARDS EN 13398; ASTM D113, D6084; AASHTO T51 , EN 13589, 13398, 13703; ASTM D113, D6084; AASHTO T51, AASHTO T300

Ductility Testing Machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a constant speed

of 50 mm/min.

Please Contact With Us For More Information

Description

Product Code Product Description
PRS-ASFDTM60 Ductility Testing Machine, 220-240 V 50-60 Hz
PRS-ASFDTM80 Ductility Testing Machine with Cooling Unit, 220-240 V 50-60 Hz

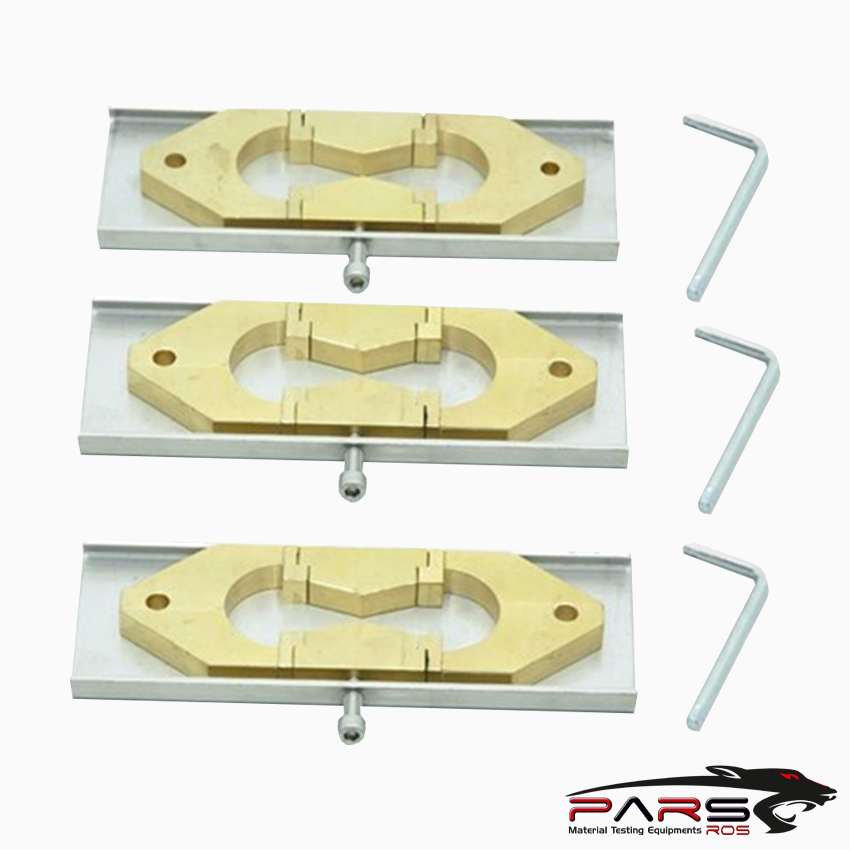

PRS-ASFDB02 Ductility Briquette Mould, ASTM D113 and AASHTO T51
PRS-ASFDB04 Ductility Mould Base Plate
PRS-ASFDB08 Ductility Mould, EN 13398

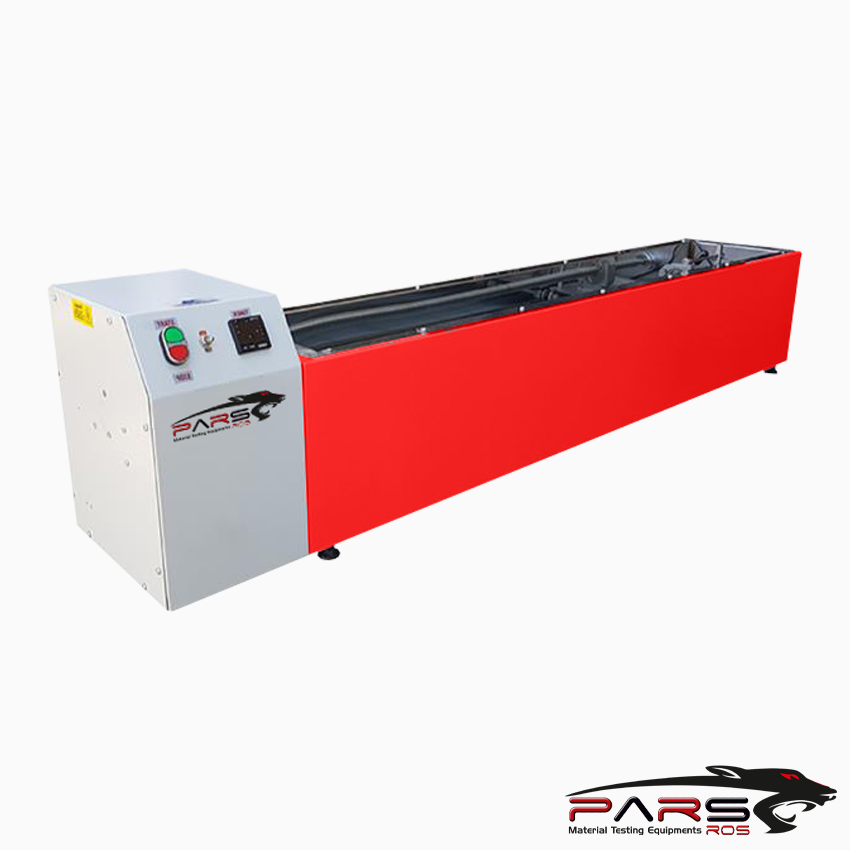

Ductility Testing Machine

STANDARDS EN 13398; ASTM D113, D6084; AASHTO T51 , EN 13589, 13398, 13703; ASTM D113, D6084; AASHTO T51, AASHTO T300

Ductility Testing Machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a constant speed

of 50 mm/min.

It is designed for testing 4 specimens simultaneously.

The Internal tank is made of stainless steel.

The bath is fitted with an immersion heater in order to obtain (in normal conditions), the 25°C test temperature.

Each machine comprises speed control and water circulator to maintain the homogenous water temperature.

The PRS-ASFDTM80 Ductility Testing Machine with Cooling Unit has the same specifications with PRS-ASFDTM60 Ductility Testing Machine but with an

additional cooling unit

** Ductility Moulds and Mould Base Plates should be ordered separately for all type machine.

Dimensions 300x1850x550 mm
Weight (approx.) 80 kg
Power 350 W
