- TECHNICAL SPECIFICATIONS
|Product Code||Product Description|
|PRS-A0520E||Vebe Consistometer, EN, 220-240 V 50-60 Hz|
|PRS-A0520A||Vebe Consistometer, ASTM C 1170, 220-240 V 50-60 Hz|
|PRS-A0520M||Vebe Consistometer, ASTM C 1176, 220-240 V 50-60 Hz|
STANDARDS : EN 12350-3, ASTM C 1170, C 1176
PRS-A0520E model consistometer conforms to EN 12350-3 for determining the consistency of fresh concrete by means of the Vebe time.

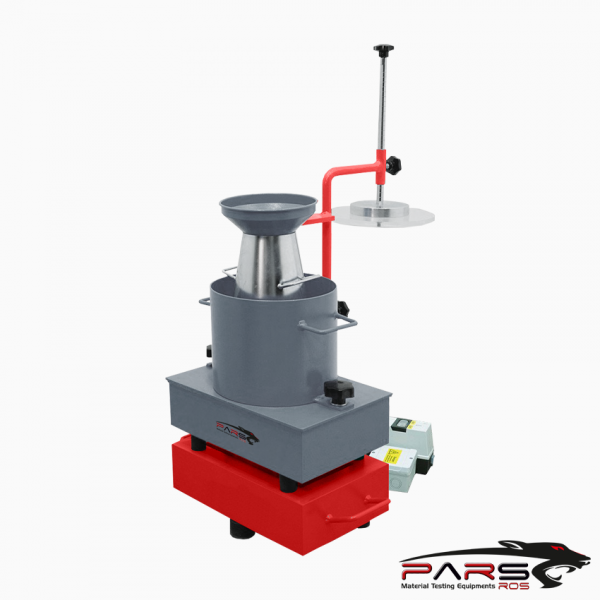

The unit consists of a vibrating table, cylindrical bucket, slump cone, thick transparent disc complete with filling funnel and tamping rod.
PRS-A0520A model consistometer conforms to ASTM C 1170 for determining consistency and density of roller- compacted Concrete.

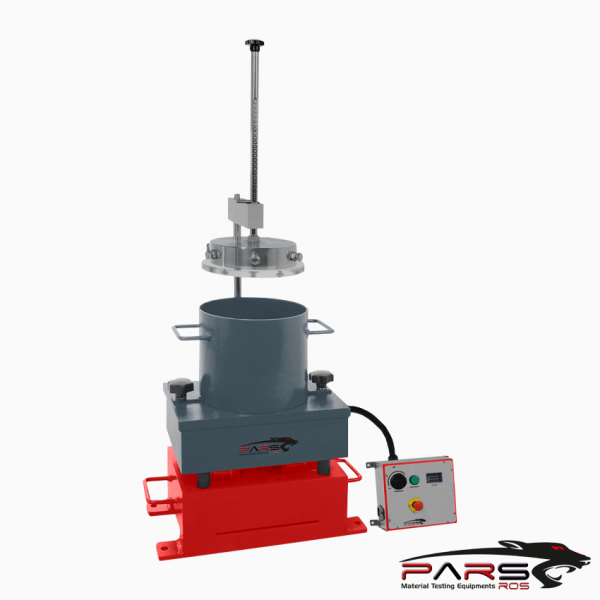

The unit consisrs of a vibrating table, swing arm with guide sleeve for the 50 lb sursage weihgt and test mold.
PRS-A0520M model consistometer conforms to ASTM C 1176 for making roller-compacted concrete in cylinder molds intended for use in testing .
The unit consists of a vibrating table, swing arm with guide sleeve for the 20 lb sursage weihgt and test cylinder.
|Dimensions||570x460x670 mm||460x350x730 mm||460x350x730 mm|
|Weight (approx.)||87 kg||135 kg||135 kg|
|Power||170 W||170 W||170 W|
