Vacuum Pyknometer ( Yale )

STANDARDS : ASTM D2041; TS EN 12697-5

Yale Pyknometer is used to determine the theoretical maximum specific gravity and density of non-compacted bituminous paving mixtures.

Please Contact With Us For More Information

Description

Product Code Product Description
PRS-ASVP00127 Large Size Heavy Duty Vacuum Pyknometer (Yale) 10 lt, for Rice Test
PRS-ROCSSHAKER Vibro-Deaerator, Timer Controlled 220-240V, 50-60Hz
PRS-GEVACP128 Dual Stage Vacuum Pump 128 lt/min Capacity, 220-240 V 50-60 Hz, 1ph
PRS-GGFF2000 Filter Flask  2000 ml
PRS-GVACDIS Vacuum Gauge, Analog, -100 kPa, 1 kPa graduated, dia: Ø 63 mm



Vacuum Pyknometer ( Yale )

STANDARDS : ASTM D2041; TS EN 12697-5

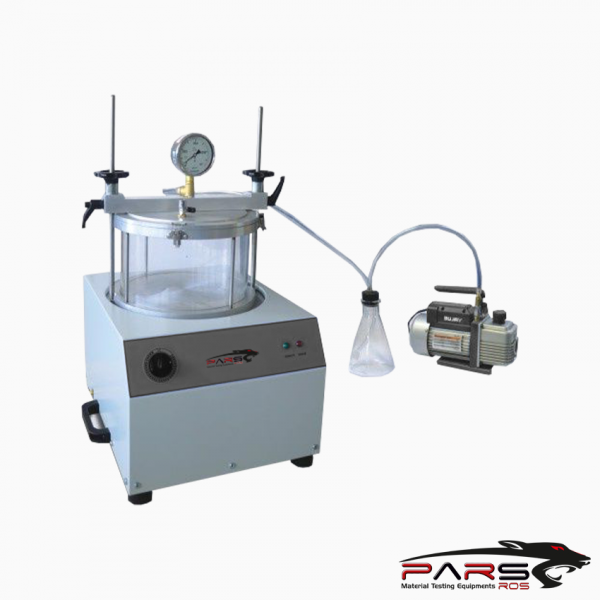

Vacuum Pyknometer (Yale Pyknometer) is used to determine the theoretical maximum specific gravity and density of non-compacted bituminous paving mixtures.

It is used together with a Vibra-Dearator, Vacuum Pump and filter flask or airdrying unit  water trap to complete the test set.

Percent air voids in compacted bituminous mixtures and the amount of bitumen absorbed by the aggregates can also be calculated with the test set.

Vacuum Pyknometer is manufactured from transparent plastic.

Vacuum Pumps are supplied with 3m plastic tube (Ø8mm OD) and 2 pcs. clamps.

Vacuum Gauge, Analog, Scale Range (-100/0 kPa), Accuracy (1.0 % of scale range), 1 kPa graduated,Ø63 mm.

Supplied with a valve, 4-way dispenser and muffler.


The Large Size Heavy Duty Vacuum Pyknometer is supplied complete with;

Vacuum Gauge

*** Vibra-Dearator , Vacuum Pump and filter flask or air drying unit  should be ordered seperately

Reviews

There are no reviews yet.


Be the first to review “Vacuum Pyknometer ( Yale )”

Dimensions
300x300x450 mm
Capacity        10 litre
Weight ( Approx. ) 7 kg
