Field Inspection Testing Kit

STANDARDS : ASTM D2573

Field Inspection Testing Kit is ideal for geotechnicians, geologists and agronomists.

The Test Set consists of Pocket Penetrometer and of the Field Inspection Pocket Vane Tester.

Please Contact With Us For More Information

Description

Product Code Product Description
PRS-SFITK20 Field Inspection Testing Kit
PRS-SFITK22 Field Inspection Pocket Vane Tester
PRS-SFITK22/1 Extension Rod
PRS-SFITK24 Heavy Duty Pocket Penetrometer, 0-10 kgf/cm2



Field Inspection Testing Kit

STANDARDS : ASTM D2573

Field Inspection Testing Kit is ideal for geotechnicians, geologists and agronomists.

The Test Set consists of Pocket Penetrometer and of the Field Inspection Pocket Vane Tester.

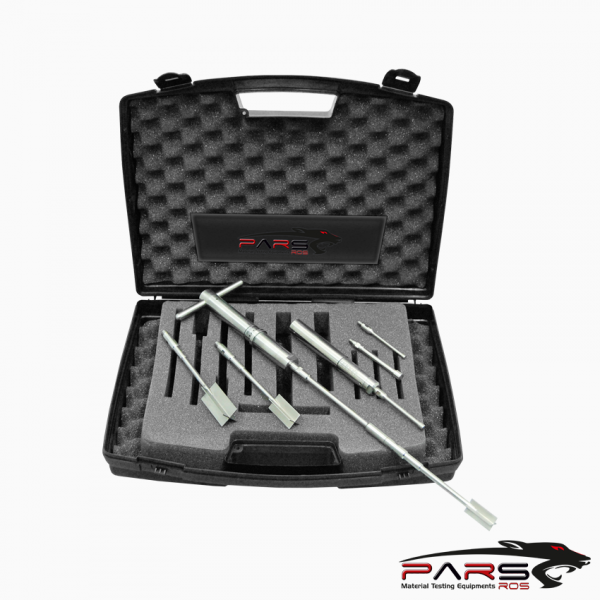

*** Field Inspection Testing Kit is supplied with a practical carrying case.

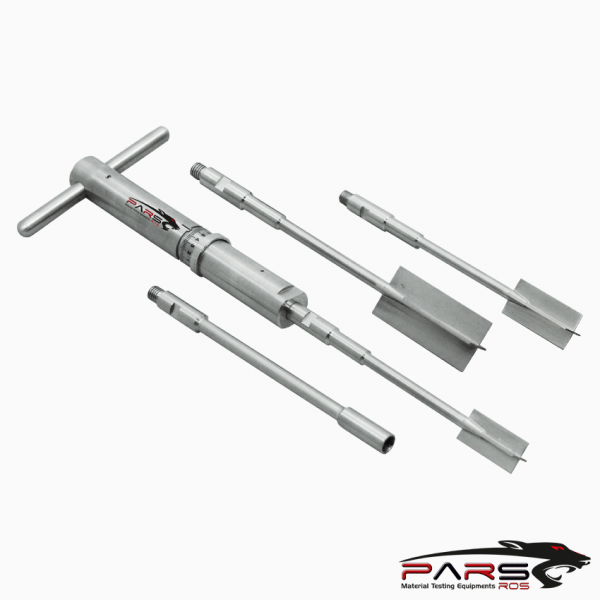

PRS-SFITK22 Field Inspection Pocket Vane Tester is especially designed to measure the undrained shear strength (CU) of cohesive soils, consists of

a cylindrical body with a torsional spring and three interchangeable vanes of different sizes used depending upon the expected strength of the soil.

The height/diameter ratio of all vanes is 2.

During operation the vane is driven for 5-6 cm into the soil and then turned with the handle.

Deep measures (i.e. on the top of undisturbed samples) can be obtained using the extension rod.

*** All stainless steel construction.

*** Extension rod should be ordered separately.

*** Field Inspection Pocket Vane Tester is supplied with a practical carrying case.

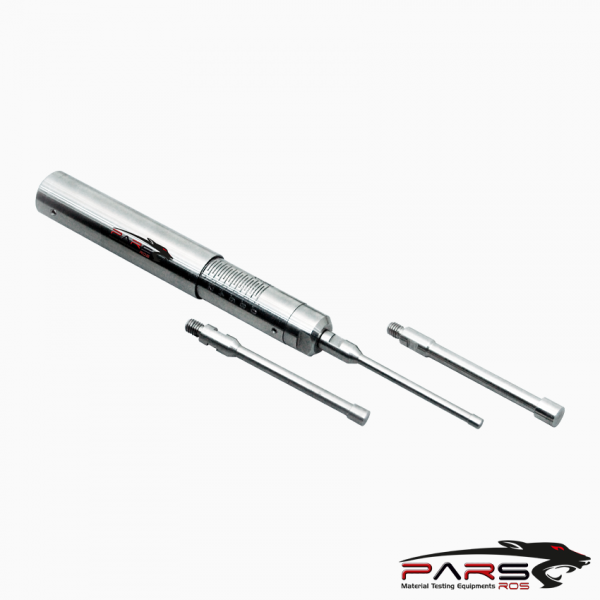

PRS-ZE0084 Heavy Duty Pocket Penetrometer is designed for making field classification of cohesive soils in terms of consistency, shear strength and

approximate unconfined compressive strength.

Heavy duty model is all stainless steel construction, three interchangeable tips: 4.5 mm dia. for very hard soil, 6.35 mm for medium and soft soil, 8.98 mm for

soft soil.

*** Heavy Duty Pocket Penetrometer is supplied complete with plastic case.

PRS-SFITK20 Field Inspection Testing Kit

Dimensions (packed) 240x210x50 mm
Weigth (approx.) 1.8 kg



PRS-SFITK22 Field Inspections Pocket Vane Tester

Vane Dimensions (height x dia.) 32×16; 40×20, 50.8×25.4 mm
Measuring Range 0 to 240 kPa (0-24 N/cm’)
Torque Value 5 N – m
Extension Rod 500 mm depth.
Overall Dimensions (assembled) 310×105 mm
Weight 1.3 kg



PRS-SFITK24 Heavy Duty Pocket Penetrometer

Measuring Range 0 to 10 kgf/cm’
Dimensions (assembled) 210 mm length x 20 mm dia.
Weight (approx.) 0.5 kg
