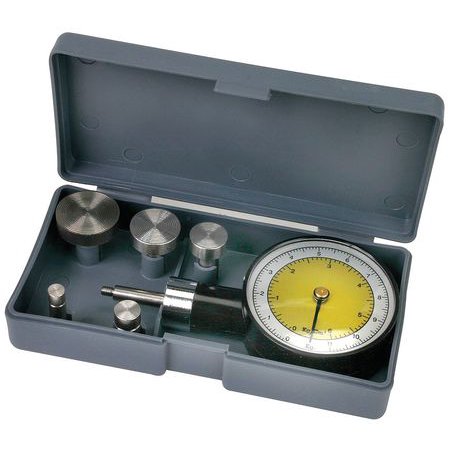

Pocket Dial Penetrometers

0 out of 5

Pocket Penetrometers are ideal instruments to determine the penetration resistance of cohesive soil, especially when various range measurements are required.

Please Contact With Us For More Information

Category: Soil Tags: Cone Penetrometer, Dynamic Cone Penetrometer, Liquid Limit Penetrometer, NF P94-052-1, Pocket Dial Penetrometer, Pocket Dial Penetrometers, Spring Type Proctor Penetrometer

Description
TECHNICAL SPECIFICATIONS

Description

Product Code	Product Description
PRS-SPDPEN60	Pocket Dial Penetrometer, 0-6 kgf/cm²
PRS-SPDPEN62	Pocket Dial Penetrometer, 0-14 kgf/cm²
PRS-SPDPEN65	Pocket Dial Penetrometer, 0-6, 0-11 kgf/cm²
PRS-SPDPEN68	Pocket Penetrometer, 0-5 kgf/cm²

Pocket Dial Penetrometers

Pocket Dial Penetrometers are ideal instruments to determine the penetration resistance of cohesive soil, especially when various range measurements

are required.

PRS-SPDPEN65 Pocket Penetrometer with respect to range and plunger diameters is avaliable for specific applications.

All Dial Penetrometer models have 60 mm.

Dial Diameter and designed with Peak Hold Feature.

PRS-SPDPEN65 Pocket Penetrometer is used for evaluating the angle of internal friction “j” of sandy soils and the cohesion “c” 2 inclay soils.

Dual scale: 0-6 kgf/cm for 6.35 mm diameter 2 plunger and 0-11 kgf/cm.

The PRS-SPDPEN68 Pocket Penetrometer is a portable and easy-touse equipment to perform field classification of cohesive soils interms of consistency, shear

strength and approximate unconfined compressive strength.

Product Code	Range (kg/cm’)	Plunger Dia.	Dimensions	Weigth (approx.)
PRS-SPDPEN60	0-6	6.35	100x200x60 mm	0.5 kg
PRS-SPDPEN62	0-14	6.35	100x200x60 mm	0.5 kg
PRS-SPDPEN65	0-6, 0-11	6.35-10-15-20-25	100x200x60 mm	0.5 kg
PRS-SPDPEN68	0-5	6.35	20x20x180 mm	0.5 kg
