Falling Head Permeability Test Set
STANDARDS : BS 5930:1999, / 1377, ASTM 46 / 47
Falling Head Permeability Set is used to study the behaviour of soil, particularly finegrained soils such as clay- like or silty soils, with respect to water flow.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-SFALHPS2320 | Falling Head Permeability Set |
| PRS-SFALHPS2322 | Falling Head Permeability Cell 100 mm dia. |
| PRS-SFALHPS2324 | Wooden Stand with 4 Manometer Tubes |
| PRS-SFALHPS2326 | Soaking Reservoir Tank |
Falling Head Permeability Test Set
STANDARDS : BS 5930:1999, / 1377, ASTM 46 / 47
The PRS-SFALHPS2320 Falling Head Permeability Test Set is used to study the behaviour of soil, particularly finegrained soils such as clay- like or silty soils,
with respect to water flow.

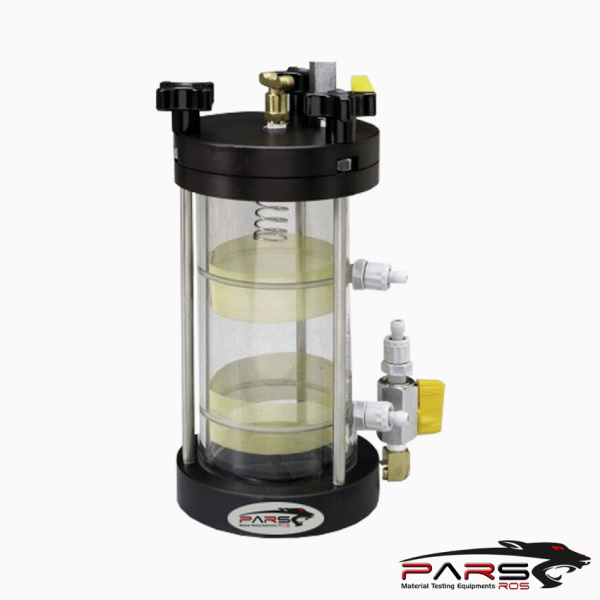

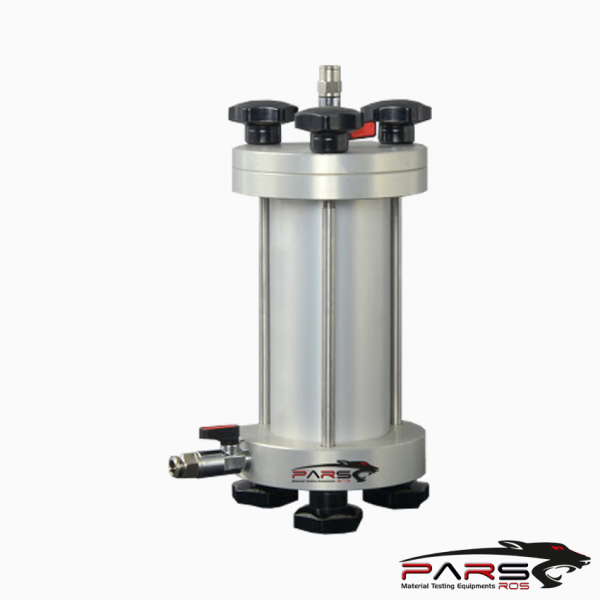

The Falling Head Permeability Cell is manufactured from plated steel with an inside diameter of 100 mm.
The PRS-SFALHPS2324 Wooden Stand is fitted with 4 glass Manometer Tubes of each 1500 mm long with inside diameters of about 21mm, 12 mm, 5 mm and
3.5 mm. All tubes have connection valves.

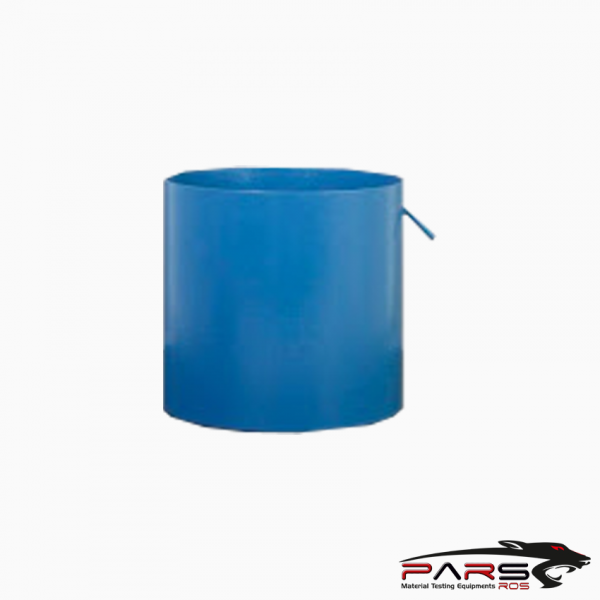

The PRS-SFALHPS2326 Soaking Reservoir Tank is manufactured from plated steel with an over-flow tube and is used for containingthe permeability cell during
the test.
Optional Equipment For De-Airing Water should be ordered separately.
*** Falling Head Permeability Test Set is supplied complete with
Ø 100 mm Falling Head Permeability Cell
Wooden Stand with 4 manometer tubes
Soaking Reservoir Tank
3 m Hose
| Product Code | Dimensions | Weight (approx.) |
| PRS-SFALHPS2322 | 150x150x260 mm | 3 kg |
| PRS-SFALHPS2324 | 230x100x1700 mm | 6.6 kg |
| PRS-SFALHPS2326 | 320x320x250 mm | 3.6 kg |
