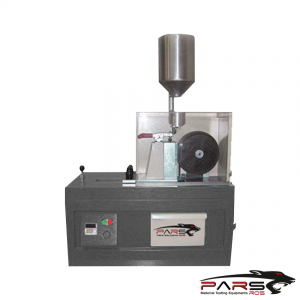

Wide Wheel Abrasion Testing Machine
Wide Wheel Abrasion Testing Machine is designed for determining the resistance to abrasion/wear of natural stones and concrete products used for paving.
The abrasion wheel is 70 mm thick and rotates at a speed of 75 rpm.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-AWW0106 | Wide Wheel Abrasion Testing Machine, 220-240 V 50 Hz (110 V 60 Hz version is available upon request) |
| PRS-AWW0106/1 | Wide Abrasion Wheel |
| PRS-AWW01106 | Abrasive Corundum Sand 25 kg for PRS-AWW0106 and PRS-AWW01306 |
| PRS-AWW01306 | Calibration Marble for PRS-AWW0106 |
| PRS-AWW01206 | Narrow Wheel Abrasion Testing Machine, 220-240 V 50 Hz (110V 60Hz version is available upon request) |
| PRS-AWW01306/1 | Narrow Abrasion Wheel for PRS-AWW01306/1 |
| PRS-AWW01006 | Mould, EN 12808-2, Polyethylene, 100 ±1×100 ±1×10 ±1 mm, |
Wide Wheel Abrasion Testing Machine
STANDARDS
Wide Wheel : EN 1338, 1339, 1340, 1341, 1342, 13748-1,13748-2, 14157
Narrow Wheel: 10545-6, 12808-2
Wide Wheel Abrasion Testing Machine is designed for determining the resistance to abrasion/wear of natural stones and concrete products used for paving.
The abrasion wheel is 70 mm thick and rotates at a speed of 75 rpm.
The machine is equipped with adigital counter which stops the machine at the end of a preset number of revolutions.
Narrow Wheel Abrasion Testing Machine is designed for determining the resistance to abrasion of unglazed tiles, grouts used for tiles and clay pavers.
The abrasion wheel is 10 mm thick.
*** Abrasive corundum sand, calibration marble (boloneisse) and mould (for EN 12808-2) should be ordered separately.
| Dimensions | 620x670x1350 mm |
| Weigh (approx.) | 130 kg |
| Power | 370 W |
