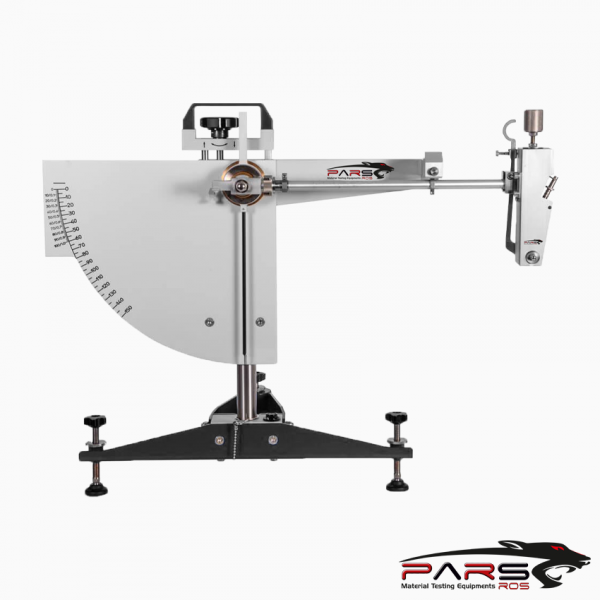

Skid Resistance and Friction Tester
Skid Resistance and Friction Tester is used for the measurement of surface friction properties.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-ASR0930/E | Skid Resistance and Friction Tester (Skid Tester), EN 1097-8 |
| PRS-ASR0930/A | Skid Resistance and Friction Tester (Skid Tester), ASTM E303 |
| PRS-ASR0932/TRL | Mounted Rubber Slider for Polished Stone Value Test (PSV laboratory), TRL Rubber, With Conformity Certificate, 32 mm width |
| PRS-ASR0933/TRL | Mounted Rubber Slider for Site Use, TRL Rubber, With Conformity Certificate, 76mm width |
| PRS-ASR0932/4S | Mounted Rubber Slider, 4S rubber, 32 mm width |
| PRS-ASR0933/4S | Mounted Rubber Slider, 4S rubber, 76 mm width |
| PRS-ASR0934 | Metal Base Plate for Polished Stone Value Specimen Clamping, |
| PRS-ASR0935 | Metal Base Plate for Surface Friction Properties for Natural Stones (EN 1341, EN 1342) and Concrete Paving, Blocks (EN 1338) |
Skid Resistance and Friction Tester
STANDARDS : EN 1097-8, 1338, 1341, 1342, 13036-4; ASTM E303
Skid Resistance and Friction Tester is used for the measurement of surface friction properties.
The apparatus is suitable for both site and laboratory applications and for Polished Stone Value tests using curved specimens from accelerated polishing tests.
A Slider lifting system is integrated in the pendulum foot, which guarantees reliable adjustment operations.
Skid Tester provides following features
New low friction release mechanism of the pendulum arm for better accuracy.
Extremely light pointer, for high precision result
Stiff and stout twin column structure
Easy and reliable height adjusting system
Integrated additional scale for tests on PSV specimens
Complete with traceability certificate to EN 1097-8 or ASTM E303
The Skid Resistance and Friction Tester is supplied complete with;
Additional Scale, for test on polished stone value specimens,
Rubber Sliders, for site use – 3 units,
Thermometer, 0 to +220°C for surface temperature measurement,
Washing Bottle, for surface wetting – 1 L,
Tool Set with Case for machine assembly,
Ruler for sliding length verification,
Carrying case
| Dimensions | 790x760x320 mm |
| Weight (approx.) | 34 kg |
