Vicat Test Sets
STANDARDS : EN 196-3, 480-2; ASTM C187, C191; AASHTO T129, T131
Vicat Set is used for the determination of the setting time and consistency of cement by Vicat Method.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-CEMVTS15/A | Vicat Test Set ASTM |
| PRS-CEMVTS15/E | Vicat Test Set EN |
| PRS-CEMVTS16 | Vicat Apparatus (Frame) |
| PRS-CEMVTS17/E | Vicat Mould EN Base ID 80 mm, Top ID 70 mm, Height 40 mm |
| PRS-CEMVTS17”/A | Vicat Mould ASTM Base ID 70 mm, Top ID 60 mm, Height 40 mm |
| PRS-CEMVTS18/E | Initial Vicat Needle EN 1.13 mm dia. |
| PRS-CEMVTS18/A | Vicat Needle ASTM 1 mm dia. |
| PRS-CEMVTS19 | Final Vicat Needle EN 1.13 mm dia. |
| PRS-CEMVTS20 | Consistency Plunger 10 mm dia. |
| PRS-CEMVTS21 | Supporting Glass Plate |
| PRS-CEMTDIS | Transfer Dish |
| PRS-CEMGT110 | Glass Thermometer Max. 110°C |
| PRS-CEMAW700 | Additiniol Weight, 700 gr, EN 480-2 |

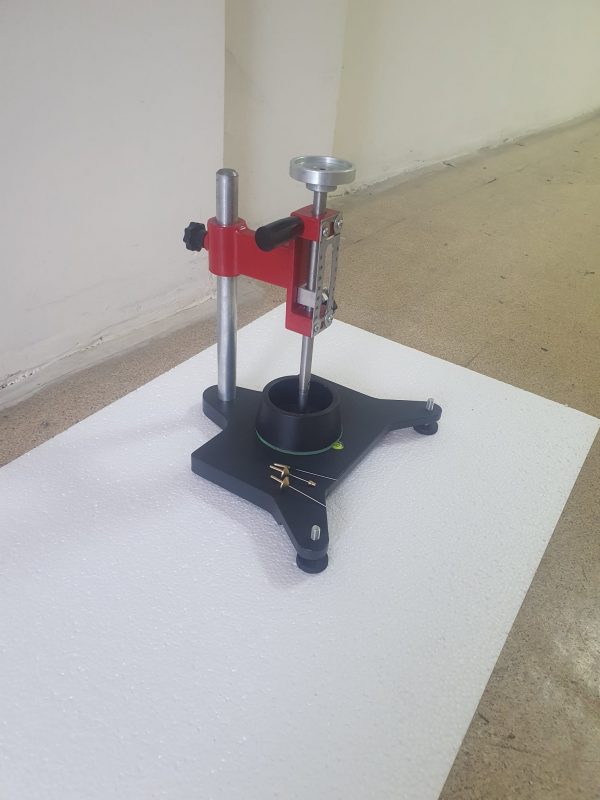

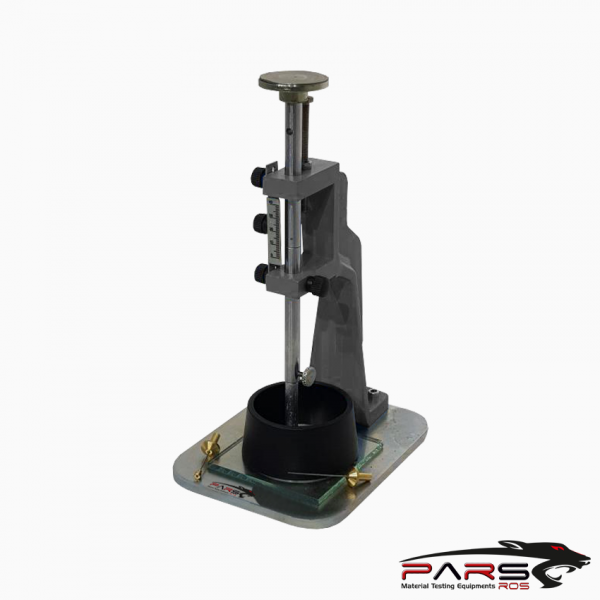

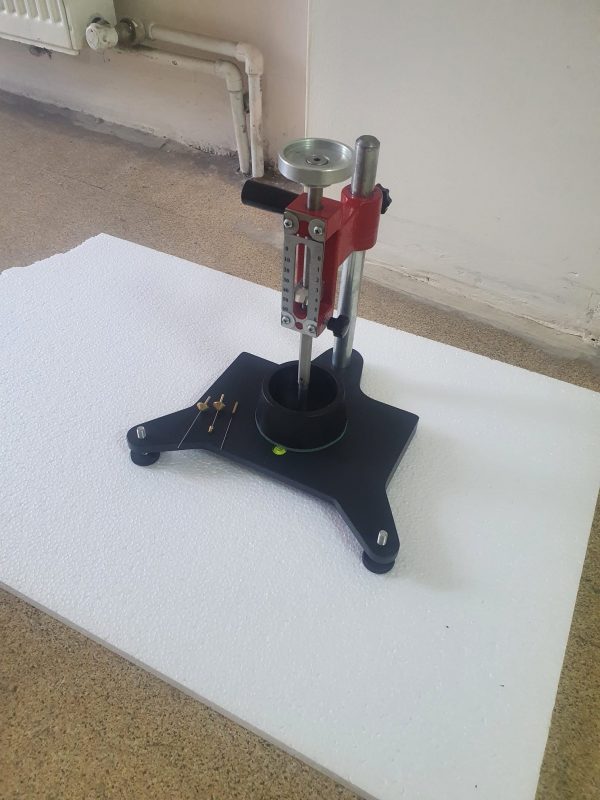

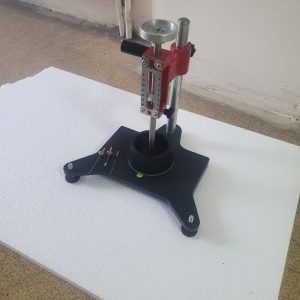

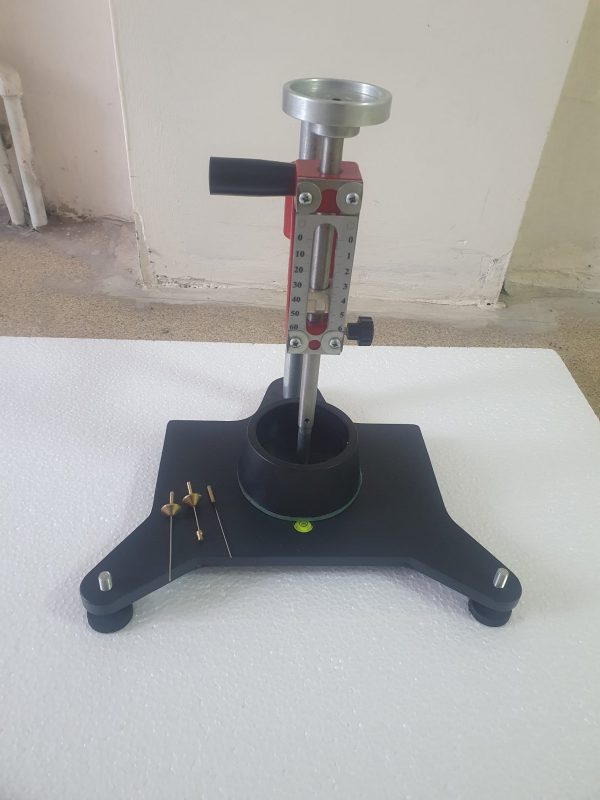

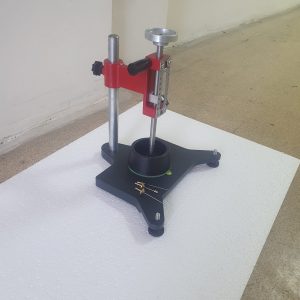

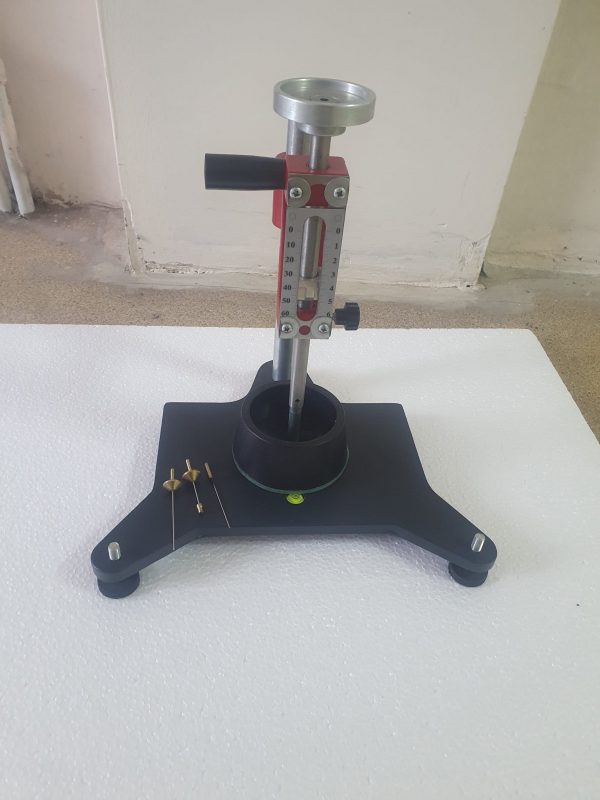

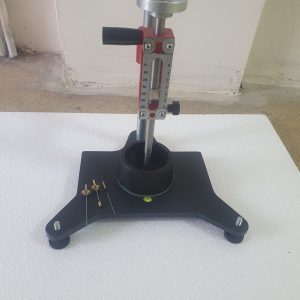

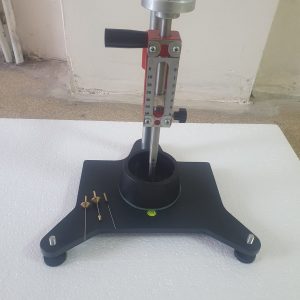

Vicat Test Sets
STANDARDS : EN 196-3, 480-2; ASTM C187, C191; AASHTO T129, T131
Vicat Test Set is used for the determination of the setting time and consistency of cement by Vicat Method.
Transfer Dish which is used as a Water Wessel EN, for layering the vicat mould under water.
*** Test Set is supplied complete with;
Vicat Mould

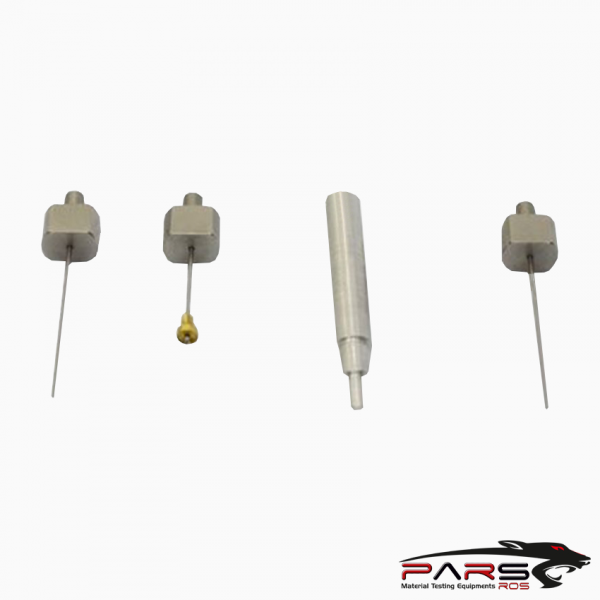

Initial and final Needles (for EN )
Vicat Needle (for ASTM)
Consistency Plunger
Supporting Plate
Glass Thermometer
Transfer Dish (for EN)
| Dimensions | 150x190x318 mm |
| Weight (approx.) | 3 kg |
