Two Gang Cement Shrinkage Mould 1 x 1 x 10 ” ( inch )

Description

Product Code	Product Description
PRS-CM0033-2-1	Two Gang Cement  Shrinkage Mould 1 x 1 x 10 ”  ( inch )



Two Gang Cement Shrinkage Mould 1 x 1 x 10 ” ( inch )

STANDARDS:  ASTM C227 , ASTM C1260 , ASTM C1012/1012M , ASTM C151/151M , ASTM C157/157M , ASTM C490/490M , AASHTO R 70M/R 70 , AASHTO T 107M/T 107

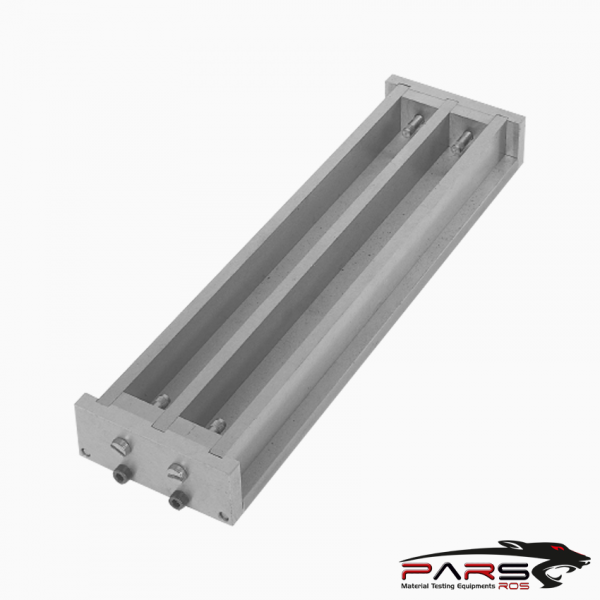

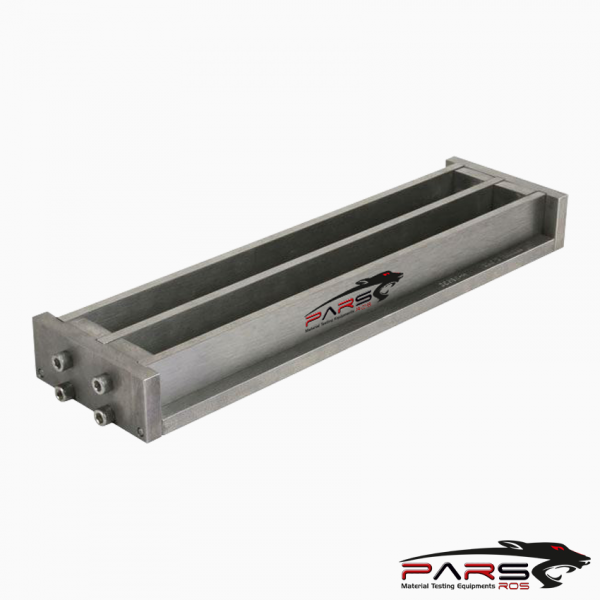

Cement  Shrinkage Mould,( Two Gang  ) 1x1x10in (25 x 25 x 254 mm) forms 10in effective gauge length prism test bars.

Testing applications include potential alkali reactivity, expansion, and volume, length, and linear change. It is also used with a Length Comparator to measure

Portland cement paste, mortar, and concrete prism samples.

The mold has a base plate, removable partitions and end plates constructed of corrosion-resistant steel to provide required length of 10in (254mm) between ends

of Gage Studs cast in ends of bars.

Dimensions from outside end of gage studs are 11.625in (296mm) with specimen cross sections of 1x1in (25x25mm).

---

Features

Made of corrosion-resistant steel

Suited for testing different types of concrete material

Product Code	PRS-CM0033-2
Dimensions	1 x 1 x 10 inch
Weight (approx.)	6 kg
