Cone Penetrometer

Semi-Automatic Digital Cone Penetrometers

STANDARDS : BS 1377:2; NF P94-052-1; CEN ISO/TS 17892-6, 17892-12

Cone Penetrometer is used to determine the moisture content at which clay soils pass from a plastic to a liquid state, and used also for the determination of

undrained shear strength.

Please Contact With Us For More Information

Description

Product Code

Product Description

PRS-SSADCP 0210 Semi-Automatic Penetrometer for Liquid Limit, 220-240 V 50-60 Hz
PRS-SSADCP 0210 / 110 Semi-Automatic Penetrometer for Liquid Limit,110 V 60 Hz
PRS-SSADCP 0212 Liquid Limit Penetration Test Cone 30° Angle,Stainless Steel
PRS-SSADCP 0213 Cone Test Gauge
PRS-SSADCP 0214 Liquid Limit Penetration Test Cone 60° Angle,Stainless Steel
PRS-GMCT15 Moisture Content Tin with Lid Ø:55 mm x h:35 mm, Aluminum
PRS-GMCT25 Moisture Content Tin with Lid 75 mm x h:50 mm, Aluminum



Semi-Automatic Digital Cone Penetrometers

STANDARDS : BS 1377:2; NF P94-052-1; CEN ISO/TS 17892-6, 17892-12

Cone Penetrometer is used to determine the moisture content at which clay soils pass from a plastic to a liquid state, and used also for the determination of

undrained shear strength.

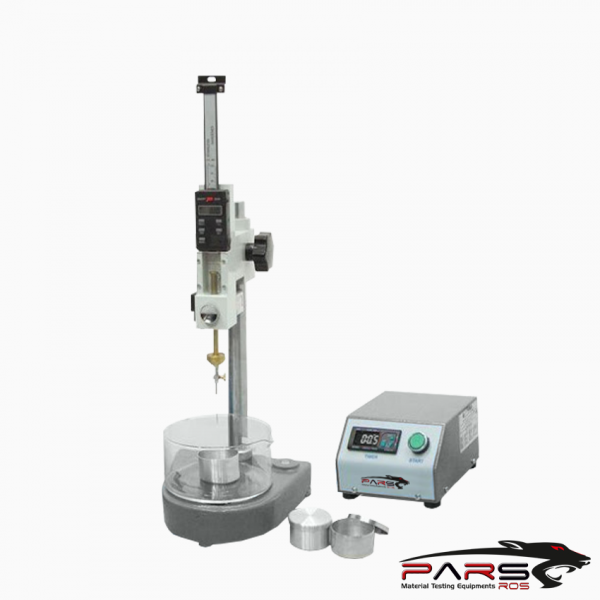

The Semi-Automatic Penetrometer for Liquid Limit consists of a cast iron base with course and fine leveling screws,  a digital penetration measurement gauge

0.01 mm resolution/readibility  and an automatic penetration timer unit.

It  is equipped with a digital, 99 second timer, which can be set to the standard 5 second free-fall time or to some other setting for customized tests.

When engaged the timer will allow the needle to free fall into the sample for the specific time interval and then lock the needle from advancing while providing a

direct reading of the test results. 320 g weight should be added to the 30° angle cone to get a total weight of 400 g for the shear strength test.


*** Semi-Automatic Cone  Penetrometer for Liquid Limit supplied complete with;

Automatic Penetration Timer Unit,

30° Penetration Cone

Sample Cups, 3 pcs. Aluminium, Ø55 mm x h:35 mm.

Reviews

There are no reviews yet.


Be the first to review “Semi-Automatic Digital Cone Penetrometers”

Dimensions 220x400x550 mm
Weight (approx.) 16 kg
