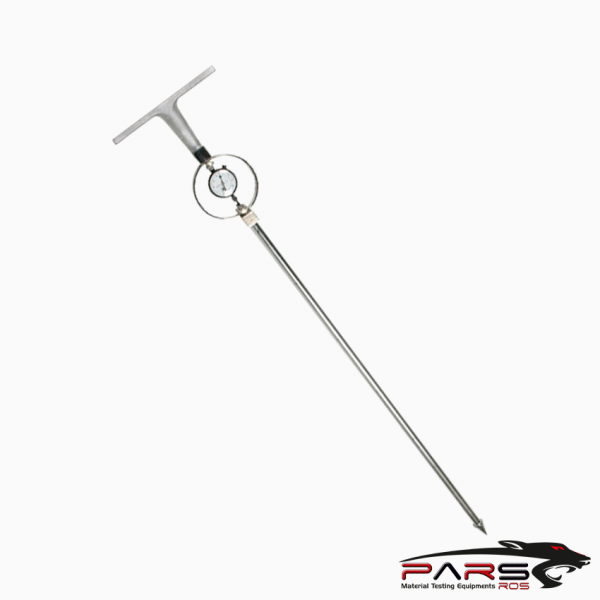

Proving Ring Penetrometer

Proving Ring Penetrometer

STANDARDS : TS 1900-1;ASTM D2937

Proving Ring Penetrometer is used to determine the bearing capacity of subgrades, or to measure soil compaction.

Light and easy to handle in the field.

Please Contact With Us For More Information

Description

Product Code Product Description
PRS-ZERINGPEN Proving Ring Penetrometer



Proving Ring Penetrometer

STANDARDS : TS 1900-1;ASTM D2937

It  is used to determine the bearing capacity of subgrades, or to measure soil compaction.

Light and easy to handle in the field.

A rapid means of determining the penetration resistance of soil in shallow exploration surveys.

Includes: 30°, 1 sq. in. (6.45 sq cm) cone; 250 lb. (1.1kN) capacity proving ring; brake type dial indicator, holds final reading until manually released; 3/4” (19mm) dia.

Shaft, graduated at 6”, (152mm) intervals; 3/4” (19mm) dia. extension rod, graduated at 6” (152mm) intervals; cast aluminum T-handle.

Reviews

There are no reviews yet.


Be the first to review “Proving Ring Penetrometer”

Weight 6,8 kg
