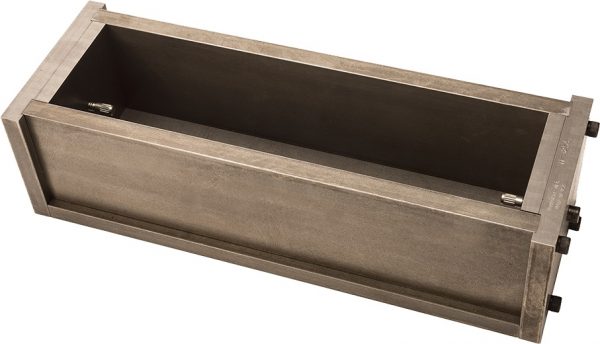

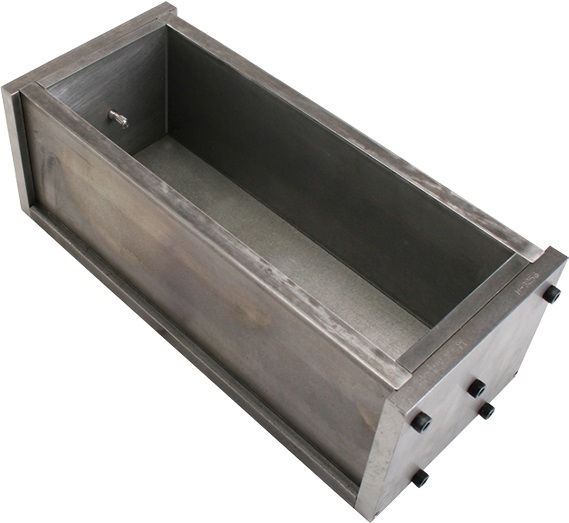

One Gang Cement Prism Mould, 4″ x 4″ x 10 ″
STANDARDS: ASTM C1260, ASTM C151, ASTM C157, ASTM C227, ASTM C342, ASTM C441,ASTM C452, ASTM C490, ASTM C596
One Gang Cement Prism Mould, 4 x 4 x 10 inch (102 x 102 x 254 mm) is designed to produce required 10″ effective gauge length, prism test bars.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PK – PM04 | One Gang Cement Prism Mould, 4″ x 4″ x 10 ″ (102 x 102 x 254 mm) |
One Gang Cement Prism Mould, 4 ″ x 4 ″ x 10 ″ ( inch )
STANDARDS: ASTM C1260, ASTM C151, ASTM C157, ASTM C227, ASTM C342, ASTM C441,ASTM C452, ASTM C490, ASTM C596
One Gang Cement Prism Mould, 4 x 4 x 10 inch (102 x 102 x 254 mm) is designed to produce required 10″ effective gauge length, prism test bars.
Testing applications include potential alkali reactivity, expansion, and volume, length, and linear change.
Moulds feature removable partitions, base and end plates.
Effective gauge length is measured from inside end of the studs.
Features
Made of steel
Suited for testing different types of concrete material
All moulds surfaces are protected with anti-corrosion oil
4 x 4 x 10 inch (102 x 102 x 254 mm)
Moulds produce cement prism specimens 11.25″ long.
Including studs, outside to outside length of specimen is 11.625″.
