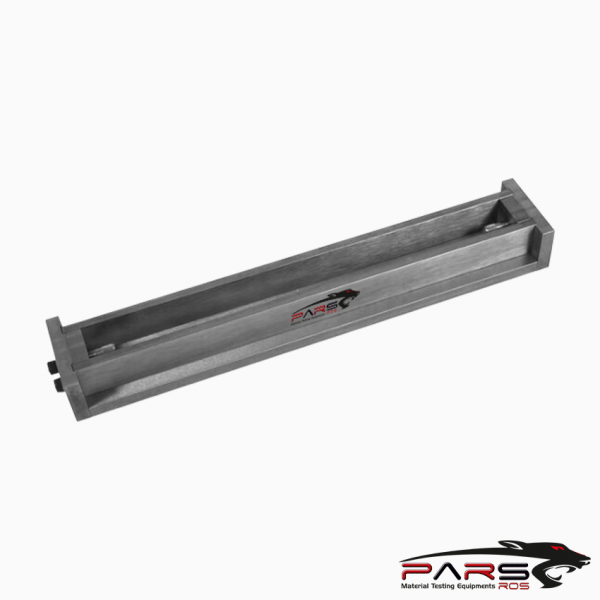

One Gang Cement Prism Mould, 1″ x 1″ x 10 ″
STANDARDS: ASTM C227 , ASTM C1260 , ASTM C1012/1012M , ASTM C151/151M , ASTM C157/157M , ASTM C490/490M , AASHTO R 70M/R 70 , AASHTO T 107M/T 107
Cement Prism Mould,( One Gang ) 1 x 1 x 10 in (25 x 25 x 254 mm) 10in effective gauge length prism test bars.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PK – PM01 | One Gang Cement Prism Mould, 1″ x 1″ x 10 ″ (25 x 25 x 254 mm) |
One Gang Cement Prism Mould 1 x 1 x 10 ” ( inch )
STANDARDS: ASTM C227 , ASTM C1260 , ASTM C1012/1012M , ASTM C151/151M , ASTM C157/157M , ASTM C490/490M , AASHTO R 70M/R 70 , AASHTO T 107M/T 107
Cement Prism Mould,( One Gang ) 1 x 1 x 10 in (25 x 25 x 254 mm) 10in effective gauge length prism test bars.
Testing applications include potential alkali reactivity, expansion, and volume, length, and linear change.
It is also used with a Length Comparator to measure Portland cement paste, mortar, and concrete prism samples.
The mold has a base plate, removable partitions and end plates constructed of corrosion-resistant steel to provide required length of 10in (254mm) between ends of
Gage Studs cast in ends of bars.
Features
Made of steel
Suited for testing different types of concrete material
One Gang – 1 x 1 x 10 in (25 x 25 x 254 mm)
Dimensions from outside end of gage studs are 11.625in (296mm) with specimen cross sections of 1x1in (25x25mm).
