Marshall / CBR / Proctor Specimen Extruder
STANDARDS : EN 13286-2, 13286-47, 12697-30; AASHTO T134, T180, T193, T245; ASTM D698, D1557, D1883, D1559; BS 1377-4, 1924-2, 598-107
Specimen Extruder is designed to easily extrude specimens from marshall and CBR, standard and modified proctor moulds.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-SMCPSE35 |
Marshall / CBR / Proctor Specimen Extruder,50 kN Capacity |

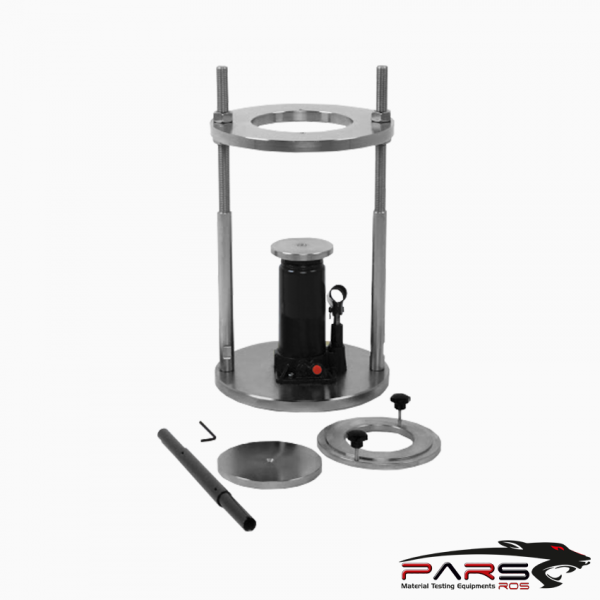

Marshall / CBR / Proctor Specimen Extruder
STANDARDS : EN 13286-2, 13286-47, 12697-30; AASHTO T134, T180, T193, T245; ASTM D698, D1557, D1883, D1559; BS 1377-4, 1924-2, 598-107
Marshall / CBR / Proctor Specimen Extruder is designed to easily extrude specimens from marshall and CBR, standard and modified proctor moulds.
The capacity of the extruder is 50 kN and is supplied complete with a manual hydraulic jack and 2 pcs. adaptor to extrude specimens from Ø100 mm (4”) and
Ø150 mm (6”) dia. proctor, CBR and marshall molds.
| Ram Travel | 130 mm |
| Screw Travel | 90 mm |
| Dimensions | 280x280x520 mm |
| Weight (approx.) | 28 kg |
