Dynamic Cone Penetrometer

Dynamic Cone Penetrometer

STANDARDS : BS 1377:9

The PRS-SDYCP Dynamic Cone Penetrometer is used for the rapid, in situ measurement of structural properties of existing road pavement constructed with

unbound materials.

Please Contact With Us For More Information

Description

Product Code Product Description
PRS-SDYCP Dynamic Cone Penetrometer



Dynamic Cone Penetrometer

STANDARDS : BS 1377:9

The PRS-SDYCP Dynamic Cone Penetrometer is used for the rapid, in situ measurement of structural properties of existing road pavement constructed with

unbound materials.

it incorporates an 8 kg weight dropping through a height of 575 mm and 60° cone having a diameter of 20 mm. with the standard DCP measurements can be made

down to a depth of approximately 850 mm or when extension shafts are used to a recommended maximum depth of 2 m.

Readings are usually taken after a set number of blows, changing the number according to the strength of the layer being penetrated.

A typical test takes only a few minutes, therefore the instrument provides a very efficient method of obtaining information that would normally require the digging of

test pits.

The penetration hammer assembly consists of 8 kg hammer, hammer shaft, anvil with plastic plate coupling for ruler and handle.

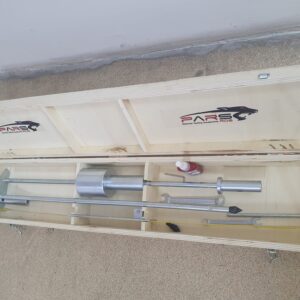

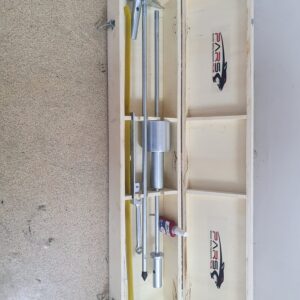

*** Dynamic Cone Penetrometer is supplied complete with;

A hammer assembly,

Penetration rod,

2 piece 60° cone,

Metal plate coupling for ruler,

Segmented adaptor for extension rods,

Segmented upper extension rod,

Segmented lower extension rod,

2 piece 13-17mm AF spanners,

3mm AF hex wrench,

Tommy bar,

A bottle of adhesive,10cc,

Steel ruler,

Carrying Case, heavy-duty wooden

Reviews

There are no reviews yet.


Be the first to review “Dynamic Cone Penetrometer”

Dimensions 1200x350x200 mm
Weight (approx.) 30 kg
