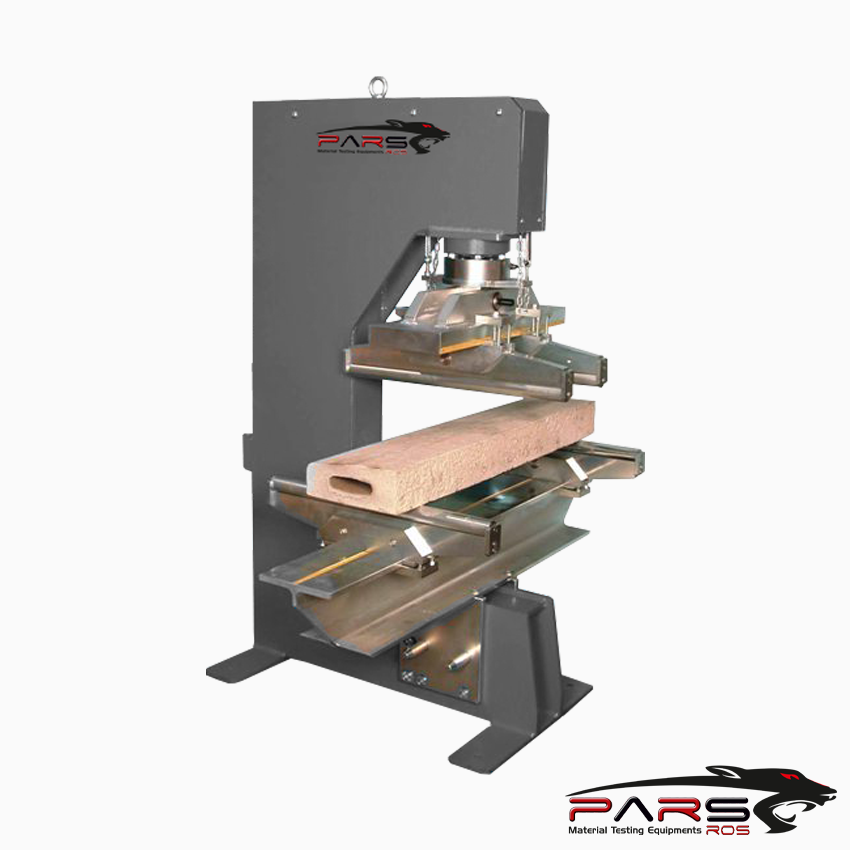

Automatic Concrete Flexural Testing Machine , C Type

The Parsros Automatic Concrete Flexural Testing Machine C Type  is designed for minimum deflection at maximum load resulting in very high accuracy.

The load frame is a welded steel fabrication carrying the ram fitted to the upper crosshead.

Please Contact With Us For More Information

Description

Product Code Product Description
PRS-CM6324 Automatic Concrete Flexural Testing Machine , C Type  300 kN



Automatic Concrete Flexural Testing Machine , C Type

STANDARDS : TS EN 1338, 1339, 1340, 1341, 1343, 13748-1, 13748-2, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C49 EN 1338, 1339, 1340, 1341, 1343,

13748-1, 13748-2, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496

The Parsros Automatic Concrete Flexural Testing Machine C Type  is designed for minimum deflection at maximum load resulting in very high accuracy.

The load frame is a welded steel fabrication carrying the ram fitted to the upper crosshead.

The frame has a single acting down stroking ram with over travel switch protection to shut the machine down when maximum ram travel is reached.

The return of the ram is done by dead weight or spring to get maximum accuracy on the load measurement. A load cell is used for load measurements on all frames.

Parsros Automatic Flexural Testing Machine C Type is designed to accept all accessories required for flexural, trans­verse or compression tests.

Parsros Automatic Flexural Testing Machine C Type  open structure designed to allow easy and practical front loading of the specimen.

The very rigid C type design is ideal either for conventional flexural test or for more sophisticated tests such as deformability and ductility index.

The load frame provides the stability needed for accurate and repeatable test re­sults over the years of operation.

*** Flextural test assemblies should be ordered seperately .


FEATURES

The main characteristics are:

High stability welded assembly

Safety limit switch for 100 or 120 mm piston stroke

High accuracy load measurement with strain gauge load cells

Can accept wide range of accessories for mentioned standards

Capacity 300 kN
Ram Travel 120 mm
Max. Vertical Clearance 425 mm (without accessories)
Max. Horizontal Clearance 640 mm
Max. Clerance Between  Lower Rollers 900 mm
The Distance Between The Center of The Piston to The Side of The Frame 320 mm
Overall Dimensions 1100x900x1250 mm
Weight (approx.) 555 kg
