Vibratory Compactor Test Set
STANDARDS: EN 13286-4; BS 1377:4 / EN 12697-9, 12697-10, 12697-32
Vibratory Compactor Set is used to prepare the test specimens of road base and sub base materials by using the vibratory compaction technique.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-SVCOMTS30 | Vibratory Compactor Set, 220-240 V 50 Hz |
| PRS-SVCOMTS50 | CBR Type Mould BS (modified proctor) Vibrating Hammer Mould EN |
| PRS-SVCOMTS68 | C Spanner 2 pcs |
| PRS-SVCOMTS70 | Assembly Tool for Base Plate |
Vibratory Compactor Test Set
STANDARDS: EN 13286-4; BS 1377:4 / EN 12697-9, 12697-10, 12697-32
Vibratory Compactor Test Set is used to prepare the test specimens of road base and sub base materials by using the vibratory compaction technique.
The specimens prepared from road base and sub base materials is used for the proctor and CBR tests.
The set is also used for preparing the test specimens of bituminous mixtures
*** PRS-SVCOMTS50 mould with base plate and extension collar should be ordered separately and also when ordering PRS- SVCOMTS50 , PRS-SVCOMTS68 and
PRS-SVCOMTS70 should be ordered separately for assembling and dissambling.

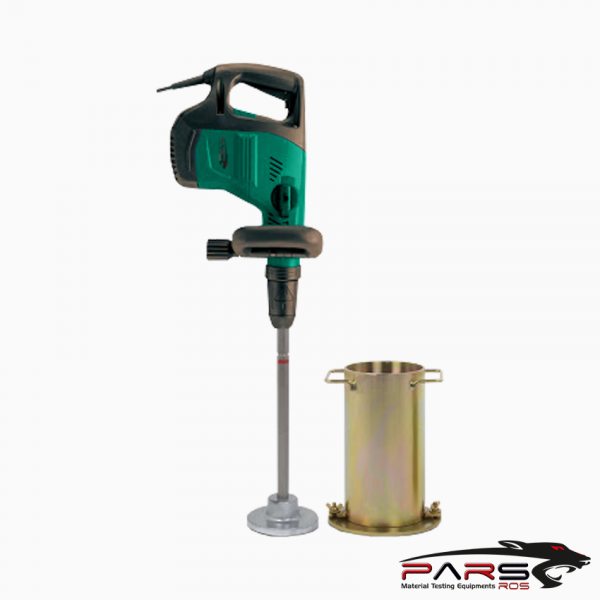

*** The Vibratory Compactor Set is supplied complete with;
Vibrating Hammer
Supporting Frame
Small Tamping Foot, 102 mm dia.
Large Tamping Foot, 146 mm dia.
Shank, 300 mm
| Dimensions | 510x300x1120 mm |
| Weight (approx.) | 75 kg (complete set) |
| Power | 1150 W (vibrating hammer) |
