Hydraulic Specimen Extruder

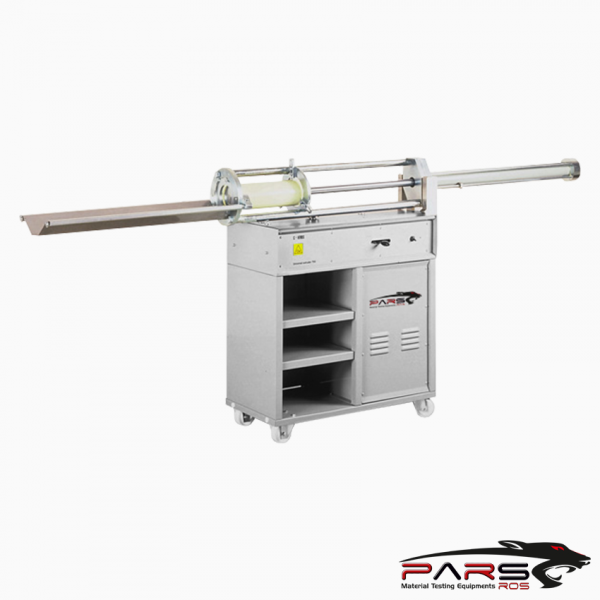

Motorized Hydraulic Specimen Extruder,Horizontal Type, 60 kN

STANDARDS : TS EN 13286-2, 13286-47, 12697-30; AASHTO T134, T180, T193, T245; ASTM D698, D1557, D1883, D1559; BS 1377-4, 1924-2, 598-107

Motorized Specimen Extruder, Horizontal Type,  is designed for extruding specimens from 50 mm (2”)  to 125 mm(5”)  (outer dia.) shelby sample tubes

and moulds such as proctor, CBR and marshall moulds .

Please Contact With Us For More Information

Description

Product Code

Product Description

PRS-SMHNC-1

Motorized Hydraulic Specimen Extruder,Horizontal Type, 60 kN



Motorized Hydraulic Specimen Extruder,Horizontal Type, 60 kN

STANDARDS : TS EN 13286-2, 13286-47, 12697-30; AASHTO T134, T180, T193, T245; ASTM D698, D1557, D1883, D1559; BS 1377-4, 1924-2, 598-107

Motorized  Hydraulic Specimen Extruder, Horizontal Type,  is designed for extruding specimens from 50 mm (2”)  to 125 mm(5”)  (outer dia.) shelby sample tubes

and moulds such as proctor, CBR and marshall moulds .

The machine is  useful for sampling and removing uniaxial and triaxial test specimens to/from the cutters inner dia. from 38mm to 100mm.

It has 60 kN capacity and 900 mm ram travel.

The hydraulic piston can be stopped at any position during the extraction.

To remove the sample from the shelby tubes, adapter sets of different sizes in the table below should be ordered separately.


*** Motorized  Specimen Extruder is supplied complete with ;

Adapter sets  for Ø100 mm (4”) and Ø150 mm (6”) inner dia. moulds

Flanges and heads sets for Ø38mm, Ø50mm, Ø70 mm and 100mm (only flange) inner dia. cutters.

Reviews

There are no reviews yet.


Be the first to review “Motorized Hydraulic Specimen Extruder,Horizontal Type, 60 kN”

Weight ( Approx. ) 200 kg
Power 750 W
