Micro-Deval Test Machine , ASTM
STANDARDS : ASTM D6928, D7428; AASHTO T327
Micro Deval Test Machine is used to determine the resistance to wear of aggregates.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-AMDA0400/A | Micro-Deval Test Machine ,ASTM, 220-240 V 50 Hz |
| PRS-AMDA0421/A | Stainless Steel Drum |
| PRS-AMDA0423/A | Micro-Deval Abrasion Charges,ASTM,Ø9,5 mm, 2 pcs. of 6 kg packed |

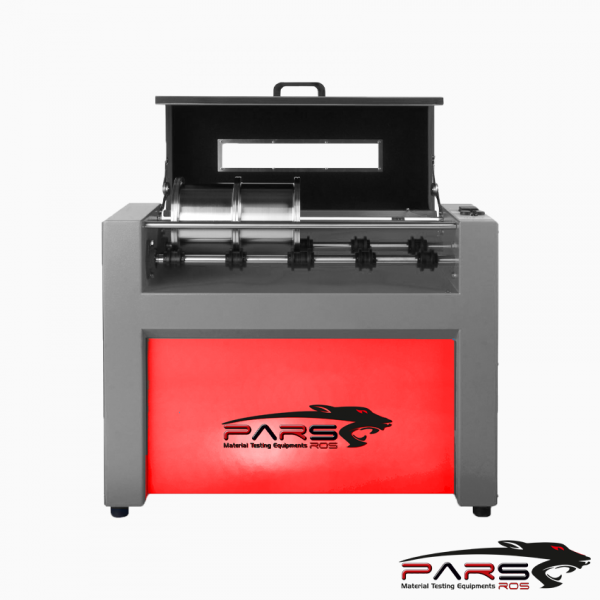

Micro-Deval Test Machine , ASTM
STANDARDS : ASTM D6928, D7428; AASHTO T327
Micro – Deval Testing Machine is used to determine the resistance to wear of aggregates.

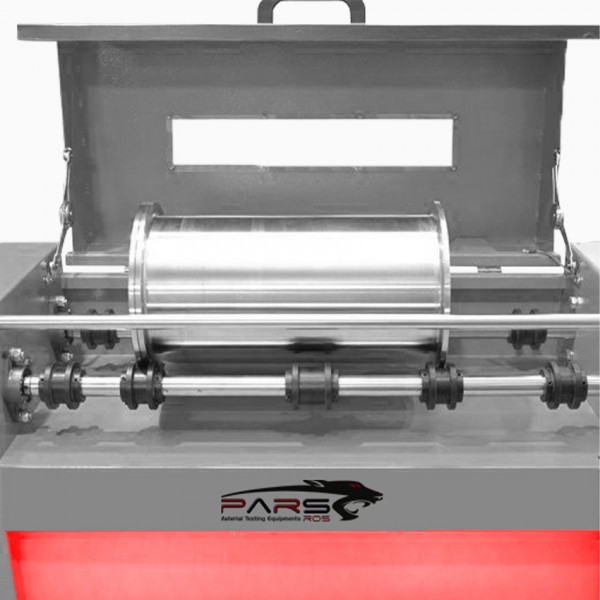

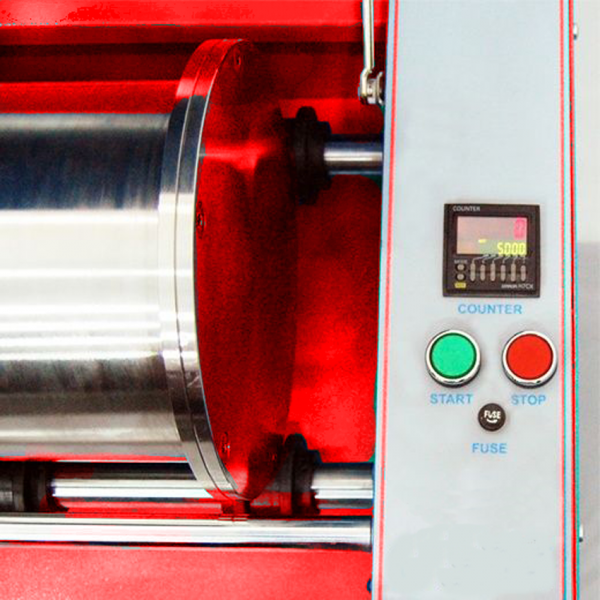

The machine consists of a steel frame, two stainless steel jar stainless steel spheres (2 pcs) and an automatic digital counter which allows machine to stop
automatically at the preset number of revolutions.
Stainless steel drums are rotating at a speed of 100 ± 5 r.p.m.
*** 1,18 mm sieve should be ordered separately.
*** Micro-Deval Test Machine is supplied complete with;
Stainless Steel Jar, ASTM, 2 pcs.
Abrasion Charges, ASTM, Ø9,5 mm, 2 pcs. of 6 kg packed
| Dimensions | 450x1260x980 mm |
| Weight (approx.) | 105kg |
| Power | 550 W |
