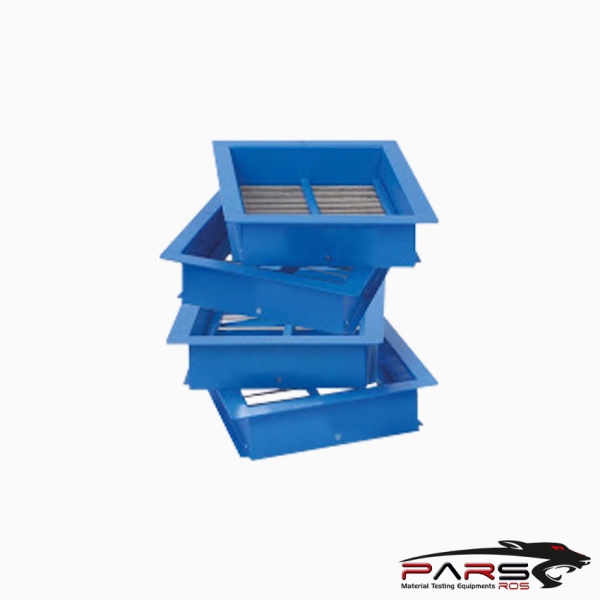

Grid Sieve Sets (Flakiness Index Sieve EN)
STANDARDS : EN 933-3; NF P18-561; UNI 8520-18; NLT 354
Grid Sieve Set is used for the determination of the flakiness index of the aggregate.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-AGSS80 | Grid Sieve Set (Flakiness Index Sieve Set EN ) |
| PRS-AGSS81 | Grid Sieve (Flakiness Index Sieve EN) 2.5 mm |
| PRS-AGSS82 | Grid Sieve (Flakiness Index Sieve EN) 3.15 mm |
| PRS-AGSS83 | Grid Sieve (Flakiness Index Sieve EN) 4 mm |
| PRS-AGSS84 | Grid Sieve (Flakiness Index Sieve EN) 5 mm |
| PRS-AGSS85 | Grid Sieve (Flakiness Index Sieve EN) 6.3 mm |
| PRS-AGSS86 | Grid Sieve (Flakiness Index Sieve EN) 8 mm |
| PRS-AGSS87 | Grid Sieve (Flakiness Index Sieve EN) 10 mm |
| PRS-AGSS88 | Grid Sieve (Flakiness Index Sieve EN) 12.5 mm |
| PRS-AGSS89 | Grid Sieve (Flakiness Index Sieve EN) 16 mm |
| PRS-AGSS90 | Grid Sieve (Flakiness Index Sieve EN) 20 mm |
| PRS-AGSS91 | Grid Sieve (Flakiness Index Sieve EN) 25 mm |
| PRS-AGSS92 | Grid Sieve (Flakiness Index Sieve EN) 31.5 mm |
| PRS-AGSS93 | Grid Sieve (Flakiness Index Sieve EN) 40 mm |
| PRS-AGSS94 | Grid Sieve (Flakiness Index Sieve EN) 50 mm |
Grid Sieve Sets (Flakiness Index Sieve EN)
STANDARDS : EN 933-3; NF P18-561; UNI 8520-18; NLT 354
Grid Sieve Set is used for the determination of the flakiness index of the aggregate.

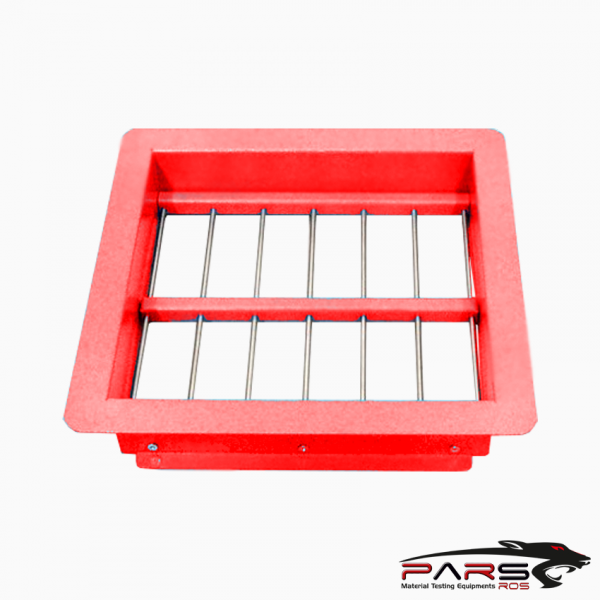

Consisting of an electrostatically painted frame and 5 mm diameter stainless steel bars with apertures state below.
*** For sample preperation 4.5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63, 80 and 100 mm aperture sizes test sieves
should be ordered seperately.
| Product Code | Aperture | Weight | Dimensions |
| PRS-A0321 | 2.5 mm | 3.3 kg | 340x320x80 mm |
| PRS-A0322 | 3.15 mm | 3.3 kg | 340x320x80 mm |
| PRS-A0323 | 4 mm | 3.8 kg | 340x320x80 mm |
| PRS-A0324 | 5 mm | 3.8 kg | 340x320x80 mm |
| PRS-A0325 | 6.3 mm | 3.7 kg | 340x320x80 mm |
| PRS-A0326 | 8 mm | 3.6 kg | 340x320x80 mm |
| PRS-A0327 | 10 mm | 3.4 kg | 340x320x80 mm |
| PRS-A0328 | 12.5 mm | 3.2 kg | 340x320x80 mm |
| PRS-A0329 | 16 mm | 4 kg | 340x320x80 mm |
| PRS-A0330 | 20 mm | 3.2 kg | 340x320x80 mm |
| PRS-A0331 | 25 mm | 3.2 kg | 340x320x80 mm |
| PRS-A0332 | 31.5 mm | 2.9 kg | 340x320x80 mm |
| PRS-A0333 | 40 mm | 2.7 kg | 340x320x80 mm |
| PRS-A0321 | 50 mm | 2.5 kg | 340x320x80 mm |
