ISO 14272 specifies specimen dimensions and a testing procedure for the cross tension testing of spot and projection welds.

Please Contact With Us For More Information

Category: Tags: , , ,

Description

ISO 14272 Resistance Welding — Destructive Testing of Welds

Specimen Dimensions and Procedure for Cross Tension Testing of Resistance Spot and Embossed Projection Welds



ISO 14272 specifies specimen dimensions and a testing procedure for the cross tension testing of spot and projection welds in overlapping sheets in any metallic

material of thickness 0,5 mm to 3 mm, where the welds have a maximum diameter of 7√t (where t is the sheet thickness in mm).

The object of cross tension testing is to determine the tensile force that the test specimen can sustain.

*** Before conducting ISO 14272, it is important to read the entire specification. Standards can be obtained from appropriate standard authorities.

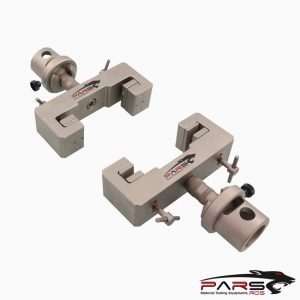

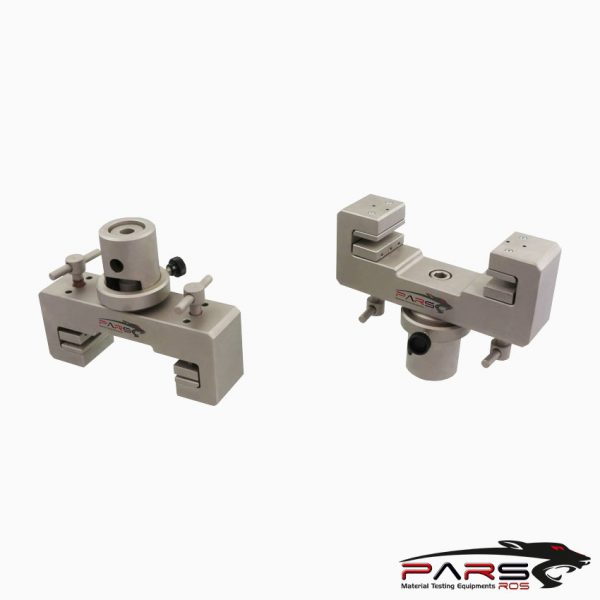

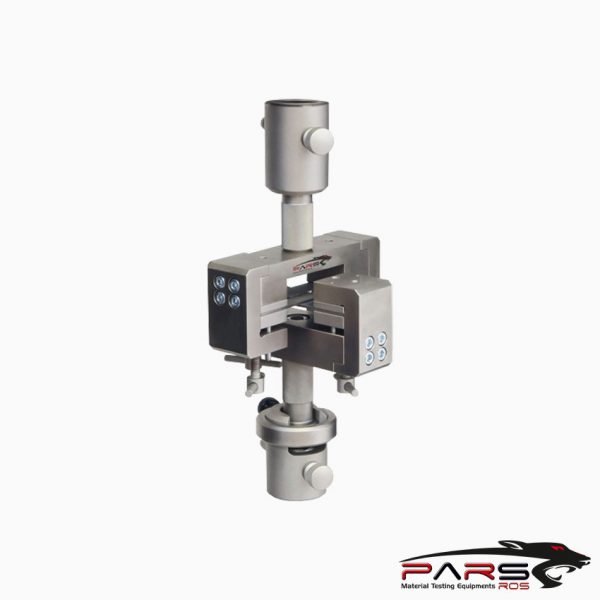

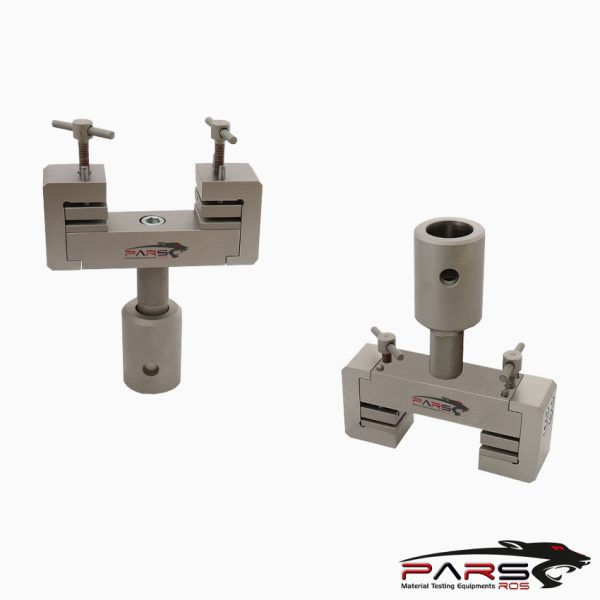

***PARSROS  offers several types of grips and fixtures which will enable you to perform a variety of tests

  that are accurate and repeatable.

Please Contact  with our engineers so that we can find and offer  Best Universal Tensile Test Machines , Grips , Jaws and Other Accessories for your operations
