IEC 61386-1 Test Fixture
IEC 61386-1 specifies requirements and tests for conduit systems, including conduits and conduit fittings
Please Contact With Us For More Information
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
IEC 61386-1 Conduit Systems for Electrical Installations
Part 1: General Requirements
IEC 61386-1 specifies requirements and tests for conduit systems, including conduits and conduit fittings, for the protection and management of insulated
conductors and/or cables in electrical installations or in communication systems up to 1000 V a.c. and/or 1500 V d.c.
This standard applies to metallic, non-metallic and composite conduit systems, including threaded and non-threaded entries which terminate the system.
This standard does not apply to enclosures and connecting boxes which come within the scope of IEC 670.

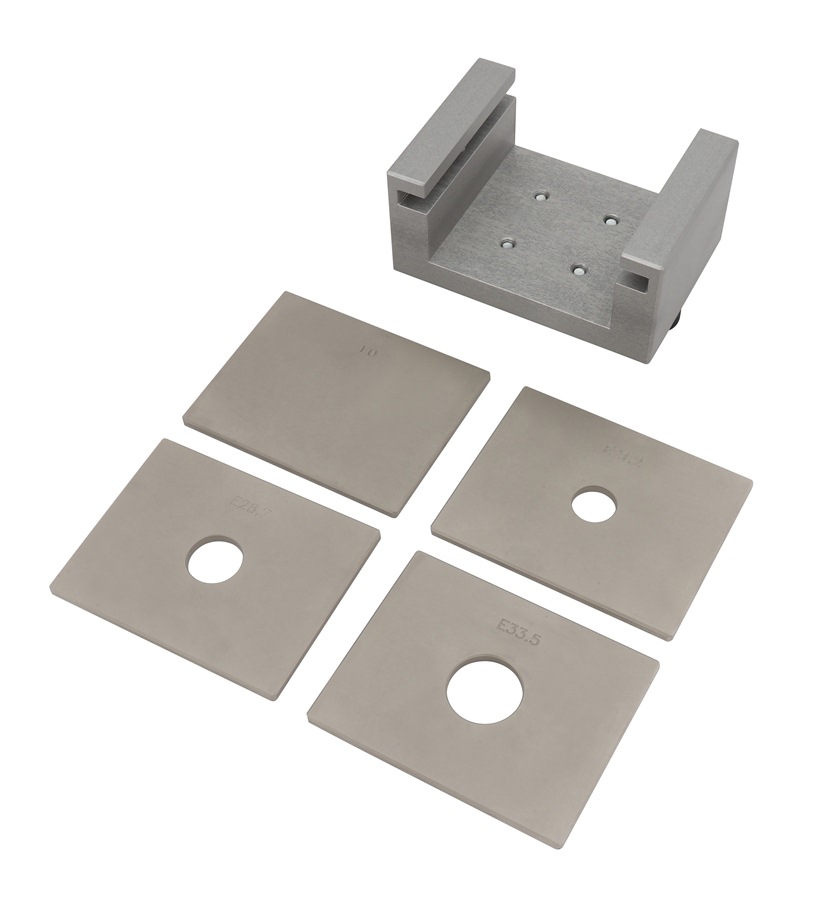

Tensile Test
Conduit systems declaring tensile strength shall be tested as follows:
A sample of conduit and two terminating fittings are assembled in accordance with the manufacturer’s instructions so that the overall length is approximately
300 mm.
The assembly is subjected to a continuously increasing tensile force over a period of 30 s to 40 s to the value specified in table 6. After 2 min ± 10 s the force
is removed.
Where elongation occurs, the manufacturer shall be responsible for providing guidelines to assist the safe installation of the conduit system.
For conduit systems where tensile strength is not declared, the tensile strength of the joint shall meet the requirements of the relevant tests of the
appropriate part 2.
After the test, the terminating fittings shall remain properly assembled to the conduit, and there shall be no damage visible to normal or corrected vision
without magnification.

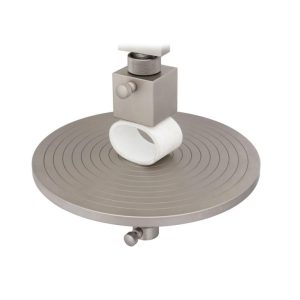

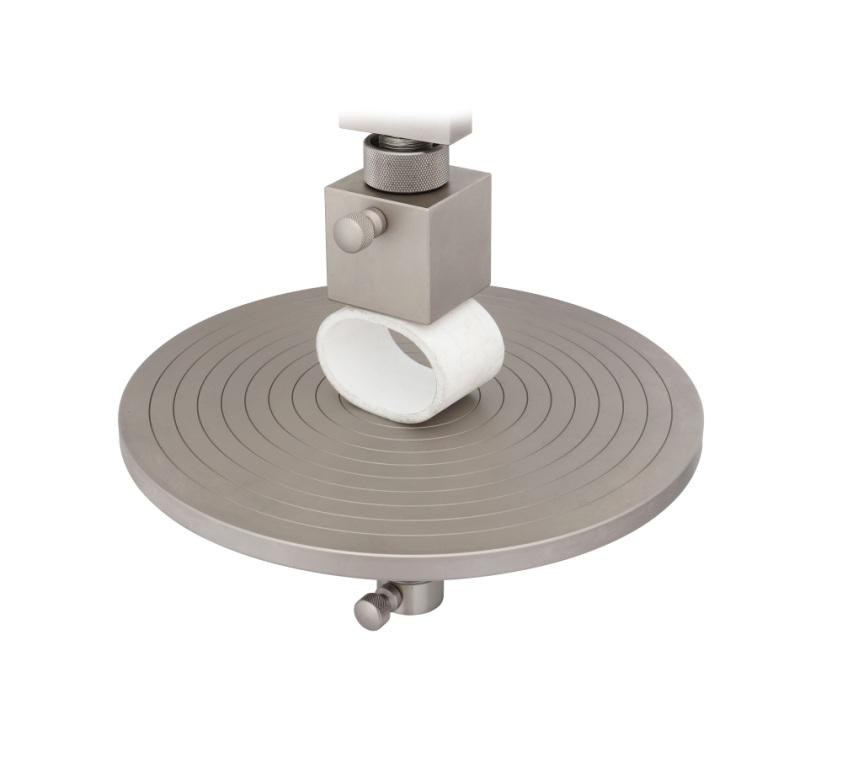

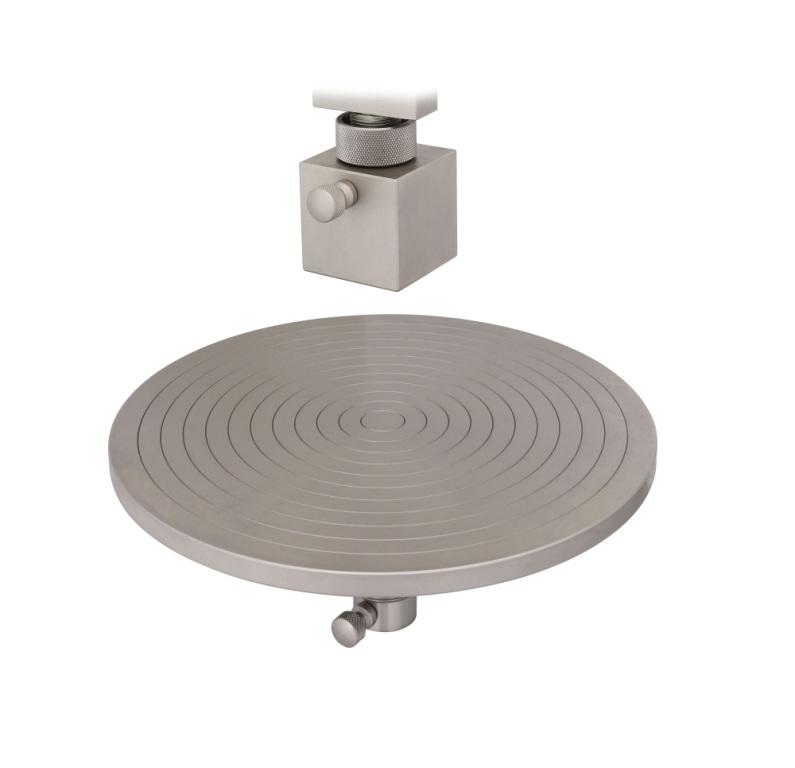

Compression Test
Samples of conduit, each (200 ± 5 ) mm long, shall be subjected to a compression test,
Before the test, the outside diameters of the samples shall be measured.
The samples shall be positioned on a flat steel support, and a steel intermediate piece
A continuously increasing compression force, reaching the values
After the force given has been applied for (60 ± 2 ) s, the outside diameter of the sample shall be measured where flattening has taken place,
without removing the force.
*** Before conducting IEC 61386-1 , it is important to read the entire specification. Standards can be obtained from appropriate standard authorities.
***PARSROS offers several types of grips and fixtures which will enable you to perform a variety of tests
that are accurate and repeatable.
