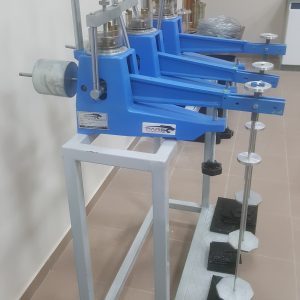

Consolidation Test Set

STANDARDS : BS 1377:5; ASTM D2435, D3877, D4546; AASHTO T216 CEN ISO/TS 17892-5

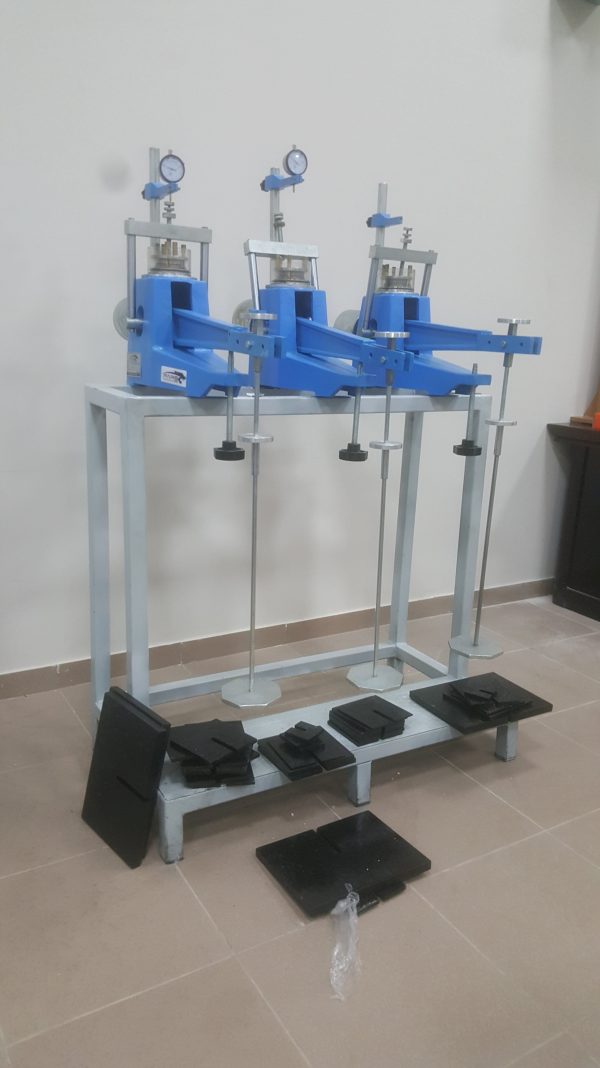

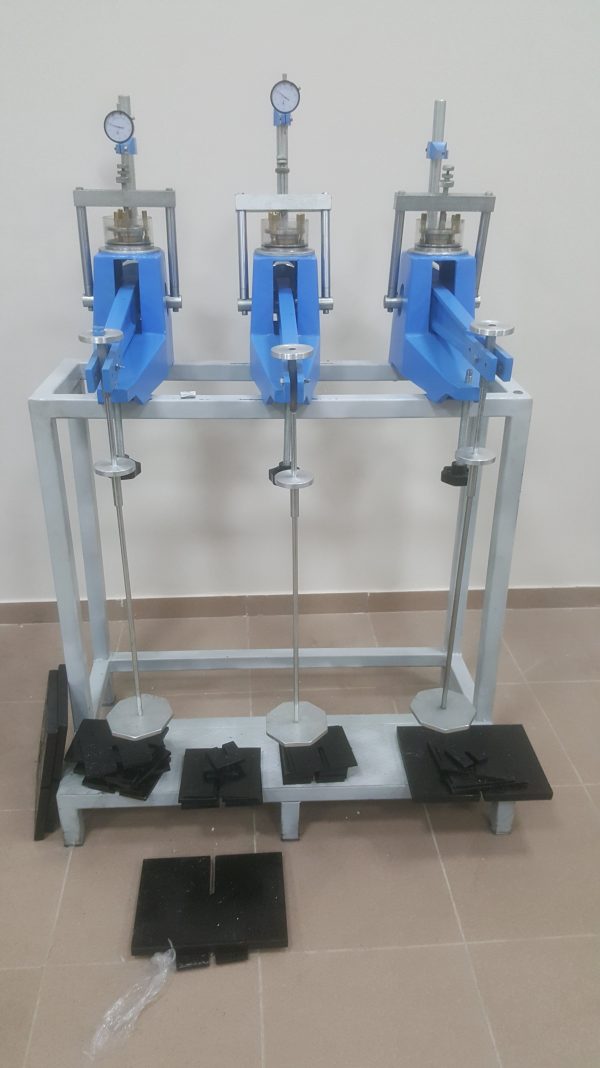

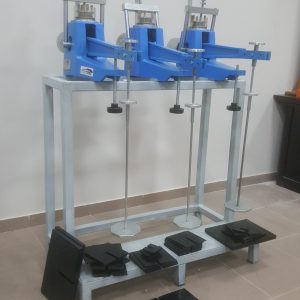

Consolidation Test Set ( Hig Pressure ) is complete with Front Loading Oedometer, Bench for 3 Consolidation Oedometer, Ø 50 mmConsolidation Cell,

10×0,01 mm Analog Dial Gauge and 64 Kg Set of Weights.

Please Contact With Us For More Information

Description

Product Code

Product Description

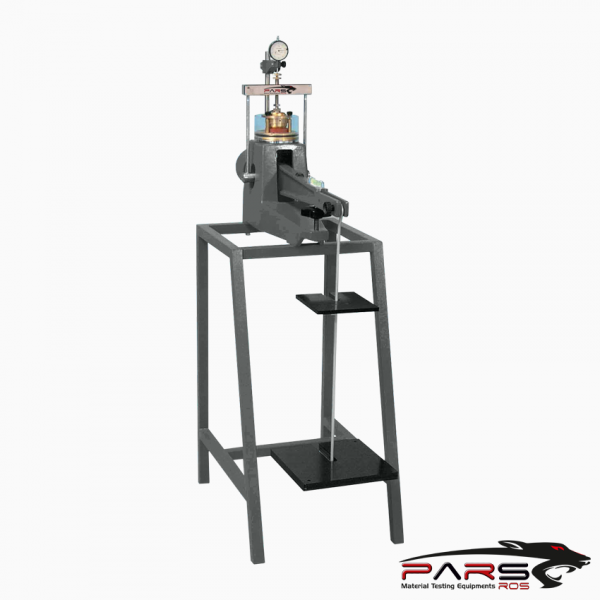

PRS-SCTDFL015 Consolidation Test Set Front Loading Oedometer
PRS-SCTDFL017 Bench for Consolidation, 3 Oedometer Capacity

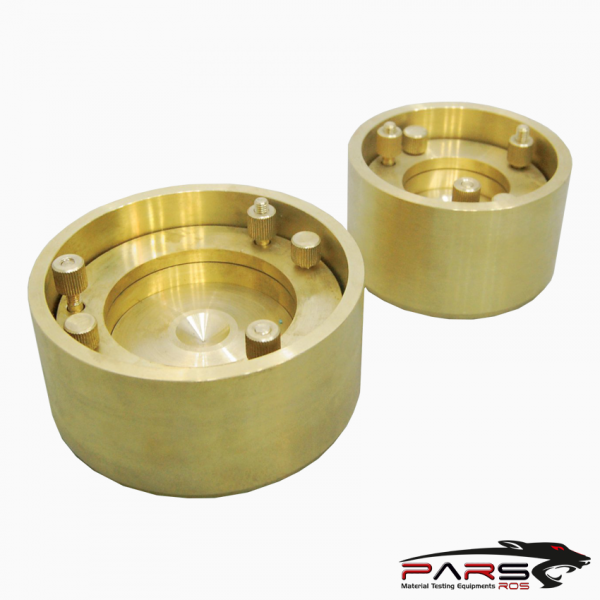

PRS-SCTDFL022 Consolidation Cell for High Pressure, Ø 50 mm
PRS-SCTDFL024 Consolidation Cell for High Pressure, ASTM Ø 63.5 mm (2.5”)
PRS-SCTDCC030 Consolidation Cell for High Pressure, BS/EN, Ø 75 mm
PRS-SCTDCC032 Calibration disc for Ø 50 mm consolidation cell , stainless steel
PRS-SCTDCC034 Calibration disc for Ø 63,5 mm consolidation cell , stainless steel
PRS-SCTDCC036 Calibration disc for Ø 75 mm consolidation cell , stainless steel
PRSGM-ADG8520 Analog Dial Gauge, 30×0.01 mm
PRSGM-ADG85222 Digital Dial Gauge 25×0.01 mm, LCD display
PRSGM-ADG8524 Digital Dial Gauge 12.7×0.001 mm, LCD display
PRSGM-ADG8526 Linear Potentiometric Displacement Transducer, 10×0,001mm
PRSGM-ADG8528 Linear Potentiometric Displacement Transducer, 25×0,001mm
PRSGM-ADG85234 High Accurate Strain Gauge Based Displacement Transducer, 10×0,001 mm
PRSGM-ADG8520 High Accurate Strain Gauge Based Displacement Transducer, 50×0,001 mm

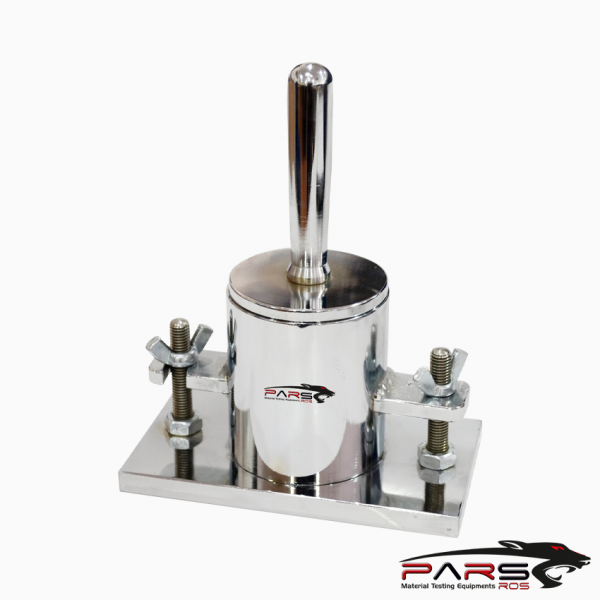

PRS-SCTDFL016 Apparatus for prepare Consolidation Sample,for Ø 50 mm. samples.
PRS-SCTDFL019 Apparatus for prepare Consolidation Sample, for Ø 63.5 mm. samples.
PRS-SCTDFL023 Apparatus for prepare Consolidation Sample, for Ø 75 mm samples.
PRS-SSDLOG Data Logger



Consolidation Test Set

STANDARDS : BS 1377:5; ASTM D2435, D3877, D4546; AASHTO T216 CEN ISO/TS 17892-5

Consolidation Test Set ( Hig Pressure ) is complete with Front Loading Oedometer, Bench for 3 Consolidation Oedometer, Ø 50 mmConsolidation Cell,

10×0,01 mm Analog Dial Gauge and 64 Kg Set of Weights.

The one-dimensional consolidation test of a soil sample enables to ascertain the settlement characteristic over a given period of time.

Loads are applied with progressive increases and the settlement values are read on a dial gauge.

Tests are carried out on specimensprepared from undisturbed samples.

Data obtained from these tests together with classification data and a knowledge of the soils loading history, enables estimates to be made of the behavior of

foundations under load.

The ASTM Consolidation Test Set is complete with Front Loading Oedometer, Bench for 3 Consolidation Oedometer, Ø 63,5 mmConsolidation Cell, 10×0,01 mm

Analog Dial Gauge and 64 Kg Set of Weights.

The BS/EN Consolidation Test Set is complete with Front Loading Oedometer, Bench for 3 Consolidation Oedometer, Ø 75 mmConsolidation Cell, 10×0,01 mm

Analog Dial Gauge and 80 Kg Set of Weights.


*** The other accessories are optional.

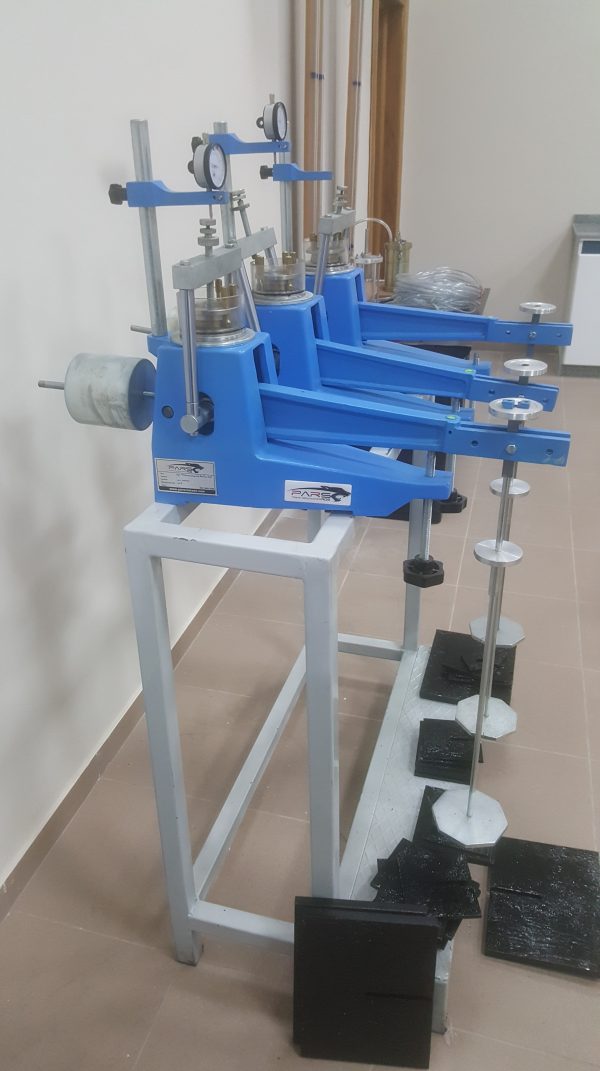

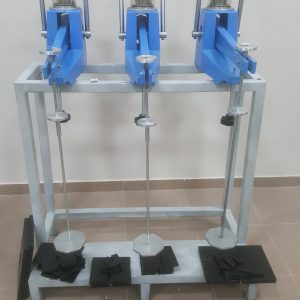

The Front Loading Oedometer is rigidly manufactured from aluminum alloy casting to provide a high degree of accuracy with any framedistortions under load.

The frame is designed to load the specimen through a lever arm assembly and one of three alternative beam ratios as 9:1, 10:1 and 11:1.

The beam is fitted with a counter balance weight and beam support jack. The cell platform will accept the complete range consolidation cells and is fitted with a

central spigot to ensure accurate centering of the cell under the loading.

The fixed ring Consolidation Cells are manufactured from corrosion resistant materials and conform to the requirements of the relevant standards.


*** Apparatus for prepare Consolidation Samples and Calibration Disc shoul be ordered separately.

**** Consolidation cell, dial gauge or displacement  transducer and data logger, bench, weights, apparatuses for prepare Consolidation samples

and calibration disc should be ordered separately.

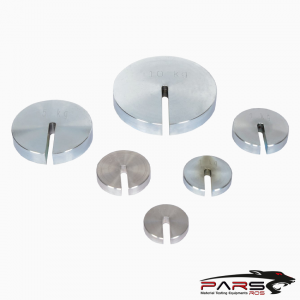

Sets of Weight for Consolidation

16 kgf Set (2) 5 kg, (1) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg
32 kgf Set (1) 10 kg, (3) 5 kg, (2) 2 kg, (1) 1 kg, (3) 0,5 kg, (2) 0,25 kg
50 kgf Set  (3) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg
64 kgf Set (4) 10 kg, (3) 5 kg, (2) 2 kg, (3) 1 kg, (3) 0,5 kg, (2) 0,25 kg
80 kgf Set (6) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg
