Aggregate Angularity Apparatus

Description

Product Code	Product Description
PRS-ACAAAPP	Coarse Aggregate Angularity Apparatus
PRS-AFAAAPP	Fine Aggregate Angularity Apparatus
PRS-AFAAAPP-SO	Fine Aggregate Angularity Apparatus w/ Strike-Off Guide
PRS-AFAAAPP-1	Glass Plate for Fine Aggregate Void Content
PRS-AFAAAPP-2	Measure for Fine Aggregate Void Content ,100 ml
PRS-AFAAAPP-3	Corrosion-Resistant, Stainless Steel Pan
PRS-AFAAAPP-4	Flat Edged Spatula
PRS-ACAAAPP-1	Coarse Aggregate Void Content Stainless
PRS-ACAAAPP-2	Coarse Aggregate Void Content Glass Plate
PRS-ACAAAPP-3	Steel Material Handling Pan
PRS-ACAAAPP-4	Galvanized Iron Pan



Aggregate Angularity Apparatus

STANDARDS : AASHTO T 304 , ASTM C1252

PRS-ACAAAPP Coarse Aggregate Angularity Apparatus measures uncompacted void content of coarse aggregate.

The testing apparatus is recommended to evaluate aggregates for Hot-Mix Asphalt (HMA) pavement.

Gradation and void content data provide an indication of angularity, sphericity and surface texture that can be related to permanent deformation and fatigue

cracking of asphalt.

---

Included Items

Coarse Aggregate Angularity Apparatus

Stainless Measure

Strike-off Bar

Glass Plate for calibration

Accessories

Coarse Aggregate Void Content Stainless Measure is easily secured to Apparatus stand for measuring during testing

Coarse Aggregate Void Content Glass Plate used in calibrating the stainless steel measure and available as replacement or additional plate

Steel Material Handling Pan for use weighing and loading coarse aggregate

Galvanized Iron Pan for collecting overflow content

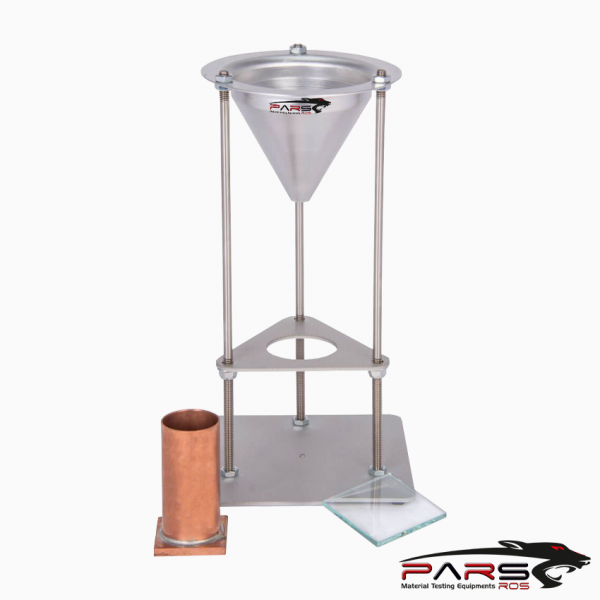

PRS-AFAAAPP  The Fine Aggregate Angularity Apparatus determines the uncompacted void content of fine aggregates to determine angularity

and sphericity properties that affect workability of mix designs.

PRS-AFAAAPP Includes a 100ml copper Cylindrical Measure, Funnel with specified hopper, Funnel Stand and a Glass Plate for calibration.

PRS-AFAAAPP-SO features a strike-off guide for exact alignment of the spatula blade to the top of the Cylindrical Measure.

This has been experimentally shown to improve repeatability of test results between operators as well as laboratories.

A 100ml copper Cylindrical Measure, specified Funnel, Funnel Stand and a Glass Plate for calibration are included.

---

Included Items

Fine Aggregate Angularity Apparatus

100ml copper Cylindrical Measure Funnel

Funnel Stand

Glass Plate for calibration

---

Accessories

Corrosion-Resistant, Stainless Steel Pan meets ASTM and AASHTO Uncompacted Void Content of Fine Aggregate test methods

100ml Measure for Fine Aggregate Void Content for precise testing

Fine Aggregate Void Content Glass Plate calibrates void content measure

Flat Edged Spatula for striking off volumetric Measure

Product Code	PRS-AFAAAPP	PRS-ACAAAPP
Dimensions ( WxDxH )	205 x 205 x 368 mm	205 x 205 x 370 mm
Weight (Approx.)	2 kg	15 kg
