Automatic Cement Compression & Flexure Testing Machines

Description

Product  Code	Product Description
PRS-CEMACCTM	250 kN Automatic Cement Compression Testing Machine 220-240 V 50-60 Hz
PRS-CEMACCTM /110	250 kN Automatic Cement Compression Testing Machine 110 V 60 Hz
PRS-CEMACFCTM	15/250 kN Automatic Cement Flexure/Compression Testing Machine 220-240 V 50-60 Hz
PRS-CEMACFCTM /110	15/250 kN Automatic Cement Flexure/Compression Testing Machine 110 V 60 Hz
PRS-CEMULP	Upper Loading Platen with Ball Seating Assembly Ø:165 mm and Lower Loading Platen, Ø:165 mm
PRS-CEMFLEXJ/A	Flexure Jig Assembly to test 40x40x160 mm mortar prisms,ASTM
PRS-CEMFLEXJ /E	Flexure Jig Assembly to test 40x40x160 mm mortar prisms, EN
PRS-CEMCOMJ/A	Compression Jig Assembly to test 50 mm (2”) mortar cubes, ASTM
PRS-CEMCOMJ /E	Compression Jig Assembly to test portions of 40x40x160 mm mortar prisms, EN
PRS-CEMCOMJ/BS	Compression Jig Assembly BS, to test 70,7 mm mortar cubes



Automatic Cement Compression & Flexure Testing Machines

STANDARDS  : EN 196-1, 459-2, 1015-11, 13454-2; ASTM C109, C348, C349; BS 3892-1, 4551-1

Automatic Cement Compression & Flexure Testing Machines  have been designed for reliable and consistent testing of mortar samples.

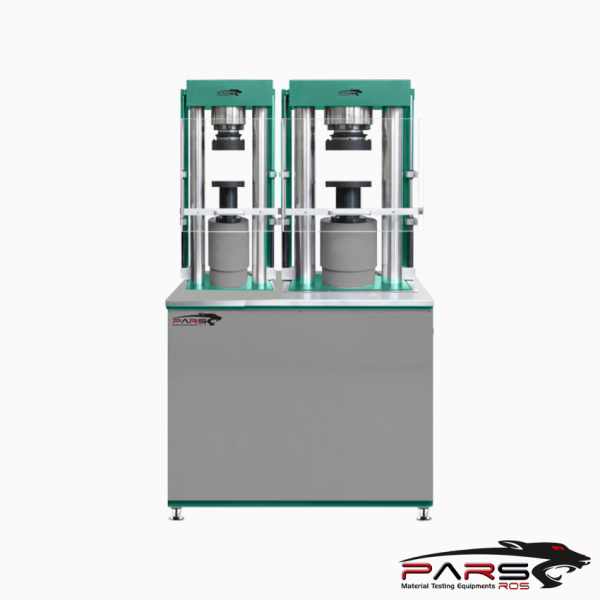

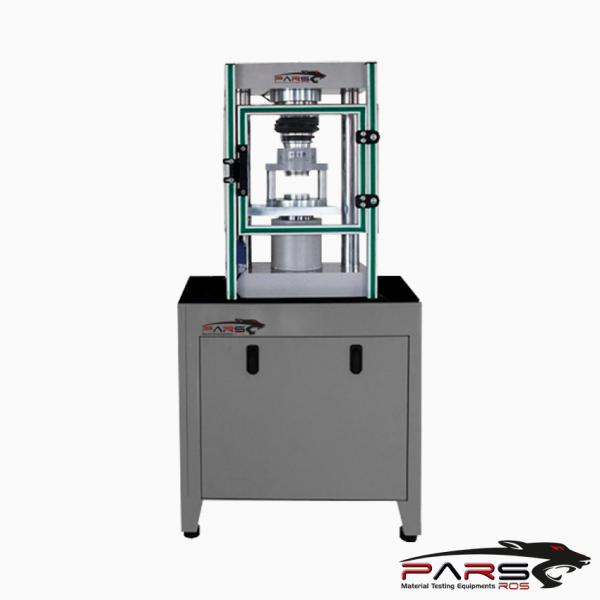

They havesingle testing chamber –  double testing chamber compression or just  flexure testing machines

Compression and flexture jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed)

should be ordered separately.

The Automatic cement compression and flexure testing machines allow less experienced operators to perform the tests. Once the machine

has been switched on and the specimen is positioned and centered by the help of centering apparatus. The only required operations are;

Setting test parameters, including pace rate  (only required when the specimen type is changed.)

Choosing the compression or flexure frame by using  the changeover valve.

Pressing the START button on the control unit.

The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.

Automatically saves the test parameters and test results.

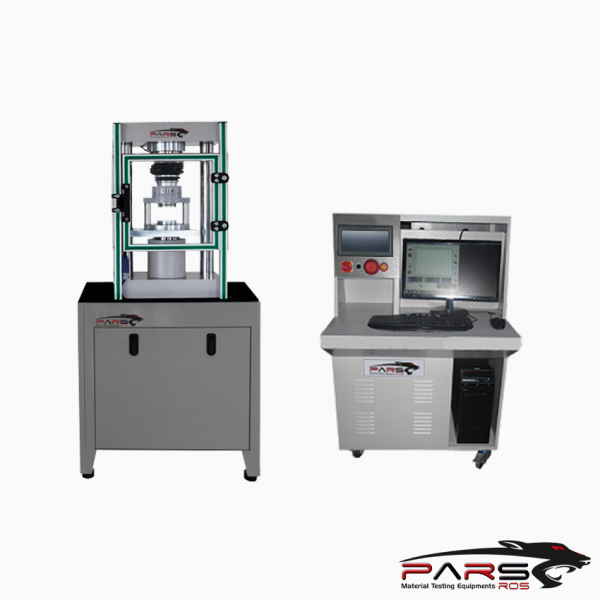

The automatic cement compression and flexure testing machines consist of very rigid two column single or double chamber frames,

automatic hydraulic power pack with data acquisition and control system

---

Power Pack

Automatic Hydraulic Power Pack, dual stage, controlled by  is designed to supply the required oil to the load frames for loading.

Very silent power pack can load the specimen between 50 N/sec to 2.4 kN/sec with an accuracy of ±5%.

A Rapid approach pump is supplied as standard. Safety valve (maximum pressure valve) is used to avoid machine overloading.

Product Code	PRS-CM6331	PRS-CM6431
Test Type	Compression	Flexure	Compression
Capacity	250 kN	15 kN	250 kN
Class 1 Measuring Range	2.5 to 250 kN	0.5 to 15 kN	2.5 to 250 kN
The roughness value for texture of loading and auxiliary platens	≤3.2 μm	≤3.2 μm	≤3.2 μm
Lower Platen Dimensions	165 mm	165 mm	165 mm
Upper Platen Dimensions	165 mm	165 mm	165 mm
Maximum Vertical Clearance Between Platens	263 mm	263 mm	263 mm
Piston Diameter	160 mm	80 mm	160 mm
Maximum Piston Movement	50 mm	50 mm	50 mm
Horizontal Clearance	300 mm	200 mm	300 mm
Power	750 W	750 W
Oil Capacity	20 L	20 L
Maximum Working Pressure	125 bar	30 bar	125 bar
Rapid Approach Rate	50 mm/min	80 mm/min	50 mm/min
Dimensions (WxLxH)	830x500x1650 mm	1050x500x1650 mm
Weight	265 kg	410 kg
